CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

I N S TA L L A T I O N I N S T R U C T I O N S

95-6544B

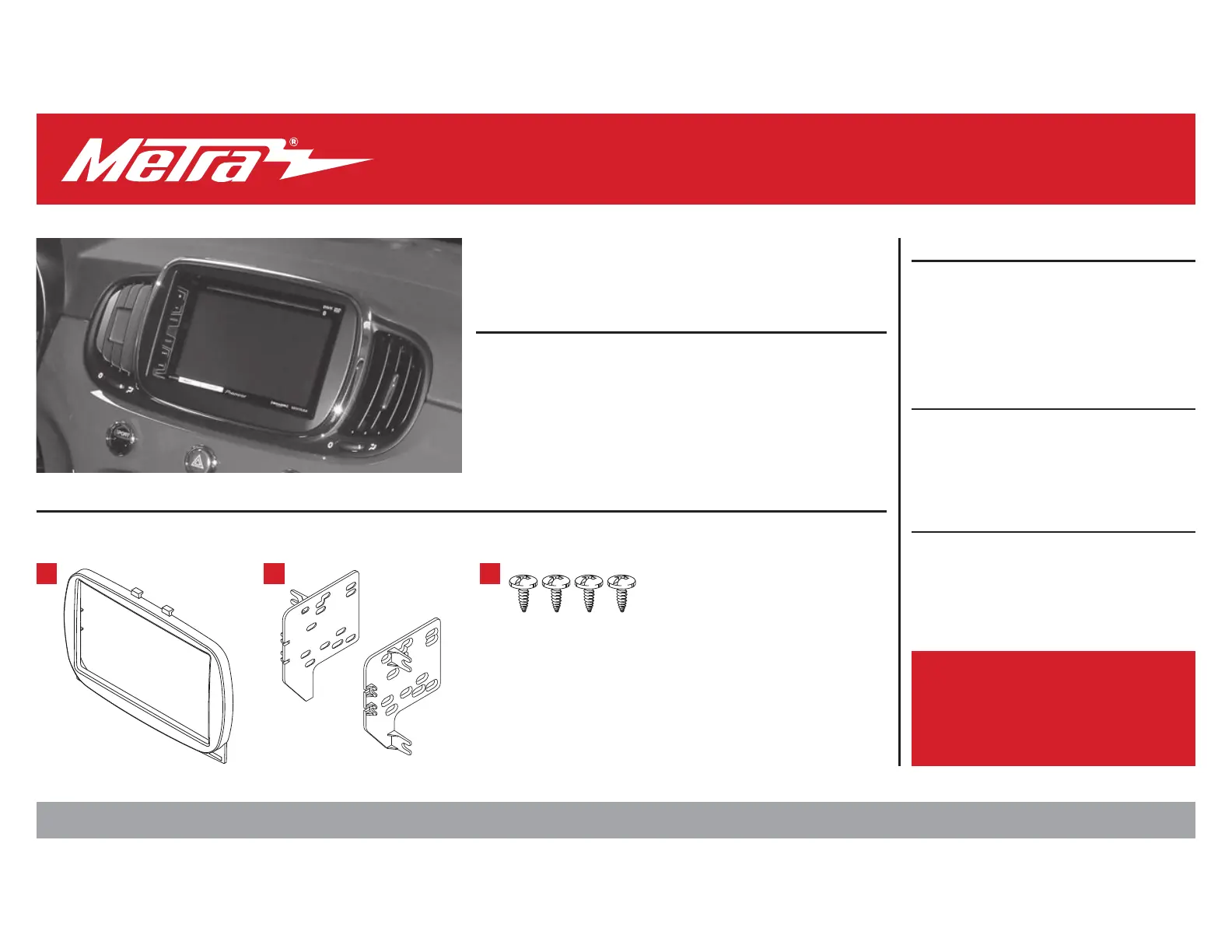

KIT FEATURES

• ISO DDIN radio provision

• Painted scratch resistant matte black

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) (4) #8 x 3/8” Phillips screws TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• T-25 Torx driver • Cutting tool

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation ....................................................... 3

Kit Assembly ..........................................................3

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: Please visit metraonline.com for

additional adapters and accessories.

Antenna Adapter: 40-EU55

A B C

Fiat 500 2016-up*

*Visit MetraOnline.com for up-to-date vehicle speciﬁc applications.

1.800.221.0932

MetraOnline.com

DASH DISASSEMBLY

1. Unsnap and remove the climate control

cover panel. (Figure A)

2. Remove (2) T-25 Torx screws and unclip

and remove the painted dash panel.

(Figures B,C)

(Figure A) (Figure D)

(Figure B) (Figure E)

(Figure C) (Figure F)

3. Remove (4) T-25 Torx from the radio trim

panel including vents and remove the

panel. (Figures D, E))

4. Remove (4) T-25 Torx to remove the

radio (Figure F)

Continue to Kit Preparation

REV. 10/5/2017 INST95-6544B 3

(Figure B)

(Figure A)

ISO-DDIN radio provision

1. Attach the

radio brackets

to the

radio

trim panel

using (4) #8 x 3/8” Phillips

screws supplied. (Figure A)

2. Slide the radio into the completed

assembly, and then secure it to the

assembly using screws supplied

with the radio (Figure B).

3. Locate the factory wiring harness and

antenna connector in the dash, and

complete all necessary connections to

the radio. Metra recommends using the

proper mating adapter from Metra

and/or AXXESS. Test the radio for

proper operation.

4. Reassemble the dash in reverse order

of disassembly.

KIT PREPARATION KIT ASSEMBLY

1. Cut and remove the shaded area from

the sub-dash to allow clearance for the

aftermarket radio. (Figure A)

Continue to Kit Assembly

(Figure A)

Remove

shaded area
