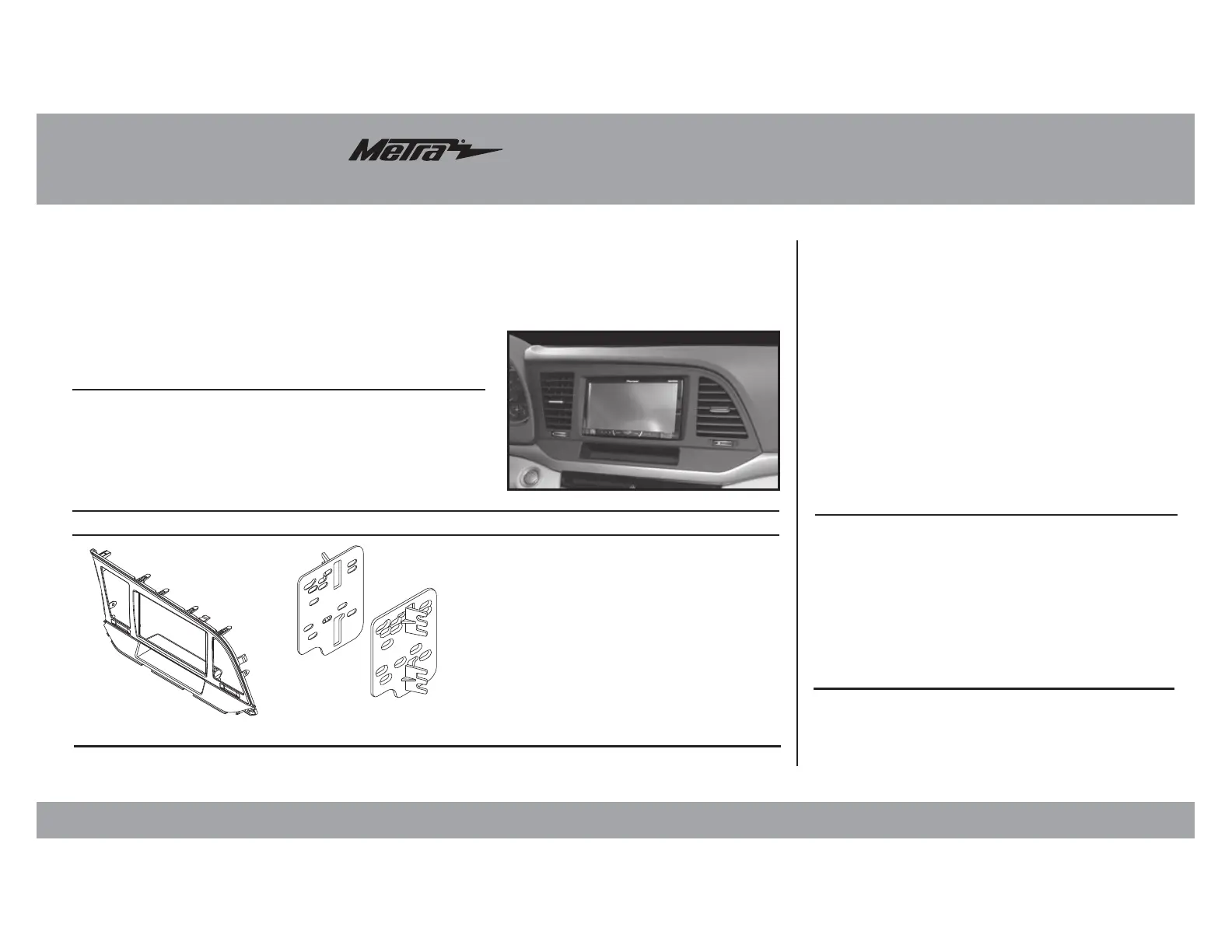

REV. 9/27/2016 INST95-7376B
INSTALLATION INSTRUCTIONS FOR PART 95-7376B
METRA – The World’s best kits.®metraonline.com © COPYRIGHT 2016 METRA ELECTRONICS CORPORATION
CAUTION!
All accessories, switches, climate controls panels,
and especially air bag indicator lights must be connected before
cycling the ignition. Also, do not remove the factory radio with
the key in the on position, or while the vehicle is running.
• ISO DDIN radio provision
• Painted matte black
• A) Radio trim panel • B) Radio brackets
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: 70-7304 (without 7-inch display radio) • 70-7306 (with 7-inch display radio)
Antenna Adapter: N/A (without 7-inch display radio) • 40-KI11 (with 7-inch display radio)
• Panel removal tool • Phillips screwdriver
TOOLS REQUIRED
Hyundai Elantra 2017-up
95-7376B
Table of Contents
A B
Dash Disassembly ................................................. 2
Kit Preparation ....................................................... 3
Kit Assembly
– ISO DDIN radio provision ...................................... 3
95-7376B
2
Dash Disassembly
1. Open the passenger front door,
then unclip and remove the trim
panel from the side of dashboard.
Remove the (1) Phillips screw
securing the silver trim panel.
2. Unclip and remove the silver
trim panel that runs along the
dashboard from under the radio,
and above the glovebox.
3. Open the driver’s door, then unclip
and remove the trim panel from
the side of the dashboard. Remove
the (1) Phillips screw securing the
silver trim panel.
4. Unclip and remove the silver trim
panel from under the driver’s side
A/C vent.
Please visit Metraonline.com for
dash disassembly illustrations.
5. Unclip the trim panel above the
steering column, and then unclip
and remove the entire panel
surrounding the instrument cluster.
Note, these two panels are one
assembly.
6. Remove the (2) Phillips screws
securing the radio trim panel, then
unclip and remove the panel.
7. Remove the (4) Phillips screws
securing the radio and then
remove.
Continue to Kit Assembly
95-7376B
3
Kit Preparation Kit Assembly
ISO DDIN radio provision
3. Attach the radio brackets to the
radio using the screws supplied
with the radio. (Figure A)
4. Locate the factory wiring harness
and antenna connector in the
dash and complete all necessary
connections to the radio. Metra
recommends using the proper
mating adapter from Metra and/or
AXXESS. Test the radio for proper
operation.
5. Secure the assembly into the dash
opening using the factory hardware.
6. Snap the radio trim panel over
the radio assembly, and then
reassemble the dash in reverse
order of disassembly.
1. Remove the (3) Phillips screws
securing the A/C vents to the radio
trim panel and then remove.
2. Secure the vents onto the radio
trim panel using the factory
hardware. Please visit Metraonline.com for
kit preparation illustrations.
(Figure A)
