REV. 2/10/2017 INST95-7378B

INSTALLATION INSTRUCTIONS FOR PART 95-7378B

CAUTION!

All accessories, switches, climate controls panels, and

especially air bag indicator lights must be connected before cycling

the ignition. Also, do not remove the factory radio with the key in the

on position, or while the vehicle is running.

• ISO DDIN radio provision

• Painted scratch resistant matte black

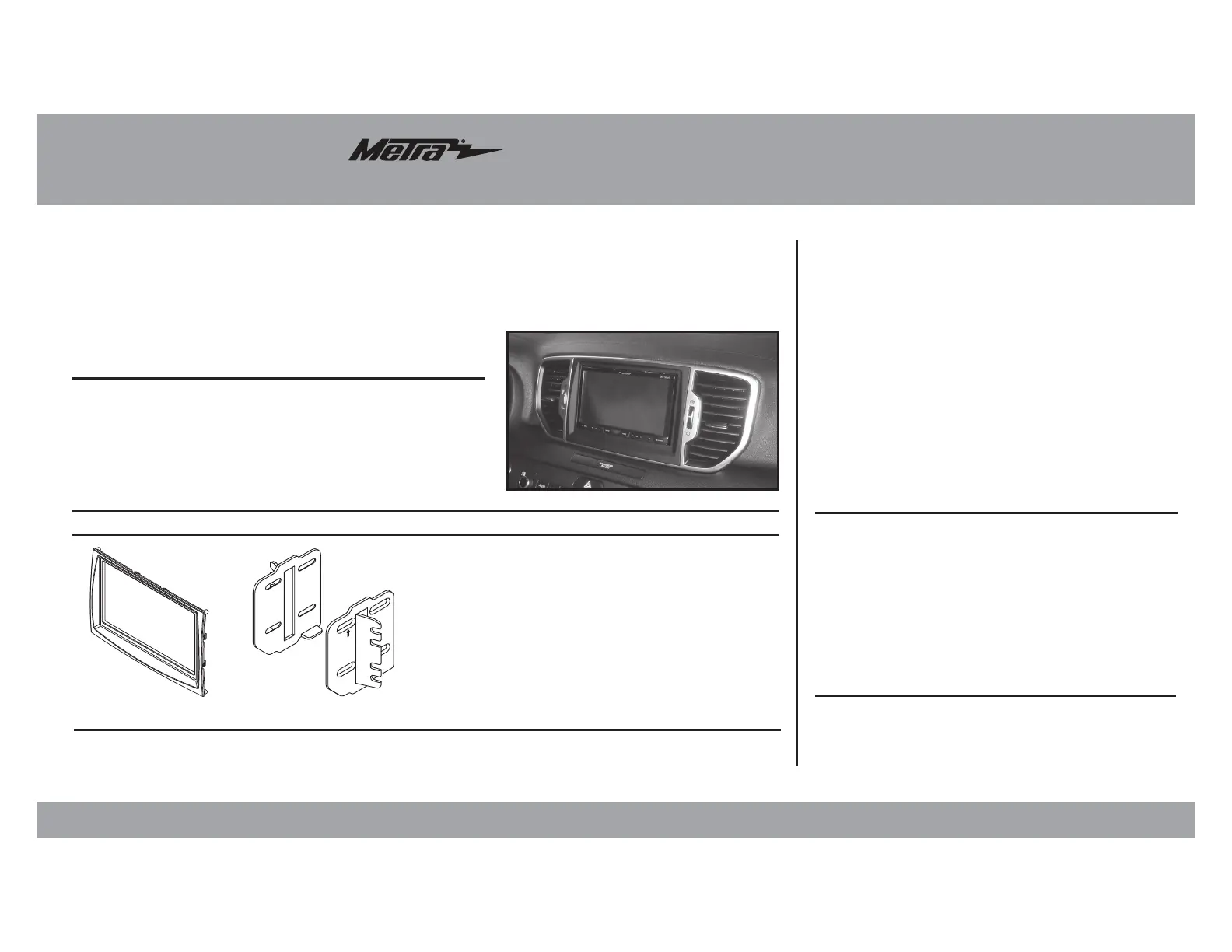

• A) Radio trim panel • B) Radio brackets

20;-,(;<9,:

20;*64765,5;:

>0905.(5;,55(*655,*;065: (sold separately)

Wire harness: • 70-7304

Antenna adapter: • 40-KI11

• Panel removal tool • Phillips screwdriver

• Torx screwdriver

;663:9,8<09,+

Kia Sportage 2017-up (with 5” screen)

95-7378B

Table of Contents

A B

Dash Disassembly ................................................. 2

Kit Preparation ....................................................... 3

Kit Assembly .......................................................... 3

95-7378B

Dash Disassembly

 Unclip and slide the top of the

center console (including the cup

holders) back slightly. (Figure A)

 Open the passenger door, and then

unclip and remove the dashboard

trim panel. Remove (1) Phillips

screw exposed. (Figure B)

 Unclip and remove the entire panel

that is above the glove box, and

below the radio. (Figure C)

 Remove (2) Phillips screws from

the radio/vent panel, and then

unclip and remove. (Figure D)

 Remove (4) Phillips screws

securing the radio, and then

unplug and remove.

Continue to Kit Preparation

(Figure A) (Figure C)

(Figure B) (Figure D)

95-7378B

Kit Assembly

ISO DDIN radio provision

1. Attach the radio brackets to the

radio using the screws supplied

with the radio. (Figure A)

2. Locate the factory wiring harness

and antenna connector in the

dash, and complete all necessary

connections to the radio. Metra

recommends using the proper

mating adapter from Metra and/or

AXXESS. Test the radio for proper

operation.

3. Secure the completed assembly

into the dash using the factory

hardware, and then reassemble

the dash in reverse order of

disassembly.

(Figure A)

Kit Preparation

From the factory radio/vent panel:

1. Remove (4) screws securing the inner radio trim panel to the panel, and then

unclip and remove. (Figure A)

2. Attach the 95-7378B radio trim panel to the factory radio/vent panel, and then

secure using the factory hardware. (Figure A)

Continue to Kit Assembly

REAR VIEW

FACTORY RADIO/VENT PANEL

(Figure A)
