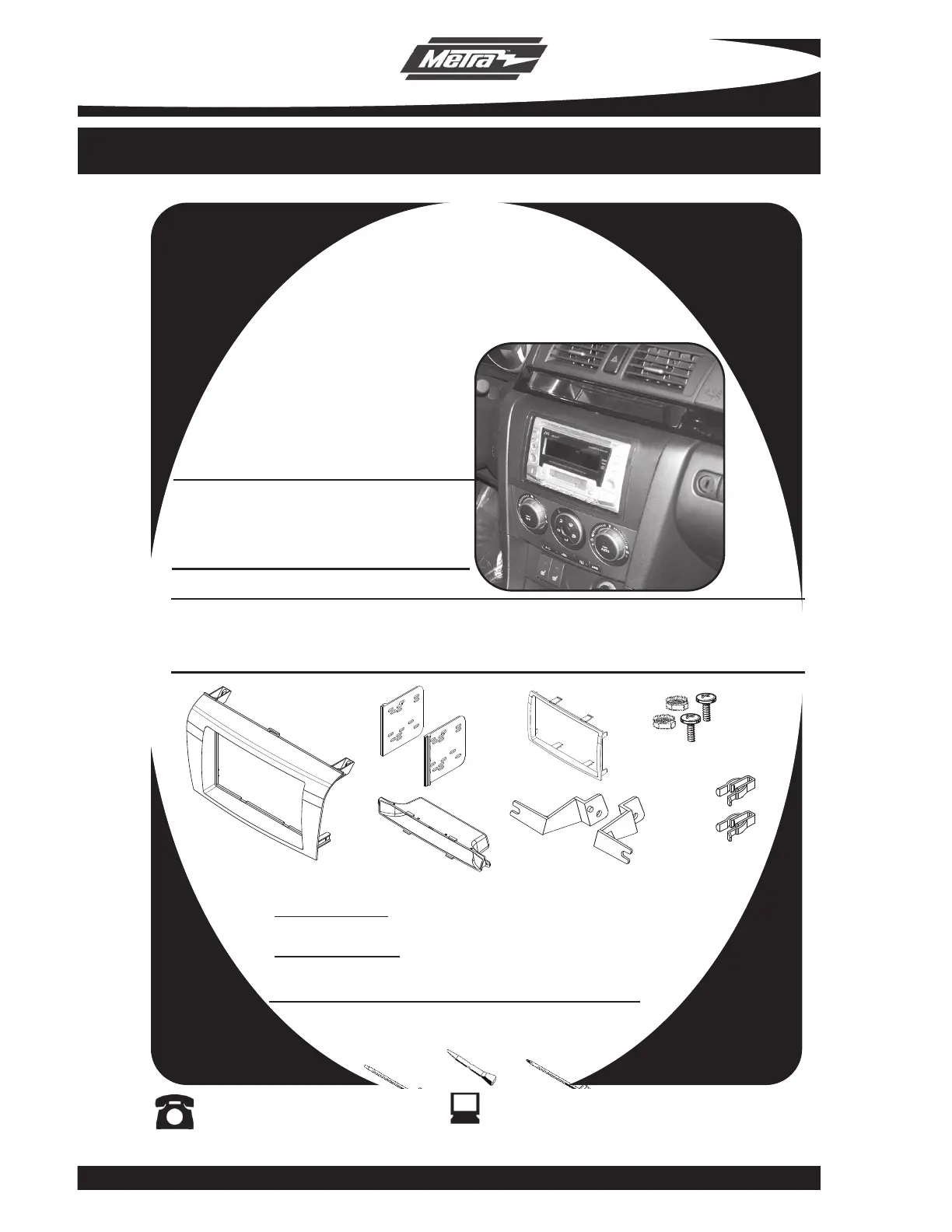

INSTALLATION INSTRUCTIONS FOR PART 95-7504
95-7504
Mazda 3 2004-2009
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
• Bonus Display Replacement Pocket
• A) Radio Housing • B) Double DIN Brackets • C) Double DIN Trim plate
•D) Display Replacement Pocket • E) Display Retention Brackets
• F) (2) 3/8” #10 Bolts and (2) #10 Nuts • G) (2) PC-7503 Panel Clips
KIT COMPONENTS
A
1-800-221-0932
© COPYRIGHT 2008-2009 METRA ELECTRONICS CORPORATION
www.metraonline.com
BC
D
TOOLS REQUIRED:
APPLICATIONS
E
F
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
• 70-7903 - Mazda harness 2001-up
Antenna Adapter:
• Not required
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver
G
Dash Disassembly
-
Mazda 3 2004-2009 . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . 1
Kit Assembly
- Display Brackets/Pocket Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
- Double DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
- Stacked ISO Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,6
TABLE OF CONTENTS
95-7504
*Note:
Refer also to the instructions included with the aftermarket radio.
K
NOWLEDGE IS
P
OWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
95-7504 DASH DISASSEMBLY
MAZDA 3 2004-2009
A
CLOCK
SET
LOA
D
FM1/2
AM CD
TAPE/MD
HOOK
B
REAR VIEW - DISPLAY TRIM PANEL
C
1
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Unclip and remove display trim panel
above radio. Tip: Open glove box and
start in middle of panel working
towards drivers side first because last
connection on far passenger side is a
hook. (
Figure A)
2
Remove (2) Phillips screws exposed
at top of radio then unclip and
remove radio. Note: Display is
attached to radio brackets and will be
removed at same time as radio.
(Figure B)
3
Remove (2) Phillips screws on back of
display trim panel securing display
trim then unclip and remove.
(Figure C)
4
Continue to display/pocket assembly.
