METRA. The World’s best kits.™metraonline.com © COPYRIGHT 2004-2015 METRA ELECTRONICS CORPORATION
REV. 7/31/2015 INST95-7522B

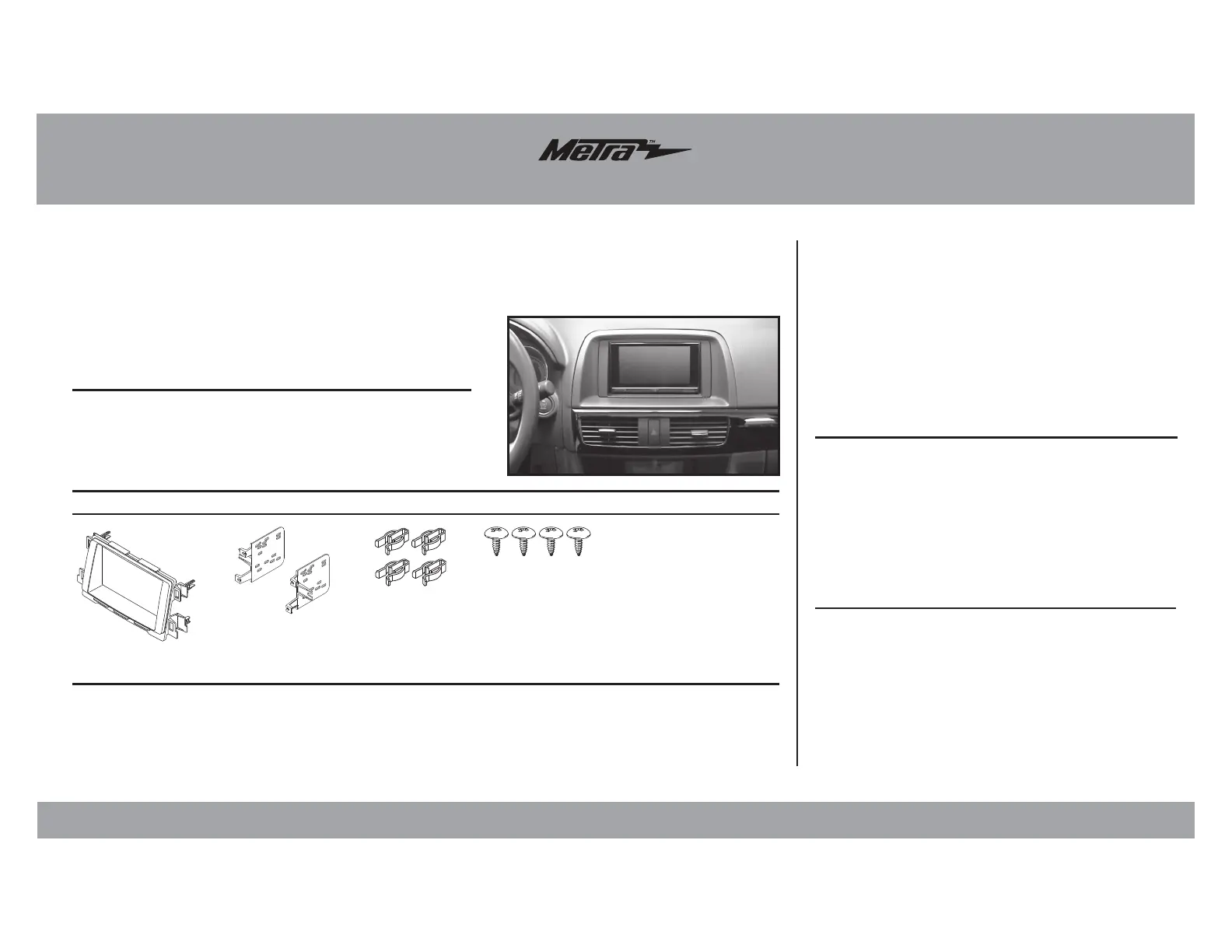

Installation instructions for part 95-7522B
CAUTION!
Metra recommends disconnecting the negative bat
-
tery terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your local
Dealership for more information. All accessories, switches, climate
controls panels, and especially air bag indicator lights must be con-
nected before reconnecting the battery or cycling the ignition. Also,
do not remove the factory radio with the key in the on position, or the
vehicle running. It would be best to remove the key from the ignition
and then wait a few seconds before removing the factory radio.
• ISO DDIN radio provision
• Painted matte black to match factory finish
• A) Radio housing • B) Radio brackets • C) (4) Panel clips • D) (4) #8 x 3/8” Phillips truss head screws
20;-,(;<9,:
20;*64765,5;:
>0905.(5;,55(*655,*;065: (sold separately)
Wiring Harness: • 70-7903 • AX-LCD (Mazda6 only)
Antenna Adapter: • 40-HD10
• Panel removal tool • Phillips screwdriver
;663:9,8<09,+
Mazda CX-5 2013-up, Mazda6 2014-2015
95-7522B Dash Disassembly ................................................. 2
Kit Assembly
– ISO DDIN radio provision ...................................... 2
Table of Contents
A B C D
95-7522B
2
Dash Disassembly
1. Unsnap and remove the trim panel above the glove
box and climate controls. This panel will include
the climate vents and hazard button. (Figure A)
Note: Do not cycle the key while the hazard button
is disconnected.
2. Unsnap and remove the trim from around the
factory radio. (Figure B)
3. Remove (2) Phillips screws securing the factory
radio and remove it.
Continue to kit assembly (Figure A) (Figure B)
95-7522B
3
Kit Assembly
ISO DDIN radio provision
1. Install the (4) included panel clips
to the back of the Radio Housing.
Note: The factory clips removed in
disassembly can also be used if so
desired.
2. Attach the Radio Brackets to
the Radio Housing with (4) #8 x
3/8” Phillips truss head screws
supplied. (Figure A)
3. Slide the radio into the completed
assembly and secure with screws
supplied with the radio. (Figure B)
4. Locate the factory wiring harness
in the dash. Metra recommends
using the proper mating adapter
from Metra or AXXESS. Re-connect
the negative battery terminal and
test the radio for proper operation.
5. Reassemble the dash in reverse
order of disassembly.
(Figure A) (Figure B)
