CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
The World’s best kits.MetraOnline.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 5/8/18 INST99-3020
I N S TA L L A T I O N I N S T R U C T I O N S
99-3020
U.S. Patent # D813,858

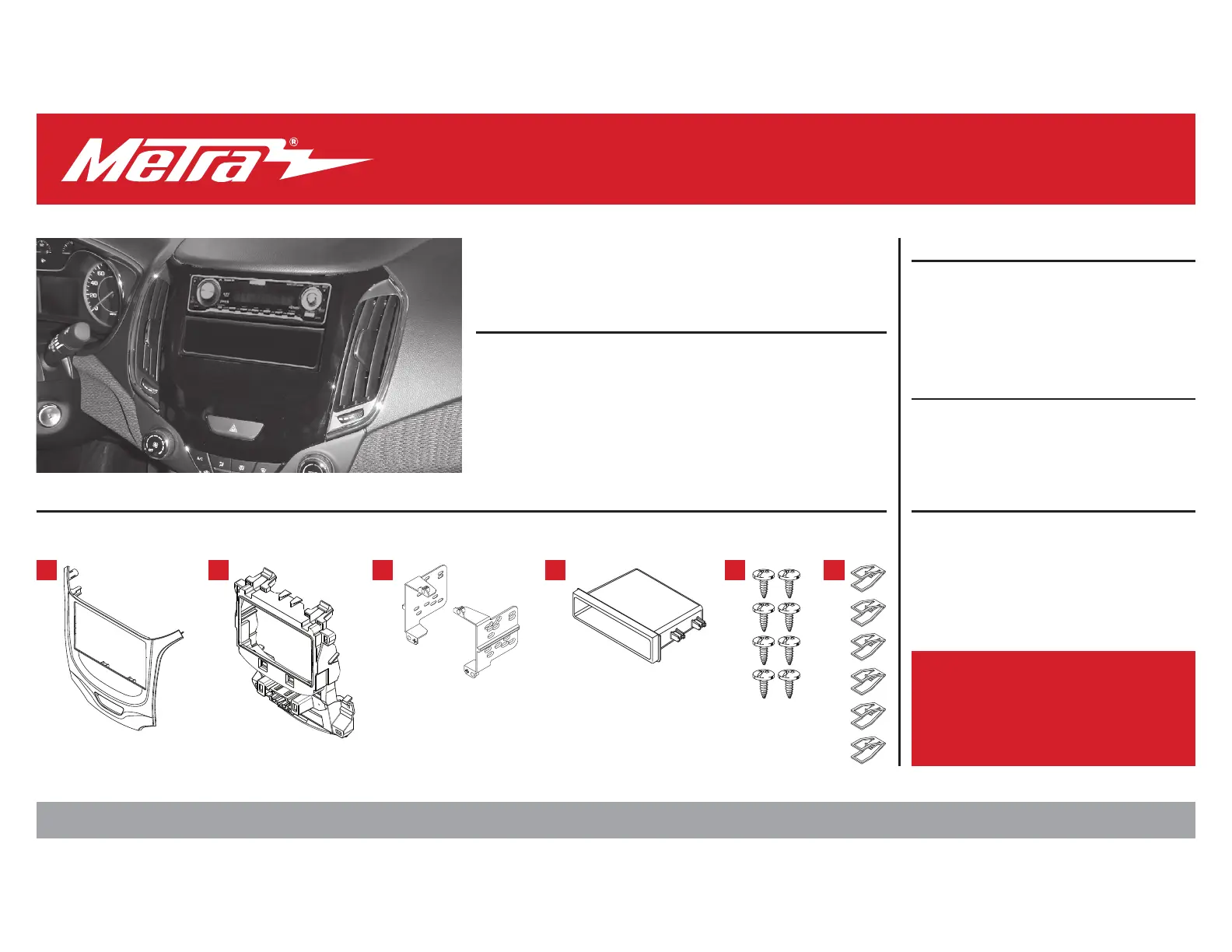

KIT FEATURES
• ISO DIN radio provision with pocket
• 99-3020B painted matte black
• 99-3020HG painted high gloss black
KIT COMPONENTS
• A) Radio trim panel • B) Radio housing • C) Radio brackets • D) Pocket • E) (8) #8 x 3/8” Phillips screws • F) (6) Panel clips
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 5/16” Socket wrench
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation .......................................................4
Kit Assembly ..........................................................5
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: GMOS-LAN-10 • GMOS-MOST-01
Antenna Adapter: 40-EU55
A B C D E F
Chevrolet Cruze 2016-up*
*Visit MetraOnline.com for up-to-date vehicle specific applications.
1.800.221.0932
|
MetraOnline.com
2
(Figure B) (Figure D)
(Figure A) (Figure C)
DASH DISASSEMBLY
1. Open the passenger door and glove
compartment, then unclip and remove
the trim panel on the side of the dash.
(Figure A)
2. Unclip and remove the vent/trim panel
above the glove box. (Figure B)
3. Unclip and remove the trim panel
between the steering column and the
climate controls. (Figure C)
4. Unclip and remove the trim panel
surrounding the radio and hazard
switch. (Figure D)
Continued on the next page
REV. 5/8/2018 INST99-3020 3
(Figure F) (Figure H)
(Figure E) (Figure G)
DASH DISASSEMBLY (CONT.)
5. Unclip and remove the vents on both
sides of the radio. (Figure E)
6. Remove the (2) 5/16” screws from the
top of the climate control panel.
(Figure F)
7. Unclip and remove the fuse trim panel
directly below the climate control panel.
(Figure F)
8. Unclip and remove the climate control
panel, and then remove the (2) 5/16”
screws now exposed. (Figure G, H)
9. Unclip and remove the radio/hazard
switch assembly. Remove the hazard
switch from the assembly. The switch
will be reused in kit preparation.
(Figure H)
Continue to Kit Preparation
