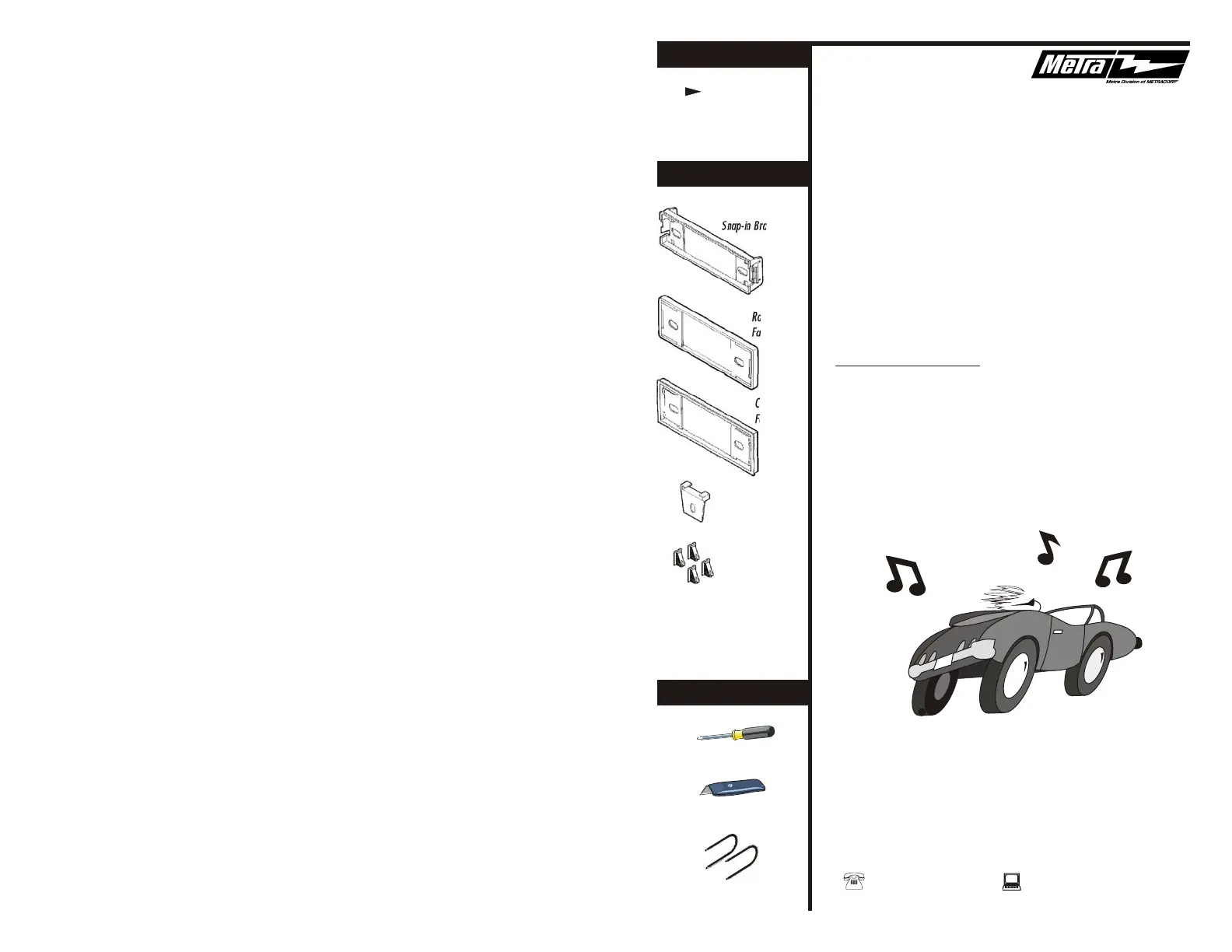

REV. 1/17/2018 INST-5000
METRA - The World’s best kits ®metraonline.com
Installation instructions for part INST-5000
®
CAUTION!
All accessories, switches, climate controls panels, and
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
INSTALLATION INSTRUCTIONS
APPLICATION OVERVIEW
Ford/Lincoln/Mazda/Mercury
INST-5000
99-5025
Ford 1987-1993
99-5512
Ford/Lincoln/Mercury
1989-2000
99-5800
Ford 1997-1998
99-5801
Ford 1997-1998
INST-5000 is a collection of installation instruction booklets. Use the Application Overview when selecting which
installation instruction selection to use. Each section is setup as a chapter with its own table of contents.
Installation Instructions Page
Section 1 .............................................................. 1.0
- Dash Disassembly ............................................ 1.0
- Kit Assembly ..................................................... 1.1
Section 2 .............................................................. 2.0
- Dash Disassembly ......................................2.1-2.5
- Kit Assembly ..................................................... 2.5
Section 3 .............................................................. 3.0
- Dash Disassembly ............................................ 3.1
- Kit Assembly ..................................................... 3.2
Section 4 .............................................................. 4.0
- Dash Disassembly ............................................ 4.1
- Kit Assembly ...............................................4.1-4.2
TABLE OF CONTENTS
Refer to each section’s title page.
TOOLS REQUIRED
Section 1:
• 99-5025
Section 2:
• 99-5512
Section 3:
• 99-5800
Section 4:
• 99-5801
1.0
Section 1
Ford Mustang
1987-1993
99-5025
• A) Radio brackets • B Trim plate
• C) Pocket • D) (4) #8 x 1” Philips screws
• E) (4) #8 x 3/8” Phillips screws
KIT COMPONENTS
• Phillips screwdriver • Radio removal tools 86-5618
TOOLS REQUIRED
D
C
E
Applications
Table of Contents
Dash Disassembly
– Ford Mustang 1987-1993 .................................... 1.0
Kit Assembly
– ISO DIN radio provision with pocket ..................... 1.1
Ford
Mustang .....................................................1987-1993
Ford Mustang 1987-1993
1. Using Metra’s 86-5618, pull the factory radio from
the dash and disconnect the wiring. (Figure A)
Continued on the next page
(Figure A)
INST-5000 Dash Disassembly
Wiring Harness:
• 70-1770
• 70-1768 (amplified models)
Antenna Adapter:
• Not required
WIRING & ANTENNA CONNECTIONS (sold separately)
KIT FEATURES
• ISO DIN radio provision with pocket
A B
1.1
Ford Mustang
1987-1993
2. Remove (2) 7/16” hex bolts from inside
the dash cavity and remove the radio
subdash bracket. (Figure B)
Note:
The threaded studs from under
this bracket will also need to be removed
for the aftermarket radio to clear
.
Continue to kit assembly
Dash Disassembly
All Vehicles
Kit Assembly
ALSO REMOVE (2) THREADED STUDS FROM UNDER BRACKET
7/16” (2)
HEX BOLTS
RADIO SUB-DASH BRACKET
(Figure B)
(Figure A) (Figure B)
ISO DIN radio provision with pocket
1. Secure the
radio brackets
to
the radio using the screws
supplied with the radio.
(Figure A)
2. Secure the
pocket
to the radio
assembly using the (4) #8 x
3/8” Phillips screws provided.
(Figure A)
3. Locate the factory wiring
harness and antenna
connector in the dash and
complete all necessary
connections to the radio.
Metra recommends using
the proper mating adapter
from Metra. Test the radio for
proper operation.
4. Secure the
trim plate
to the
completed assembly, and also
to the vehicle, using the (4) #8
x 1” Phillips screws provided.
(Figure B)
