I N S TA L L AT I O N I N S T R U C T I O N S

99-5847CH

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Touchscreen display for climate and personalization features

• Integrated hazard button and passenger airbag indicator

• Painted Charcoal Grey

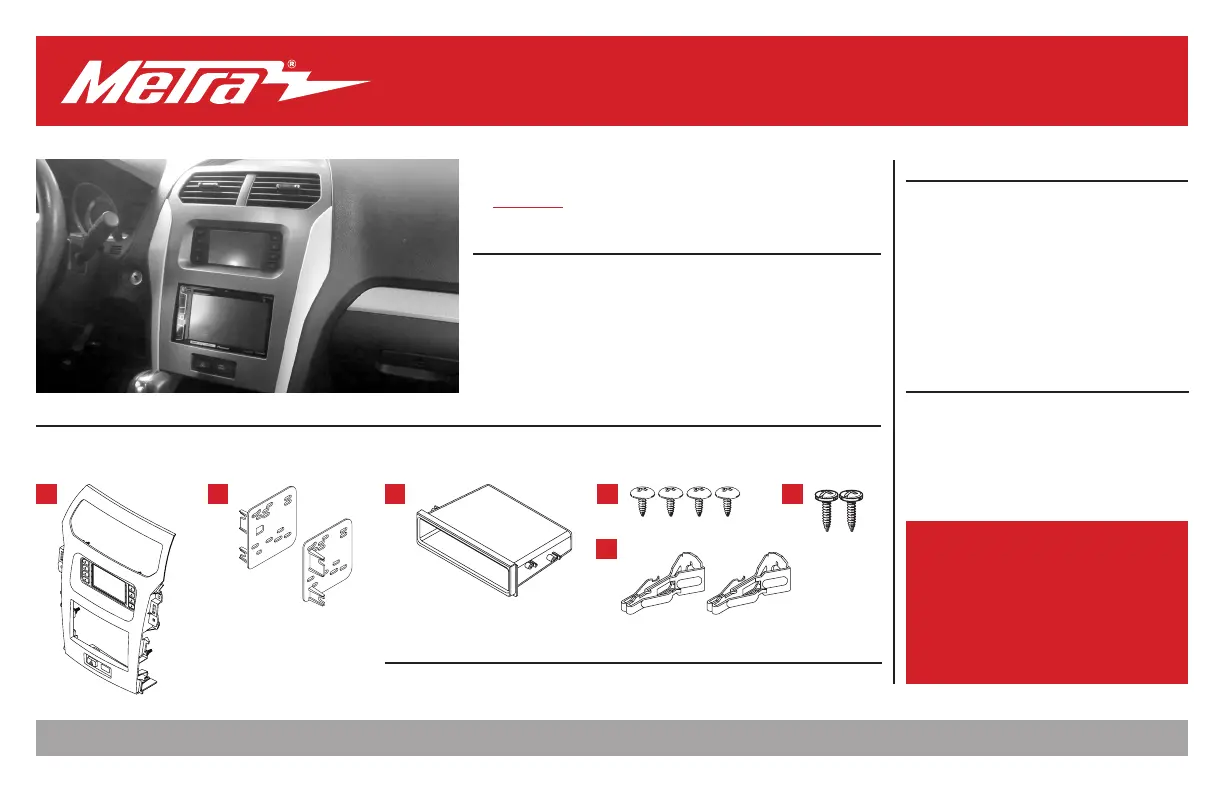

KIT COMPONENTS

• A) Radio/Display trim panel with touchscreen display • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws for pocket

• E) (2) #4 x 1/2” Phillips screws for A/C Vent to Housing

• F) (2) Panel clips • G) Antenna adapter and harnesses (not shown)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32” Socket wrench • Torx screwdriver

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................3

Kit Assembly

–ISO DIN radio provision with pocket ..................3

–ISO DDIN radio provision .....................................3

Axxess Interface Installation ............................4-12

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Axxess interface built into touchscreen

Antenna Adapter: Included

Ford Explorer

(with 4.2” screen)

2011-2015

A B C D E

Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com

speciﬁc applications

1.800.221.0932

MetraOnline.com

DASH DISASSEMBLY

1. Unclip and remove the (2) trim panels

from the left and right side of the factory

radio. (Figure A)

2. Remove (4) 9/32” screws securing the

radio/climate control panel to the dash.

(Figure B)

3. Unclip, unplug, and remove the factory

radio/climate control panel. (Figure C)

4. Remove (4) 9/32” screws securing the

radio chassis, then unplug and remove.

(Figure D)

5. Remove (4) 9/32” screws securing the

factory display, then unplug and remove.

(Figure E)

Continue to Kit Preparation

(Figure B)

(Figure E)(Figure D)

(Figure A) (Figure C)

REV. 6/10/2020 INST99-5847CH 3

KIT ASSEMBLYKIT PREPARATION

(Figure A)

ISO DIN radio provision with pocket

1. Secure the

pocket

to the

radio brackets

using the (4) #8 x 3/8” Phillips pan head

screws supplied. (Figure A)

2. Remove the metal DIN sleeve and trim

ring from the aftermarket radio.

3. Slide the radio between

radio brackets,

then secure with the screws supplied

with the radio. (Figure A)

Continue to Axxess Interface Installation

1. Remove (2) Torx screws securing the a/c

vents to the factory radio/climate control

panel, then unclip and remove them

from the panel. (Figure A)

2. Attach the a/c vents to the radio trim

panel using the (2) #4 x 1/2” Phillips

screws provided with the kit.

3. Attach the panel clips provided with the

kit onto the radio trim panel. The factory

clips may also be used if desired.

Continue to Kit Assembly

ISO DDIN radio provision

1. Secure the radio to the

radio brackets

using the screws supplied with the

radio. (Figure A)

Continue to Axxess Interface Installation

(Figure A)
