CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

I N S TA L L A T I O N I N S T R U C T I O N S

99-7381

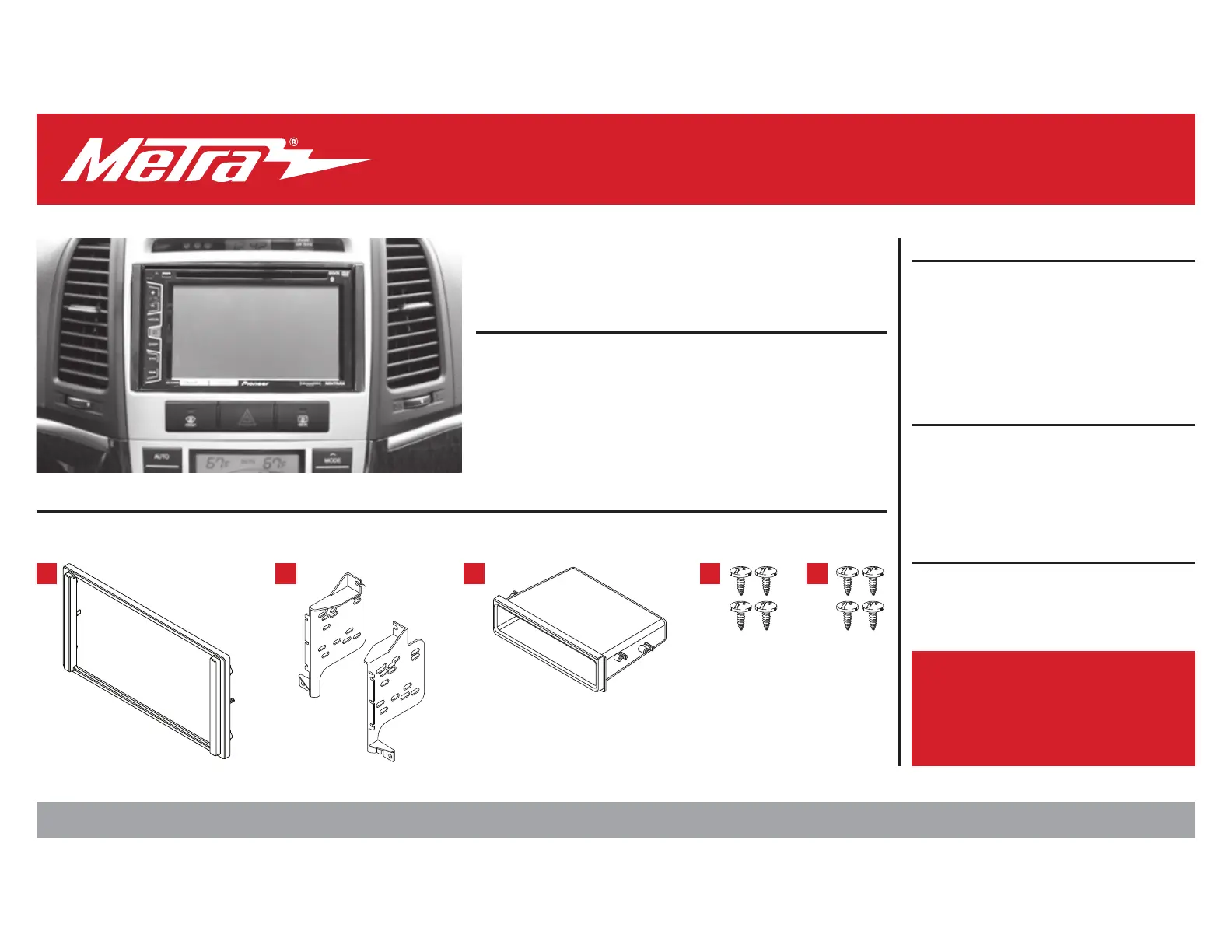

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws • E) (4) #6 x 3/8” Phillips screws

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Assembly

–ISO DIN radio provision with pocket ..................3

–ISO DDIN radio provision .....................................3

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: 70-1004

Antenna Adapter: Not required

Steering Wheel Control Interface: ASWC-1

A B C D E

Hyundai Santa Fe (with factory NAV) 2008-2009

1.800.221.0932

MetraOnline.com

DASH DISASSEMBLY

1. Remove (1) Phillips screw from the right

side of the panel below the steering

column then unclip and let right side of

panel hang. (Figure A)

2. Unclip and remove the cover above the

clock on top of panel surrounding the

radio. (Figure B)

3. Unclip and remove the panel extending

across the dash below the a/c control

and above the glove box including the

ash tray. (Figure C)

4. Remove (2) Phillips screws then unclip

and remove the panel surrounding the

radio including the A/C vents. (Figure D)

5. Remove (4) Phillips screws securing the

radio. Unplug and remove radio.

Note:

Illustrations shown are not actual

representation of the vehicle.

Continue to Kit Assembly

(Figure C) (Figure D)

(Figure A) (Figure B)

REV. 1/8/2018 INST99-7381 3

KIT ASSEMBLY

ISO DIN radio provision with pocket

1. Attach the

radio brackets

to the

radio

trim panel

using the (4) #6 x 3/8”

Phillips screws provided. (Figure A)

2. Attach the

pocket

to the

radio brackets

using the (4) #8 x 3/8” Phillips screws

provided. (Figure B)

3. Remove the metal DIN sleeve and trim

ring from the aftermarket radio.

4. Slide the radio into the bracket/pocket

assembly and then secure it using the

screws supplied with the radio. (Figure C)

5. Locate the factory wiring harness and

antenna connector in the dash, and

complete all necessary connections to

the radio. Metra recommends using

the proper mating adapter from Metra

and/or Axxess. Test the radio for proper

operation.

6. Reassemble the dash in reverse order

of disassembly.

ISO DDIN radio provision

1. Attach the

radio brackets

to the

radio

trim panel

using the (4) #6 x 3/8”

Phillips screws provided. (Figure A)

2. Slide the radio into the bracket assembly

and then secure it using the screws

supplied with the radio. (Figure B)

3. Locate the factory wiring harness and

antenna connector in the dash, and

complete all necessary connections to

the radio. Metra recommends using

the proper mating adapter from Metra

and/or Axxess. Test the radio for proper

operation.

4. Reassemble the dash in reverse order

of disassembly.

(Figure A)

(Figure B)

(Figure C)

(Figure B)

(Figure A)
