CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

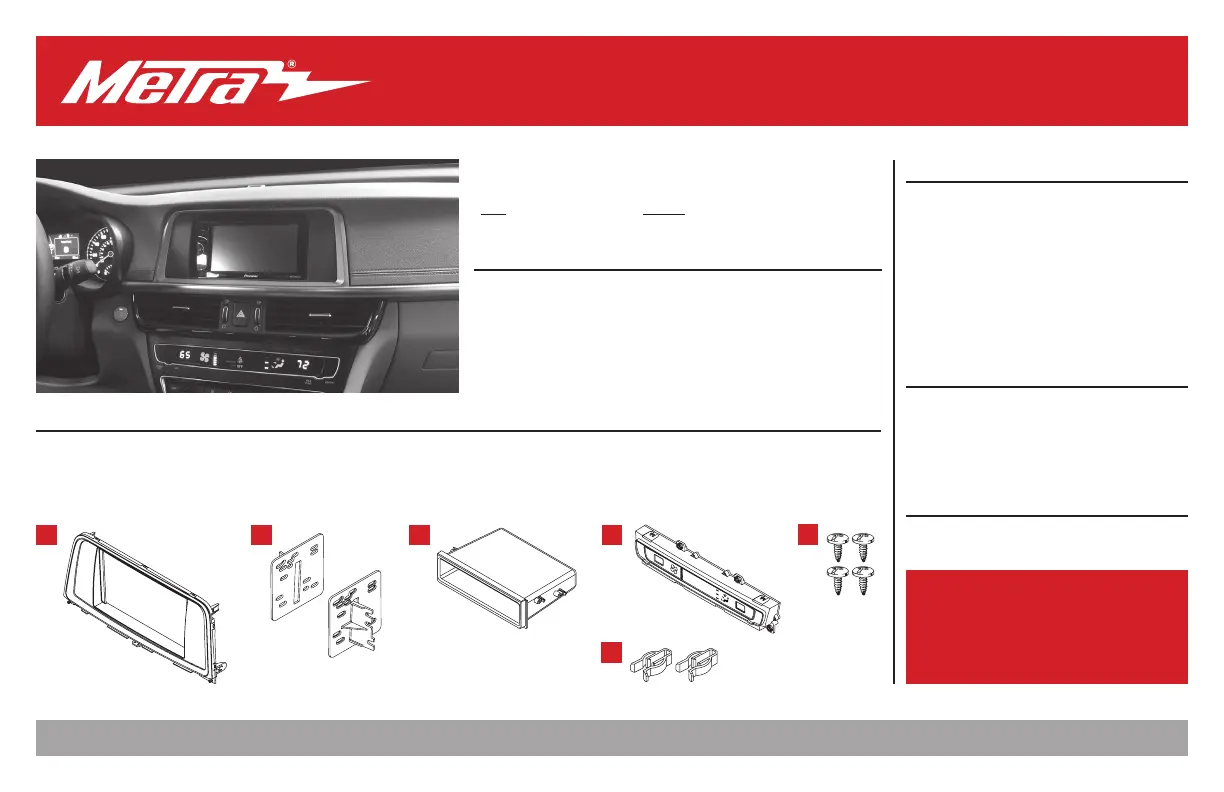

I N S TA L L AT I O N I N S T R U C T I O N S

99-7384B

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) Climate display • E) (4) #8 x 3/8” Phillips screws • F) (2) Panel clips

• G) Wiring harness (not shown) • H) 3.5mm connector with stripped leads (not shown) • I) Antenna adapter (not shown) • J) ASWC-1 (not shown)

• K) AX-CAM6V (not shown)

A B C

D E

Kia Optima 2017-2020*

Visit for up-to-date vehicle speciﬁc applications.MetraOnline.com

* With auto climate controls and Without factory ampliﬁer

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

TABLE OF CONTENTS

Dash Disassembly ...............................................2-3

Kit Preparation .......................................................4

Kit Assembly

–ISO DIN radio provision with pocket ..................5

–ISO DDIN radio provision .....................................5

Wiring Instructions ...........................................6-13

Final Assembly .......................................................9

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Included with kit

Antenna Adapter: Included with kit

Steering wheel control interface: Included with kit

12v to 6v camera stepdown: Included with kit

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Includes electronics with laser etched graphics to display fan speed,

mode, temp, and air bag indicator.

• Retains factory steering wheel controls and back up camera.

• Includes wiring and antenna adapter.

1.800.221.0932

MetraOnline.com

DASH DISASSEMBLY

1. Open the glove box and remove the

trim at the top of the opening, and then

remove the (2) Phillips screws exposed.

(Figure A)

2. Unclip the trim that runs along the

dash from the right side A/C vent to the

steering column, and then remove the

(2) Phillips screws securing the A/C vent/

hazard panel. (Figure B)

3. Unclip and remove the right side trim

panel from the center console, and then

remove the (1) Phillips screw securing

the A/C vent/hazard panel. (Figure C)

Continued on the next page

(Figure A) (Figure C)(Figure B)

REV. 5/27/2020 INST99-7384B 3

DASH DISASSEMBLY

(CONT.)

4. Unclip the A/C vent/hazard panel,

disconnect the hazard switch, and then

remove the panel. (Figure D)

5. Using caution not to break the panel,

carefully unclip and remove the radio

trim panel. (Figure D)

This panel is incredibly difﬁcult to Note:

remove. There are (14) clips that attach

this panel to the vehicle. Unclip one of

the clips from the bottom, then work up.

This method seems to work best. Take

note that the clips will clip back in unless

something is holding the panel slightly

out. (Figure E)

6. Remove the (4) Philips screws securing

the radio and then remove.

7. Remove (2) Phillips screws securing the

climate/radio control panel. Unclip the

panel, then unplug and remove

the panel. (Figure F)

Continue to Kit Preparation

(Figure D)

(Figure E)

(Figure F)

Back side of panel
