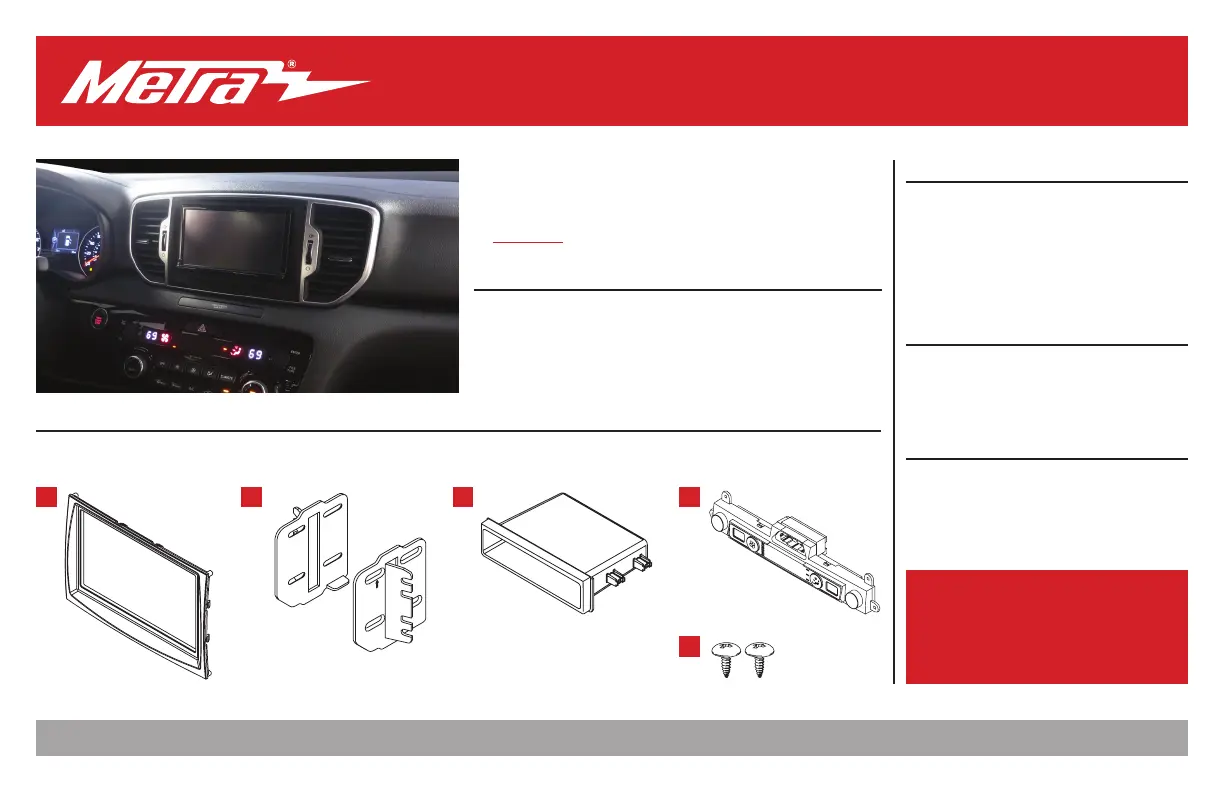

Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 12/4/19 INST99-7389B
I N S TA L L AT I O N I N S T R U C T I O N S
99-7389B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Includes an ASWC-1, AX-CAM6V, antenna adapter, and wiring
harness for a complete installation
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) Climate display • E) (2) #8 x 3/8” Phillips screws • F) Wiring harness (not shown) TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Pick tool
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation ...................................................4-6
Kit Assembly ..........................................................7
Wiring Instructions ...........................................8-15
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Included with kit
Antenna Adapter: Included with kit
Kia Sportage (without NAV, with Display radio†) 2017-2019
† Display radio is an Android Auto/Apple CarPlay radio
A CB D
E
*Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY
1. Unclip and slide the top of the center
console back slightly. (Figure A)
2. Unclip and remove the panel on the
end of the passenger side of the dash,
then remove (1) Phillips screw exposed.
(Figure B)
3. Unclip the panel above the glove box.
Unplug the passenger airbag light, then
remove the panel. (Figure C)
4. Remove (2) Phillips screws securing the
radio display and a/c vent panel, then
unclip and remove the panel. (Figure D)
Continued on the next page
(Figure A) (Figure C)
(Figure B) (Figure D)
REV. 12/4/2019 INST99-7389B 3
(Figure E) (Figure G)
(Figure F) (Figure H)
DASH DISASSEMBLY (CONT.)
5. Remove (4) Phillips screws securing the
radio. Slide the radio out, then unplug
and remove the radio. (Figure E)
6. Remove (3) Phillips screw securing the
climate control panel. (Figure F)
7. Remove (1) Phillips screw securing the
lower right side drivers knee bolster.
Unsnap the bolster just enough to
access the (1) Phillips screw securing the
climate control panel, then remove the
screw. (Figure G)
8. Unclip the climate/radio control panel
from the dash, unplug the connectors,
then remove the panel. (Figure H)
Continue to Kit Preparation
