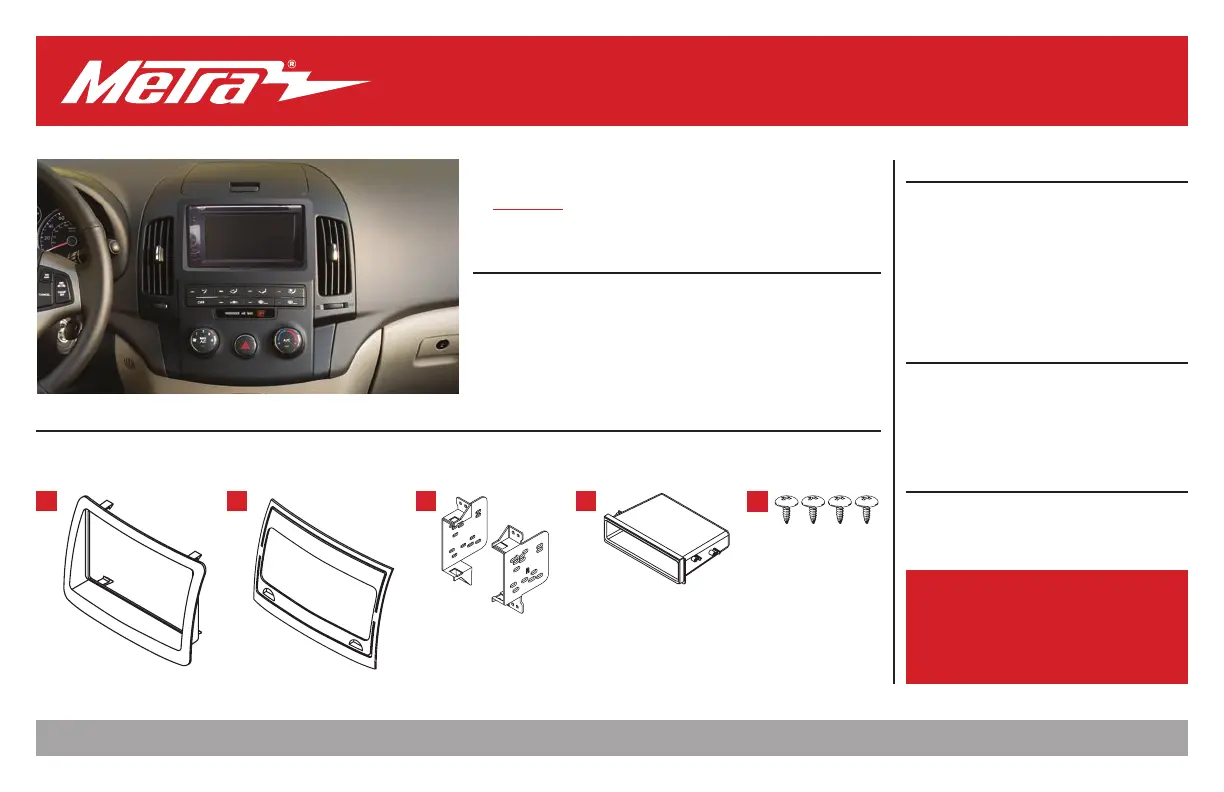

Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 12/17/19 INST99-7395B
I N S TA L L AT I O N I N S T R U C T I O N S
99-7395B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted scratch resistant matte black
KIT COMPONENTS
• A) Radio trim panel • B) Cut template • C) Radio brackets • D) Pocket • E) Phillips screws (qty. 4)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Cutting tool • Scribe tool or silver marker
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly
- ISO DIN radio provision .......................................4
- ISO DIN radio provision .......................................5
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: 70-7303
Antenna Adapter: 40-KI11
Steering wheel control interface: ASWC-1
A B C D E
Hyundai Elantra Touring 2009-2012
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY
1. Open the pocket up top, then remove
the storage liner.
2. Remove (4) Phillips screws securing the
pocket, then unclip and remove.
(Figure A)
3. Remove (1) Phillips screw securing the
top of the radio trim panel. (Figure B)
(Figure A) (Figure C)
(Figure B) (Figure D)
4. Unclip, unplug, and remove the radio
trim panel. (Figure C)
5. Remove (4) Phillips screws securing the
radio. Slide the radio out, then unplug
and remove. (Figure D)
Continue to Kit Preparation
REV. 12/17/2019 INST99-7395B 3
KIT PREPARATION
Attention! The factory dash panel will no
longer be able to be reused with the factory
radio after the following modification has
been made.
1. Place the cut template over the factory
dash panel. (Figure A)
2. Using a scribe tool or silver marker, mark
the perforated area. (Figure B)
3. Remove and discard the cut template.
4. Using a cutting tool, cut the marked area
on the factory dash panel. (Figure C)
Continue to Kit Assembly
(Figure A) (Figure B) (Figure C)
Remove
shaded
area
