Installation Kit
120 99-7412
Parts
Supplied:
Mounting
Bracket
Nissan
Revision 07/15/99
DIN Assembly

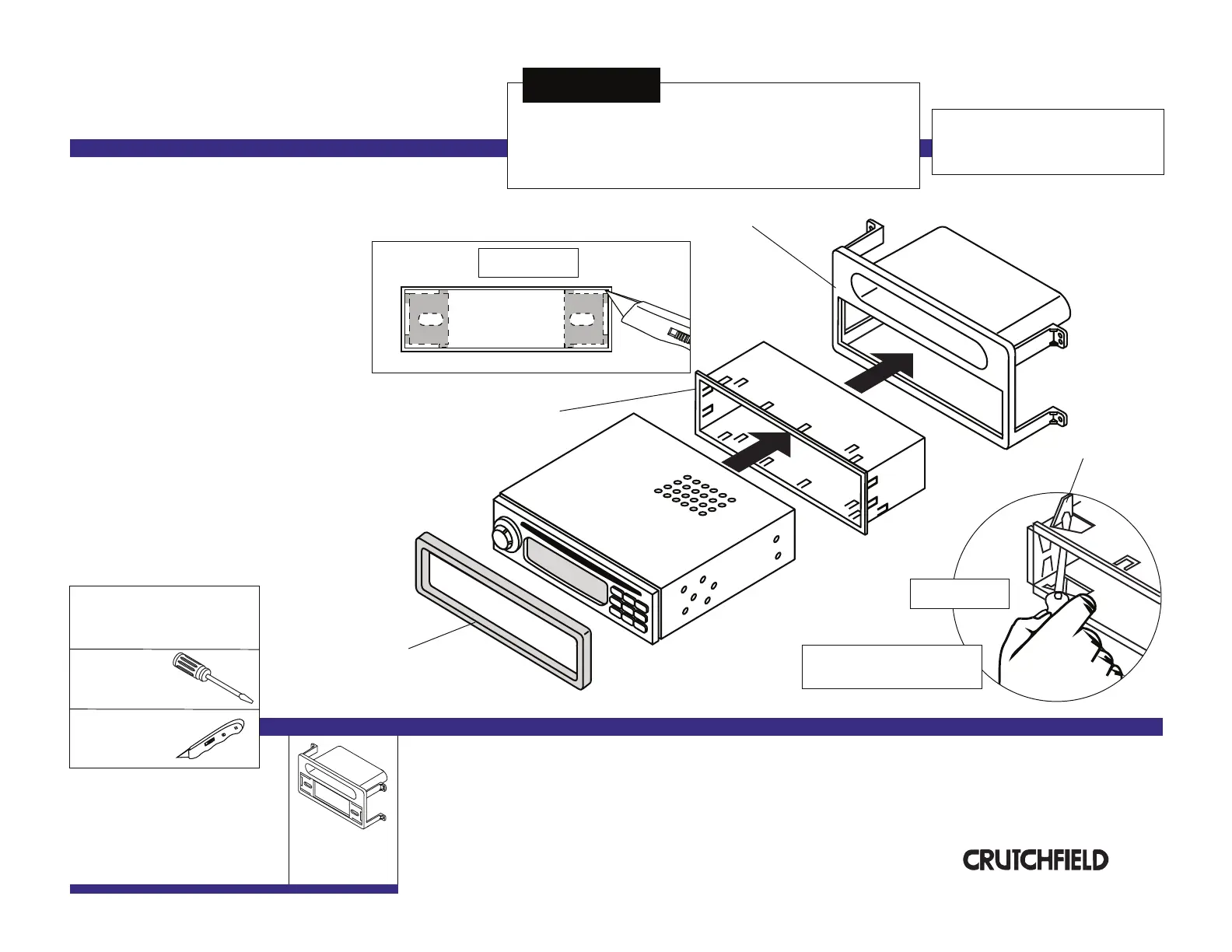

1. Using a utility knife, cut out shaft
supports to create the DIN opening
as shown (Figure 1).
2. Remove DIN sleeve and trim ring
from receiver.
3. Slide DIN sleeve into receiver
mounting bracket and secure by
bending securing tabs (Figure 2,
lower right).
4. Slide receiver fully into sleeve and
install trim ring.
5. Install assembly following instructions
in the Mastersheet for your particular
vehicle.
Page 1 of 2
Receiver Mounting Bracket
DIN Sleeve
IMPORTANT
Before starting, compare items on your invoice with items
received. If any parts are missing, first carefully check through
packaging material. If an item is missing, please call:
Crutchfield
FIGURE 1
FIGURE 2
®
Copyright 1999 Crutchfield Corporation
Tools Required
Flat Blade
Screwdriver
Utility Knife
Securing Tabs
Bend tabs after sleeve
is inside mounting bracket.
Trim Ring
at 1-888-955-6000
Installation Kit
Tools Required
120 99-7412
Deep Socket
(size depends
upon receiver)
Nissan
Shaftnuts (supplied with receiver)
1. Choose the proper (supplied with your order) spacers
to allow receiver nosepiece to extend 1/8” to 1/4” beyond
face of (see inset).receiver mounting bracket
2. Secure receiver and faceplate to mounting bracket with
spacers and shaftnuts as shown.
3. Attach receiver control knobs.
4. Install assembly following instructions in the Mastersheet
for your particular vehicle.
Faceplate
Receiver Mounting Bracket
Shaft Assembly Page 2 of 2
1/8” - 1/4”
Spacer
*120997412*
INSET
®
Copyright 1999 Crutchfield Corporation
Spacers (supplied with your order)
Control Knobs
