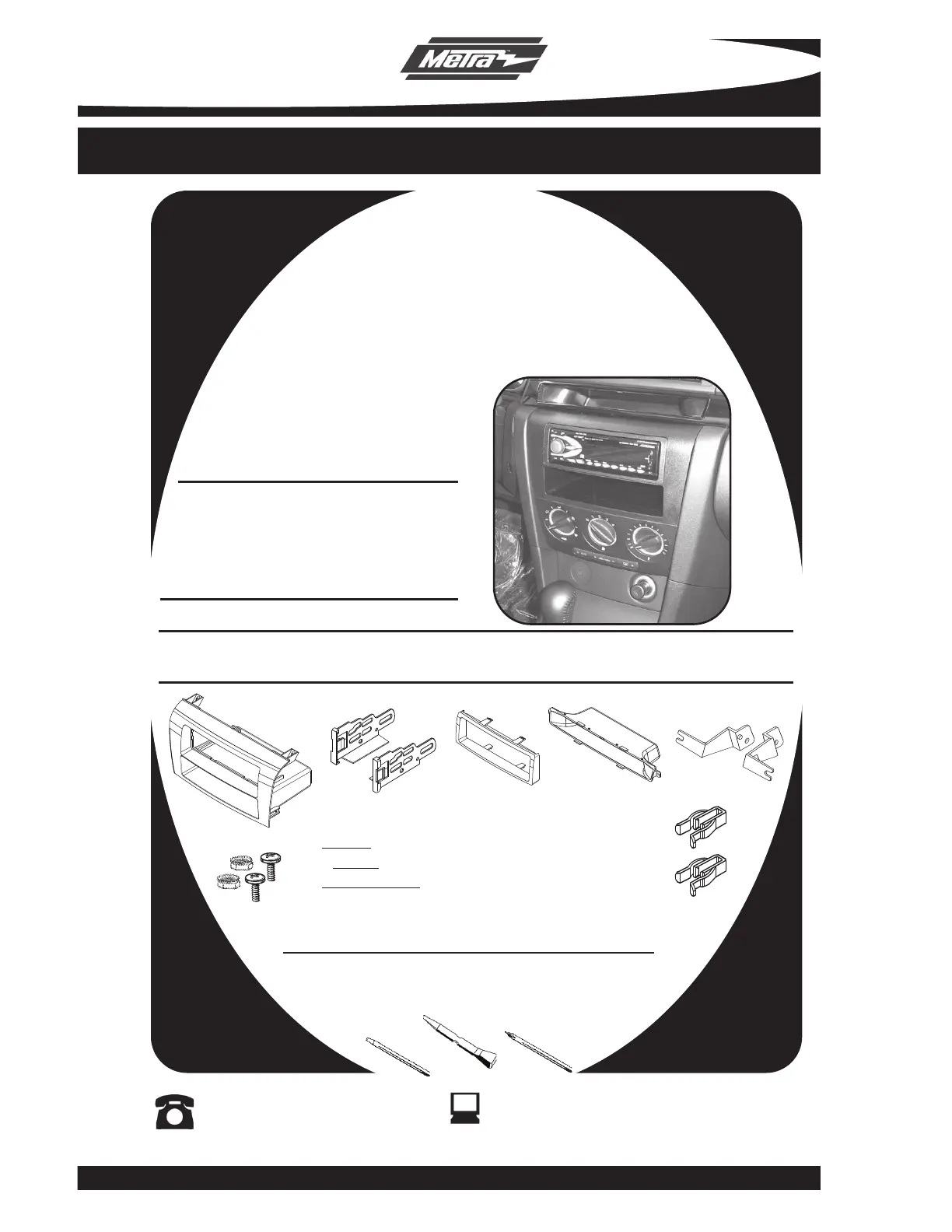

INSTALLATION INSTRUCTIONS FOR PART 99-7504

99-7504

APPLICATIONS

Mazda 3

2004-2009

KIT FEATURES

• DIN Mount Radio Provision with Pocket

• ISO Mount Radio Provision with Pocket

• Bonus Display Replacement Pocket

• Retains Factory Display For Automatic

Climate Controls

A) Radio Housing • B) ISO Brackets • C) Trim Plate • D) Display Replacement Pocket

• E) Display Retention Brackets • F) (2) 3/8” #10 Bolts and (2) #10 Nuts • G) (2) PC-7503 Panel Clips

KIT COMPONENTS

Small Flat Blade Screwdriver/ Panel Removal Tool

• Phillips Screwdriver

1-800-221-0932

www.metraonline.com

BCD

TOOLS REQUIRED:

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Harness:

• 70-7903 - Mazda harness 2001-up

Antenna Adapter:

• Not required

Dash Disassembly

Mazda 3 2004-2009. . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . 1

Kit Assembly

- Display Brackets/Pocket Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

- DIN Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . 3

- ISO DIN Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . 4

Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,6

TABLE OF CONTENTS

99-7504

*Note:

Refer also to the instructions included with the aftermarket radio.

NOWLEDGE IS

OWER

Enhance your installation and fabrication skills

by enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com

or call 800-354-6782 for more information

and take steps toward a better tomorrow.

99-7504 DASH DISASSEMBLY

MAZDA 3 2004-2009

CLOCK

SET

L DOA

FM1/2

AM CD

TAPE/MD

HOOK

REAR VIEW - DISPLAY TRIM PANEL

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Unclip and remove display trim panel

above radio. Tip: Open glove box and

start in middle of panel working

towards drivers side first because last

connection on far passenger side is a

hook. (

Figure A)

Remove (2) Phillips screws exposed

at top of radio then unclip and

remove radio. Note: Display is

attached to radio brackets and will be

removed at same time as radio.

(Figure B)

Remove (2) Phillips screws on back of

display trim panel securing display

trim then unclip and remove.

(Figure B)

Continue to display pocket assembly.
