METRA - The World’s best kits ®metraonline.com
REV. 12/21/2016 INST99-7510

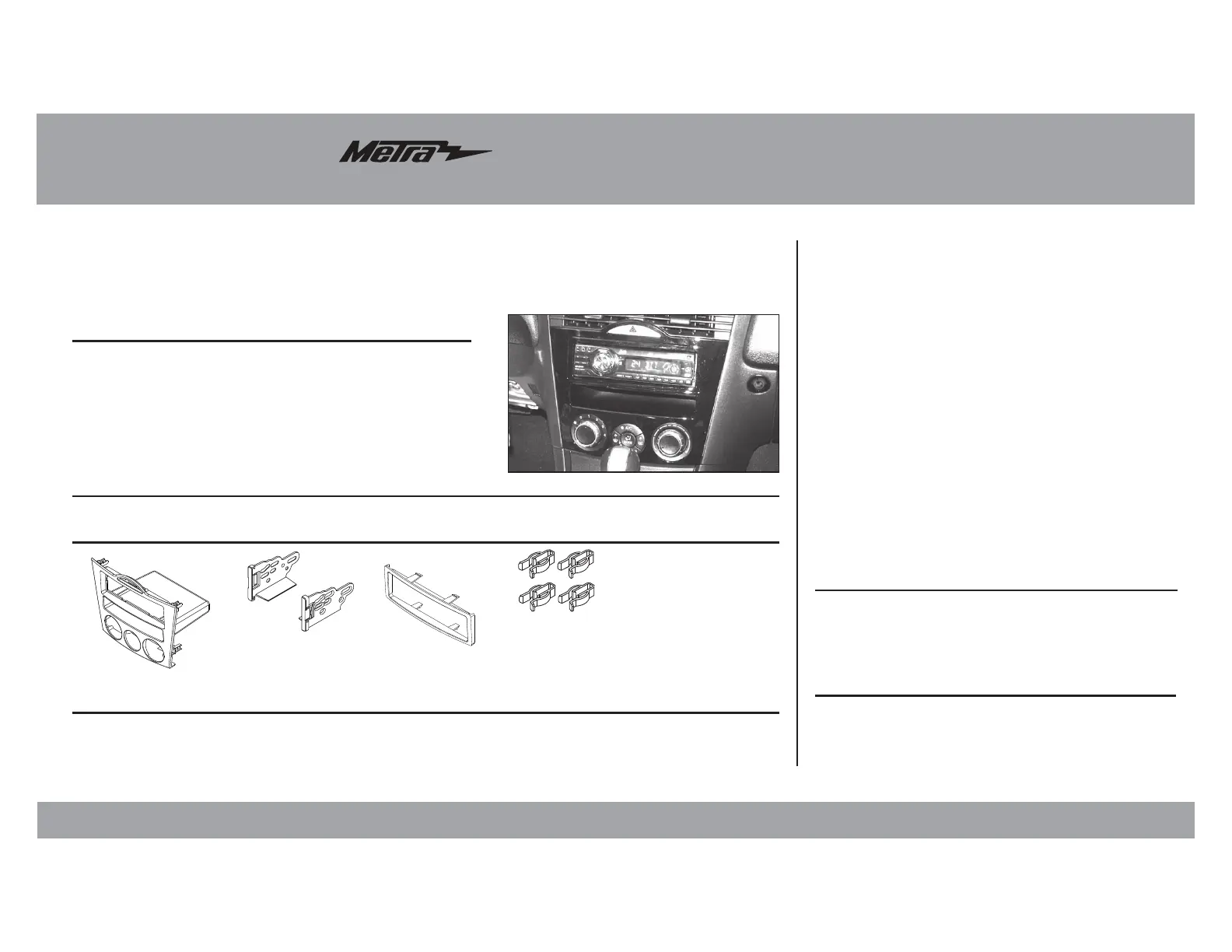

Installation instructions for part 99-7510
®
CAUTION!
All accessories, switches, climate controls panels, and
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
© COPYRIGHT 2016 METRA ELECTRONICS CORPORATION
• DIN radio provision with pocket
• ISO DIN radio provision with pocket
• Two finishes available:
99-7510 = Black
99-7510HG = Gloss Black
• A) Radio/climate control housing • B) ISO DIN brackets • C) ISO DIN trim plate • D) (4) Plastic panel clips
• E) Axxess Interface and wiring harness (not shown)
20;-,(;<9,:
20;*64765,5;:
>0905.(5;,55(*655,*;065:
Wiring Harness: • Axxess interface and wiring harness included
Antenna Adapter: • Not required
• Panel removal tool • Phillips screwdriver
• 10mm socket wrench • Cutting tool
;663:9,8<09,+
Mazda RX-8 2004-2008
99-7510, 99-7510HG
AB C D
Dash Disassembly ................................................. 2
Kit Preparation ....................................................3-4
Kit Assembly
– DIN radio provision with pocket ............................ 4
– ISO DIN radio provision with pocket ...................... 5
Axxess Interface Installation .............................5-7
Display Customization ........................................7-8
Table of Contents
99-7510
®
1. Unscrew the shift knob counter
clockwise to remove. (Figure A)
2. Unclip and remove the shifter trim
panel. (Figure B)
3. Remove (2) Phillips screws
from the bottom of the ashtray
assembly, then unclip and remove.
(Figure C)
Dash Disassembly
FM1 877 AC
(Figure A) (Figure D)
(Figure B) (Figure E)
(Figure C) (Figure F)
2
4. Unclip and remove the knee panel
on the driver’s side under the
steering column (Figure D)
5. Remove (1) 10mm bolt securing
the side of the radio. (Figure E)
6. Remove (2) Phillips screws from
the bottom of the radio/climate
control panel, then unsnap and
remove. (Figure F)
Continue to Kit Preparation
99-7510
®
Kit Preparation
REMOVE (2) SCREWS PER SIDE
(Figure I)
(Figure H)
(Figure J) (Figure L)
(Figure K)
3
From the factory radio/climate
control panel:
1. Remove (3) screws securing the
display harness. This harness will
be reused in kit assembly.
(Figure H)
2. Remove (4) screws securing the
radio chassis, and then remove.
(Figure I)
3. Remove (6) screws securing the
climate controls, and then remove.
The controls and hardware will be
reused in kit assembly. (Figure J)
4. Remove (17) screws securing the
circuit board to access the hazard
switch assembly. (Figure K)
5. Remove (2) screws securing the
hazard switch assembly. Carefully
pull and release the hazard switch
button from the assembly to fully
remove the complete assembly.
The switch and hardware will be
reused in kit assembly. (Figure L)
Continue to the next page
