Installation instructions for part 99-7614
®
CAUTION!
All accessories, switches, climate controls panels, and
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
© COPYRIGHT 2016 METRA ELECTRONICS CORPORATION

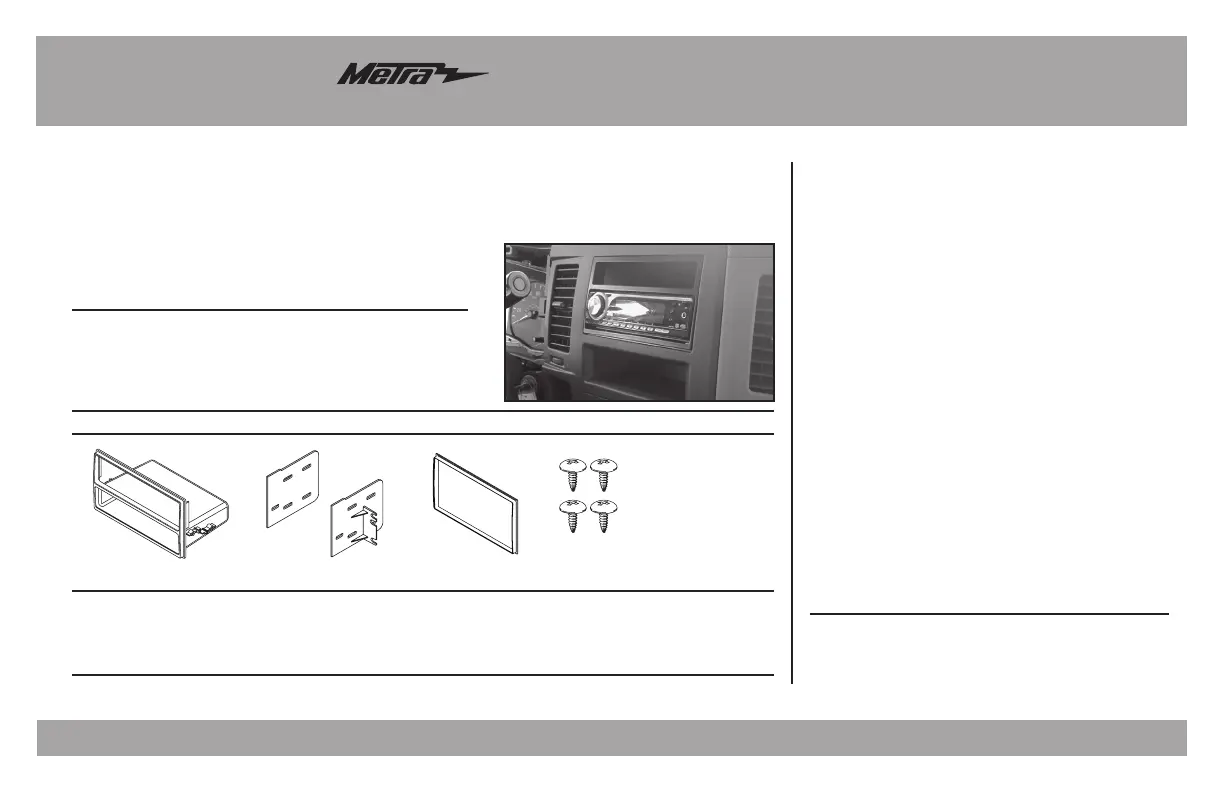

• ISO DIN radio provision with pocket
• ISO DDIN radio provision
A) Radio housing • B) Radio brackets (C) • C) ISO DDIN trimplate • D) (4) #8 x 3/8” Phillips screws
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-7552
Antenna Adapter: • 40-NI12
• Panel removal tool Phillips screwdriver
TOOLS REQUIRED
(without NAV)
(without NAV or rear seat entertainment) Dash Disassembly
Nissan
– NV 2012-2014 2-4 .................................................
– NV 2015-up (without NAV) 2-4 ...............................
– Quest (without NAV or rear seat entertainment)
2011-2012......................................................5-6
Kit Assembly
– ISO DIN radio provision with pocket 7 ....................
– ISO DDIN radio provision 7 .....................................
Table of Contents
BA C D
99-7614
®
NV 2012-2014,
NV 2015-up(without NAV)
1. Unclip and remove the A/C vent to
the right side of the factory radio.
(Figure A)
2. Remove the (2) Phillips screws
exposed behind vent on radio trim
panel. (Figure B)
3. Unclip and remove the left A/C
vent next to the instrument display.
(Figure C)
4. Unclip the top edge of the knee
bolster panel below the steering
column and let hang. (Figure D)
Continued on the next page
(Figure A)
(Figure D)(Figure B)
(Figure C)
Dash Disassembly
99-7614
®
5. Unclip the circle trim around the
key cylinder.
6. Unclip and remove the gauge
cluster trim panel. (Figure E)
7. Remove (2) Phillips screws
exposed behind the panel on the
left side of the radio trim panel.
(Figure F)
8. Unclip and remove the trim panel
surrounding the factory radio.
(Figure G)
9. Remove (4) Phillips screws
securing the radio. (Figure H)
(Figure F)
(Figure G)
(Figure H)
(Figure E)
Dash Disassembly (Cont)
