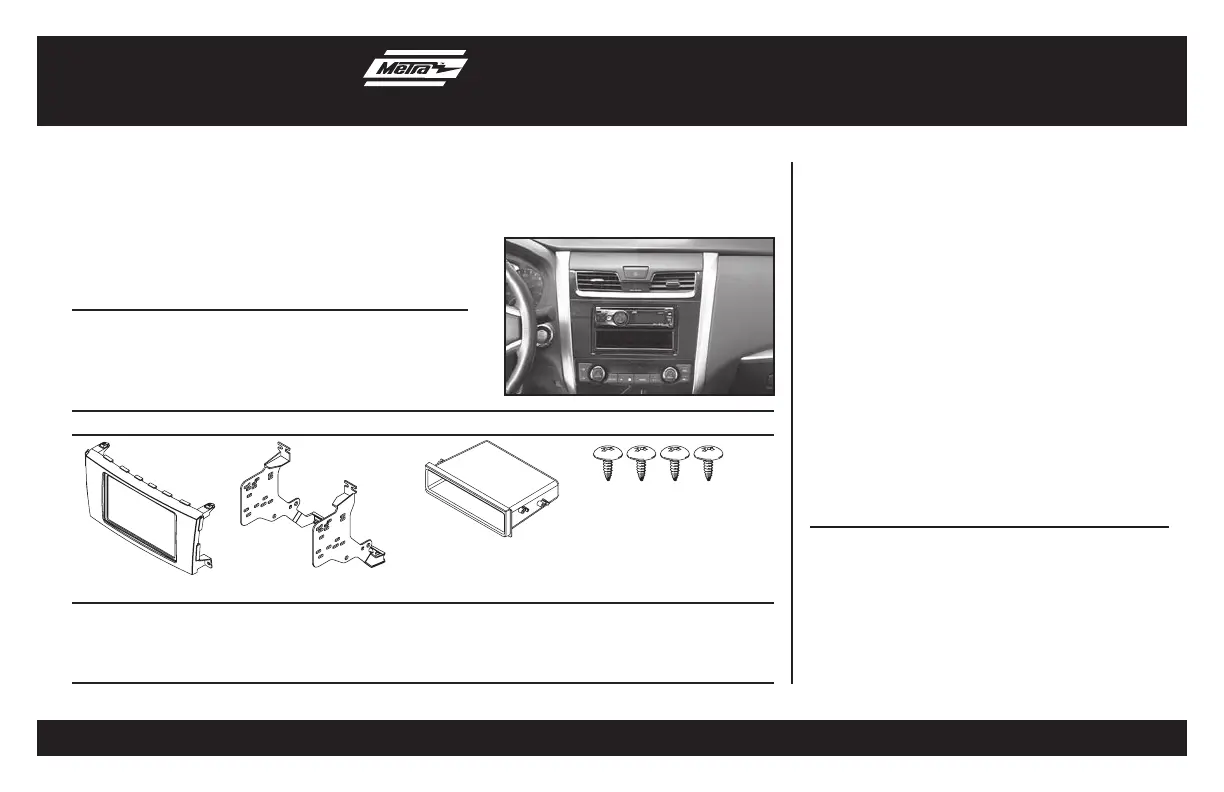

INSTALLATION INSTRUCTIONS FOR PART 99-7617GHG

APPLICATIONS

REV. 4/3/2013 INST99-7617GHG

CAUTION: Metra recommends disconnecting the

negative battery terminal before beginning any

installation. All accessories, switches, and especially

air bag indicator lights must be plugged in before

reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the

aftermarket radio.

Table of Contents

• ISO DIN radio provision with pocket

• Painted Grey High Gloss

• A) Radio Trim Panel • B) Radio Brackets • C) Pocket • D) (4) #8 x 3/8” Phillips Pan Head Screws

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-7552 2010-Up Nissan Wire Harness • 70-7554 2010-Up Nissan Wire Harness

Antenna Adapter: • 40-NI12 2010-Up Nissan Antenna Adapter

• Panel removal tool • Phillips screwdriver • Socket Wrench

TOOLS REQUIRED

(Sedan)

A B C D

Dash Disassembly

– Nissan Altima 2013-up ......................................... 2

Kit Assembly

– ISO DIN radio provision with pocket ....................... 3

99-7617GHG

1. Unclip the right side of the driver’s

knee bolster panel next to the

center console and let hang. Note:

There is no need to completely

remove the panel. (Figure A)

2. Unclip and remove the (2) silver

side trim panels from each side of

the factory radio. (Figure B)

3. Unclip and remove trim panel

below the a/c control panel.

Dash Disassembly

(Figure A)

(Figure D)

(Figure B)

(Figure E)

(Figure C)

(Figure F)

4. Remove (4) Phillips screws

securing the factory radio, a/c

control and a/c vents. (Figure C)

5. Remove the a/c controls.

(Figure D)

6. Remove the a/c vent panel.

(Figure E)

7. Remove the factory radio.

(Figure F)

8. If equipped there may be an a/c

amp present attached under the

radio remove (2) Phillips screws

securing the a/c amp.

Continue to kit assembly

99-7617GHG

Kit Assembly

ISO DIN radio provisions with pocket

1. If equipped attach the a/c amp to

the radio brackets with the factory

hardware. (Figure A)

2. Mount the pocket to the radio

brackets with the (4) #8 X 3/8”

Phillips pan head screws supplied.

(Figure A)

3. Slide the head unit into radio

brackets and secure with screws

supplied with the unit.

(Figure B)

4. Locate the factory wiring harness

and antenna plug in the dash.

Metra recommends using the

proper mating adapters from Metra

and/or AXXESS.

5. Reassemble dash in reverse order

of disassembly.

(Figure A) (Figure B)
