CAUTION: Metra recommends disconnecting the negative battery
terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your
local Dealership for more information. All accessories, switches,
climate controls panels, and especially air bag indicator lights
must be connected before reconnecting the battery or cycling
the ignition. Also, do not remove the factory radio with the key
in the on position, or the vehicle running. It would be best to
remove the key from the ignition and then wait a few seconds
before removing the factory radio.

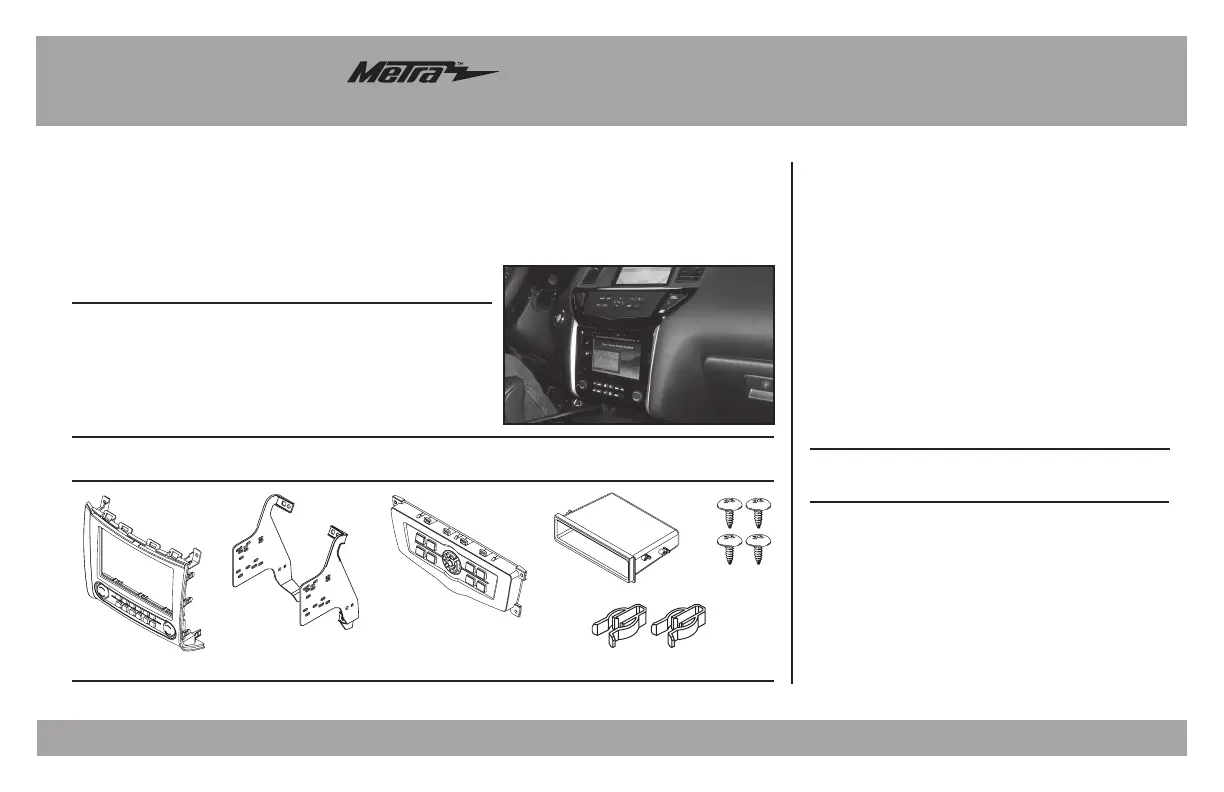

Installation instructions for part 99-7627HG U.S. PATENT # D789,351
ISO DIN radio provision with pocket
ISO DDIN radio provision
Painted to match factory components
A) Radio trim panel with climate controls • B) Radio brackets • (C) Keypad assembly • D) Pocket
• E) (4) #8 x 3/8” Phillips screws • F) (2) White panel clips • Axxess interface and harness (not shown)
20;-,(;<9,:
20;*64765,5;:
>0905.(5;,55(*655,*;065: (sold separately)
Wiring Harness: Included with kit Antenna Adapter: • 40-NI12
Panel removal tool • Phillips screwdriver
T-20 Torx driver
;663:9,8<09,+
Nissan Pathfinder 2013-2016
(without NAV) (with color screen)
99-7627HG
A DC E
F
B
Dash Disassembly ..............................................2-3
Kit Preparation ....................................................... 3
Kit Assembly
ISO DIN radio provision with pocket ...................... 4
ISO DDIN radio provision ...................................... 4
Axxess interface installation ..............................5-7
Screen Operation ..............................................8-10
Table of Contents
99-7627HG
2
Dash Disassembly
1. Unclip and remove the trim panel
located between the vehicle screen
and control panel, and then remove
(1) Phillips screw now exposed.
(Figure A)
2. Unclip the screen control panel,
unplug the connectors, and then
remove the keypad assembly from
the panel. Note: The panel will be
reused during kit assembly.
(Figure B)
3. Unscrew (4) Phillips screws securing
the metal brace now exposed above
the radio/climate-control panel, and
then remove the brace. (Figure C)
4. Remove (2) Phillips screws from the
top of the radio/climate-control panel.
(Figure D)
5. Unclip and remove the trim panel
underneath the radio/climate-control
panel. (Figure E)
Continued on next page
(Figure A) (Figure E)
(Figure D)
(Figure B)
(Figure C)
99-7627HG
6. Unclip and remove the radio/climate
control panel. (Figure F).
7. Remove (2) Phillips screws exposed
below the radio chassis, unplug the
connectors, then remove the radio
chassis. (Figure G)
8. Remove the climate control module
located under the radio chassis and
set aside for kit assembly.
(Figure G)
Continue to kit preparation.
3
Kit PreparationDash Disassembly
Kit Preparation
1. Secure the provided keypad
assembly into the screen control
panel removed in step 2 of dash
disassembly using the factory
screws. (Figure A)
2. Attach the supplied (2) white panel
clips radio trim panel with to the
climate controls. (Figure B)
Continue to kit assembly.
(Figure F) (Figure A)
(Figure G) (Figure B)
Climate
control
module
