CAUTION: Metra recommends disconnecting the negative battery
terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your
local Dealership for more information. All accessories, switches,
climate controls panels, and especially air bag indicator lights
must be connected before reconnecting the battery or cycling
the ignition. Also, do not remove the factory radio with the key
in the on position, or the vehicle running. It would be best to
remove the key from the ignition and then wait a few seconds
before removing the factory radio.

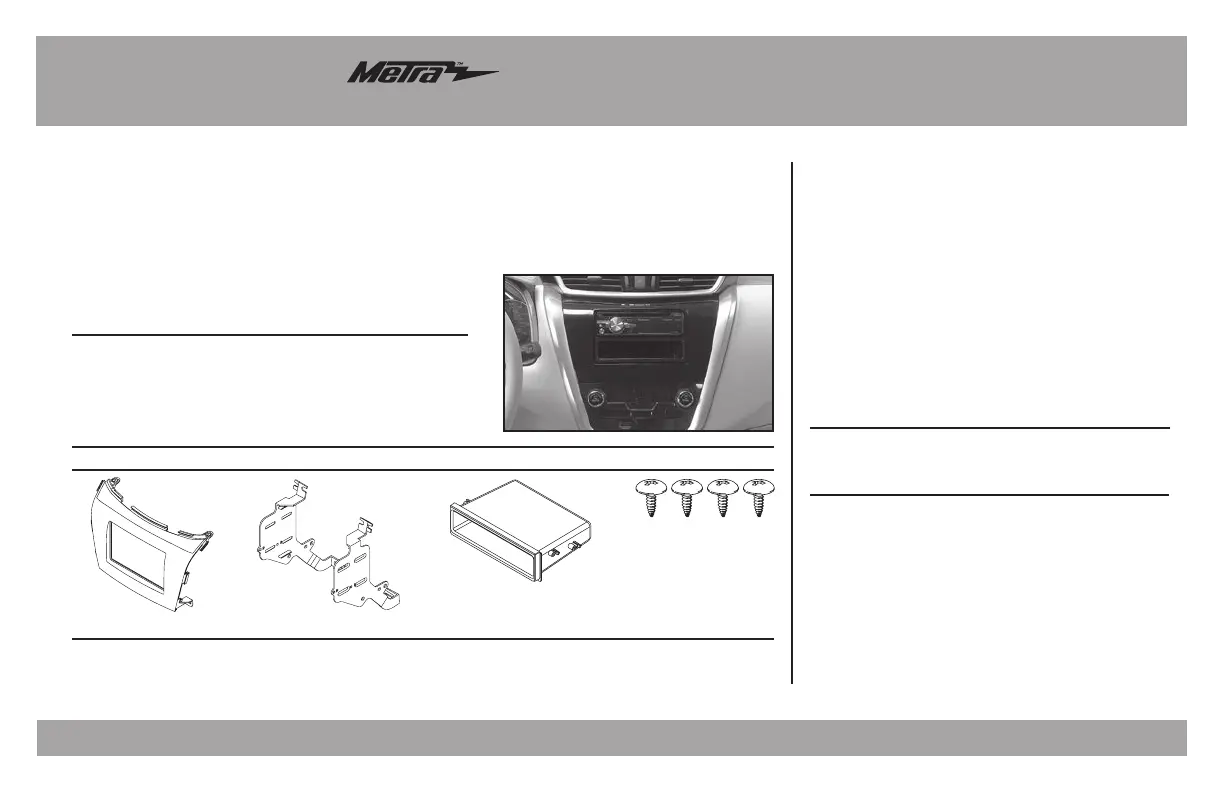

Installation instructions for part 99-7628BHG
• A) Radio housing trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws
20;*64765,5;:
>0905.(5;,55(*655,*;065: (sold separately)
Wiring Harness: • 70-7552
Antenna Adapter: • 40-NI12
• Panel removal tool
• Phillips screwdriver
;663:9,8<09,+
Nissan Murano 2015-up
99-7628BHG
A DCB
Dash Disassembly ................................................. 2
Kit Assembly
– ISO DIN radio provision with pocket ...................... 3
Table of Contents
• ISO DIN radio provision with pocket
• Painted to match factory finish
20;-,(;<9,:
99-7628BHG
2
Dash Disassembly
(Figure A) (Figure E)
(Figure D) (Figure G)
1. Slide down the shifter beauty ring
under the shift knob. (Figure A)
2. Remove the clip from the shift knob
and remove the knob. (Figure A)
3. Starting from the rear, lift and unclip
the console shifter trim panel.
(Figure B)
4. Remove the lower climate control
trim panel and remove. (Figure C)
5. Unscrew (2) Phillips screws securing
the radio/climate control trim.
(Figure D)
6. Remove the radio/climate trim.
(Figure E)
7. Remove (2) Phillips screws securing
the climate control assembly below
the radio and then remove. (Figure F)
8. Remove (2) Phillips screws securing
the vent/hazard trim panel above the
radio and then remove. (Figure F)
9. Remove (4) Phillips screws (2
above and 2 below) from the radio
assembly, then unplug and remove
the radio. (Figure G)
10. Remove the climate control module
from the radio bracket assembly and
set aside for kit assembly.
Continue to kit assembly
(Figure B)
(Figure C)
(Figure F)
99-7628BHG
3
(Figure C)(Figure A)
(Figure B)
Kit Assembly
ISO DIN radio provision with pocket
1. Remove the metal “DIN” sleeve and
trim ring from the aftermarket radio.
2. Attach the radio brackets to the radio
using the screws supplied with the
radio. (Figure A)
3. Attach the pocket to the radio
bracket assembly using (4) #8 x 3/8”
screws supplied. (Figure B)
4. Attach the climate control module
below the completed assembly using
the factory hardware. (Figure C)
5. Locate the factory wiring
harness and antenna connector
in the dash, and complete all
necessary connections to the
radio and climate controls. Metra
recommends using the proper
mating adapter from Metra and/or
AXXESS. Re-connect the negative
battery terminal and test the radio
for proper operation.
6. Reassemble the dash in reverse
order of disassembly, using the
99-7628BHG radio housing
trim panel.

Produktspecifikationer

Varumärke: Metra
Kategori: Inte kategoriserad
