REV. 2/15/2017 INST99-7815B

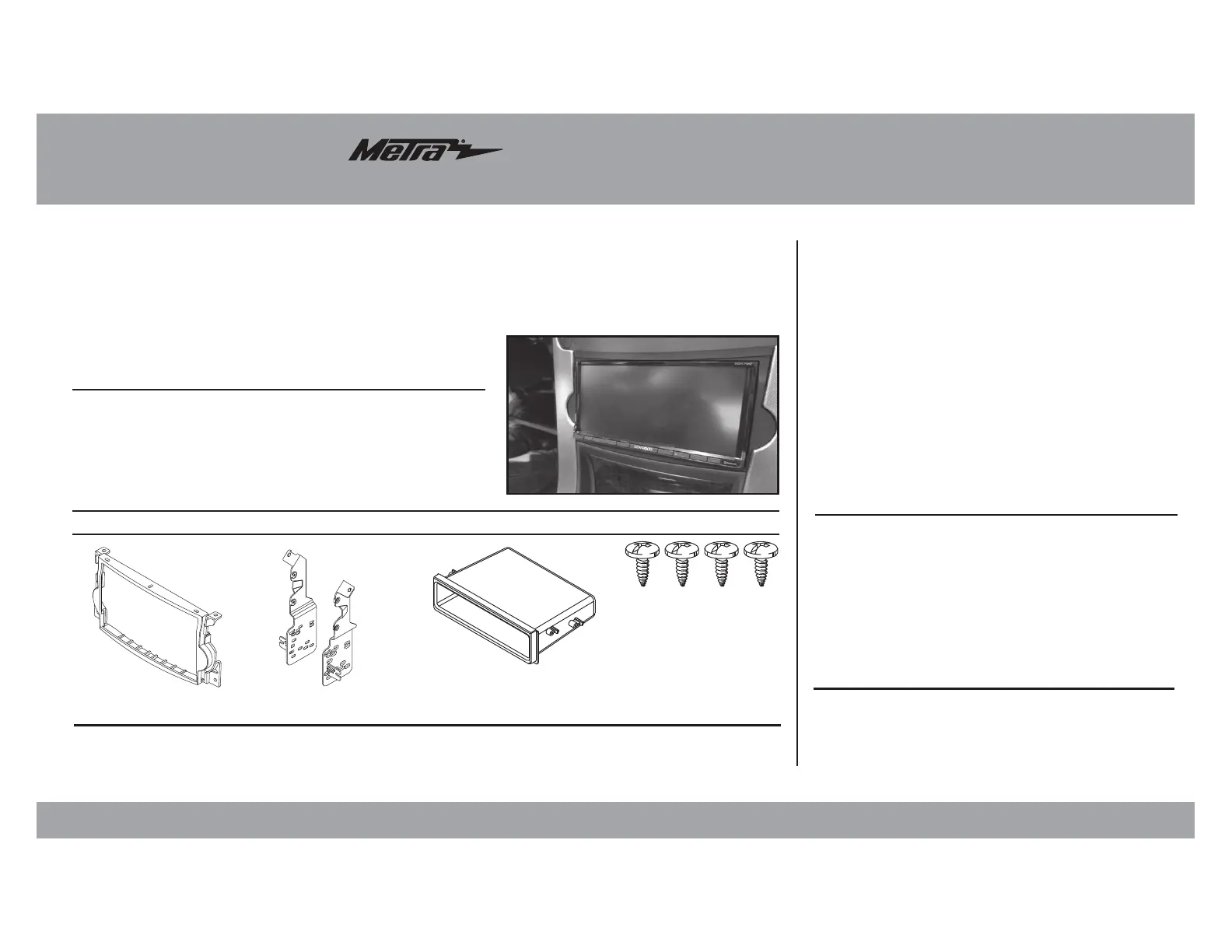

INSTALLATION INSTRUCTIONS FOR PART 99-7815B

CAUTION!

All accessories, switches, climate controls panels,

and especially air bag indicator lights must be connected before

cycling the ignition. Also, do not remove the factory radio with

the key in the on position, or while the vehicle is running.

• ISO DIN radio provision with pocket

• Painted matte black

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws

20;-,(;<9,:

20;*64765,5;:

>0905.(5;,55(*655,*;065:(sold separately)

Wiring Harness: 70-1721 Antenna Adapter: 04-06 not required • 07-08 40-HD10

Steering wheel control interface: ASWC-1

• Panel removal tool • Phillips screwdriver

;663:9,8<09,+

Acura TL 2004-2008

99-7815B

Table of Contents

Dash Disassembly ..............................................2-5

Kit Preparation ....................................................... 6

Kit Assembly .......................................................... 7

A CB D

99-7815B

Dash Disassembly

1. Unclip the trim panels along the

sides of the dash, down to the

console. (Figure A)

2. Remove (9) Phillips screws along

the top of the console, and (2)

Phillips screws inside the console’s

rear storage compartment.

(Figure B)

3. Slide the console back.

Continued on next page

(Figure A)

(Figure B)

Screws to be removed inside

console storage compartment

99-7815B

4. Drop the glove box door, remove

(2) Phillips screws, and (2)

push pins to drop the glove box

assembly. (Figure C)

5. Remove (1) push pin and remove

the driver’s knee panel. (Figure D)

6. Remove (1) Phillips screw from

each side console panel, and

unclip to remove the panels.

(Figure E)

Continued on the next page (Figure E)

(Figure D)

(Figure C)

Dash Disassembly (cont.)
