CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
The World’s best kits.®MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 4/1/20 INST99-8912HG

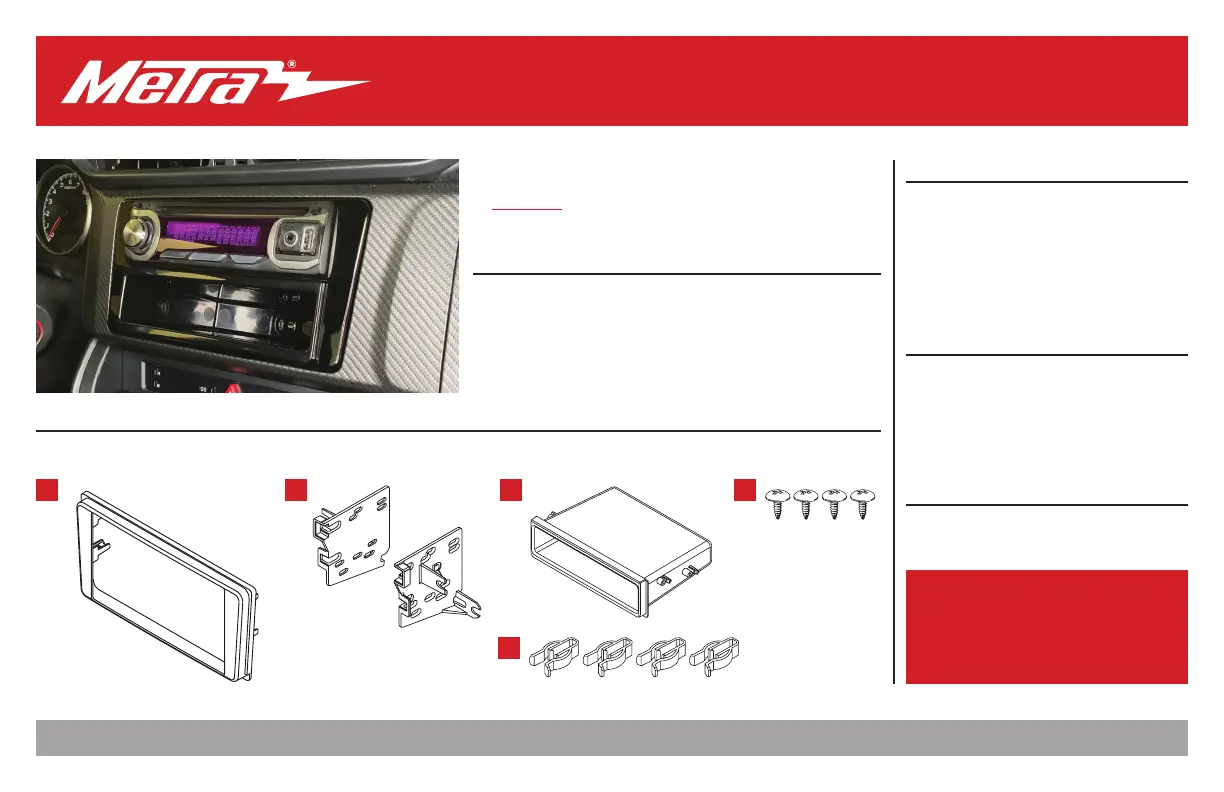

I N S TA L L AT I O N I N S T R U C T I O N S
99-8912HG
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted high gloss black to match the factory finish
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) Phillips screws (4) • E) Panel clips (4)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm socket wrench
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly
– ISO DIN radio provision with pocket .................3
– ISO DDIN radio provision ....................................3
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: 70-1761
Antenna Adapter: 40-LX11
Steering wheel control interface: ASWC-1
A B C D
E
Subaru BRZ 2016-Up
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
386.257.1187
|
MetraOnline.com
2
DASH DISASSEMBLY
1. Unclip and remove the radio trim panel.
(Figure A)
2. Remove (4) 10mm screws securing the
radio. Slide the radio out, then unplug
and remove. (Figure B)
Continue to Kit Assembly
(Figure A) (Figure B)
REV. 4/1/2020 INST99-8912HG 3
KIT ASSEMBLY
DIN radio provision with pocket
1. Attach the (4) provided to panel clips
the (Figure A)radio trim panel
2. Secure the pocket radio brackets to the
using (4) Phillips screws provided.
(Figure B)
3. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
4. Slide the radio into the bracket/pocket
assembly, then secure using screws
supplied with the radio (Figure C)
5.
Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to the
radio. Metra recommends using the proper
mating adapter from Metra and/or AXXESS.
Test the radio for proper operation.
6. Slide the radio into the dash, then secure
using the factory screws. Clip the radio
trim panel over the completed assembly
to complete the installation.
ISO DDIN radio provision
1. Attach the (4) provided to panel clips
the (Figure A)radio trim panel
2. Secure the radio brackets to the radio
using screws supplied with the radio.
(Figure B)
3.
Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to the
radio. Metra recommends using the proper
mating adapter from Metra and/or AXXESS.
Test the radio for proper operation
.
4. Slide the radio into the dash, then secure
using the factory screws. Clip the radio
trim panel over the completed assembly
to complete the installation.
(Figure A)
(Figure B)
(Figure A)
(Figure B)
(Figure C)
