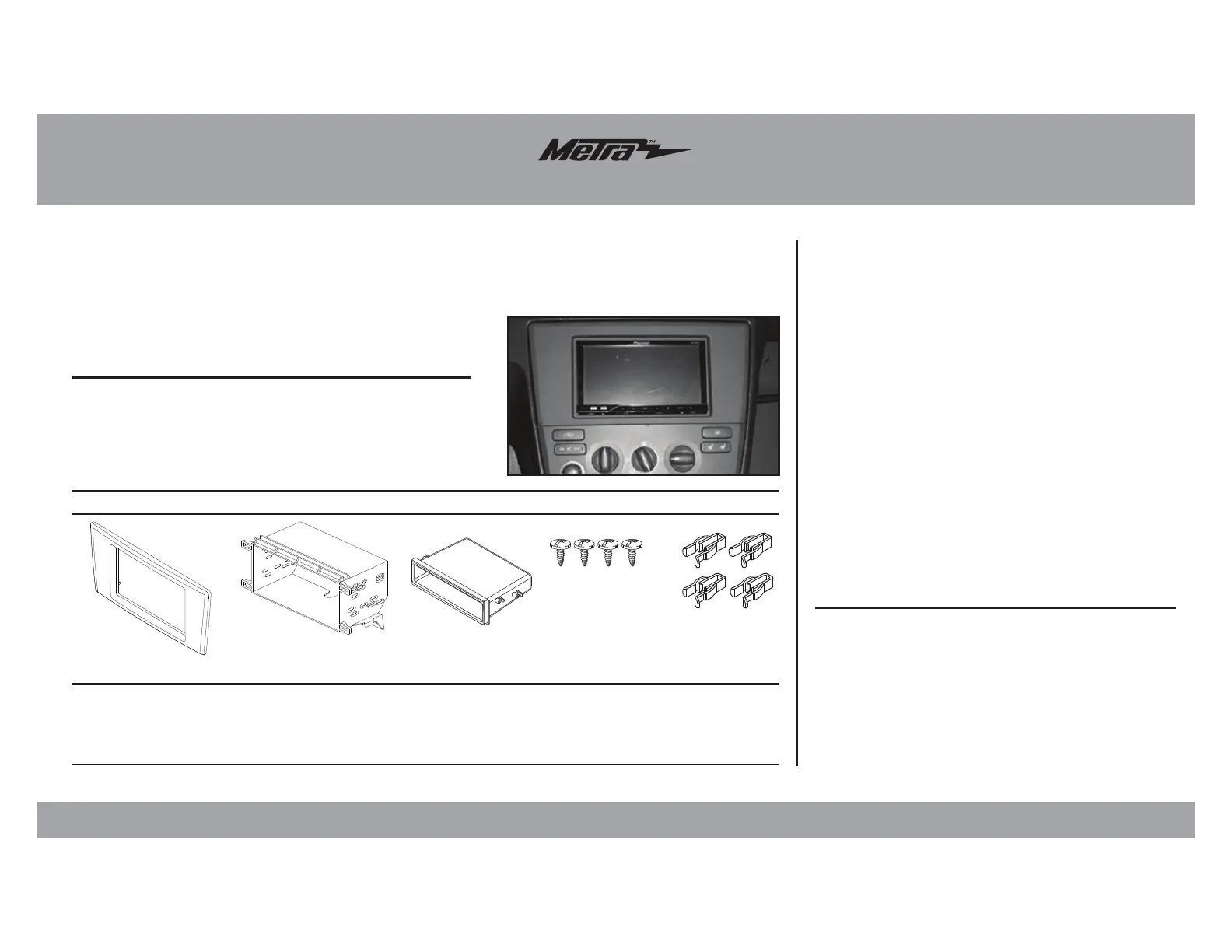

REV. 9/10/2015 INST99-9229G

Installation instructions for part 99-9229G

CAUTION!

Metra recommends disconnecting the negative bat

tery terminal before beginning any installation, unless the vehicle

manufacturer recommends against so. Please check with your local

Dealership for more information. All accessories, switches, climate

controls panels, and especially air bag indicator lights must be con-

nected before reconnecting the battery or cycling the ignition. Also,

do not remove the factory radio with the key in the on position, or the

vehicle running. It would be best to remove the key from the ignition

and then wait a few seconds before removing the factory radio.

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Painted to match factory finish

• A) Radio trim panel • B) Radio housing • C) Pocket • D) (4) #8 x 3/8” Phillips screws • E) (4) Panel clips

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-9221

Antenna Adapter: • 40-VL10

• Panel removal tool • Phillips screwdriver • T-25 Torx driver

TOOLS REQUIRED

Volvo S60/V70 2001-2004

99-9229G

A B C

Dash Disassembly ................................................. 2

Kit Assembly

– ISO DIN radio provision with pocket ...................... 3

–ISO DDIN radio provision ...................................... 3

Table of Contents

D E

99-9229G

1. Remove the panel between the

climate control and gear selector.

(Figure A)

2. Move the gear selector as far back

as possible, unsnap the panel

surrounding it, and then rotate it

45 degrees either way. (Figure B)

3. Remove (2) T-25 screws now

exposed securing the climate

control panel to the vehicle, and

then remove. (Figure C)

Continue to 3 a.

Dash Disassembly

a. Angle the panel outwards so

that it is possible to insert a

couple of fingers between the

center console and the side of

the panel. (Figure D)

b. Remove the panel by pulling

it downward, maintaining the

same angle. Some force is

required because the panel is

tightly installed. (Figure D)

c. Do not unplug the connectors.

Place the panel to one side instead

4. Remove (2) T-25 Torx screws

securing the radio, and then

remove. (Figure E)

5. Remove the sub-dash bracket from

the radio, and then remove.

a. Remove (5) T-25 Torx screws

securing the bracket. (Figure F)

b. Depress the snaps on the top

and bottom of the pocket.

(Figure G)

Continue to kit assembly

(Figure B) (Figure E)

(Figure A)

(Figure C) (Figure F)

(Figure D) (Figure G)

99-9229G

Kit Assembly

ISO DIN radio provision with pocket

1. Secure the pocket radio to the

housing using (4) #8 x 3/8” Phillips

screws provided. (Figure A)

Note: Rounded edge of pocket

faces towards the bottom.

2. Remove the metal DIN sleeve and

trim ring from the aftermarket radio.

3. Slide the radio into the completed

assembly, and then secure it to the

assembly using screws supplied

with the radio. (Figure A)

Locate the factory wiring harness and

antenna connector in the dash, and

complete all necessary connections to the

radio. Metra recommends using the proper

mating adapter from Metra and/or AXXESS.

Re-connect the negative battery terminal

and test the radio for proper operation.

5. Reassemble the dash in reverse

order of disassembly.

6. Attach (4) panel clips supplied to

the , and then snap radio trim panel

the panel over the radio.

ISO Double DIN radio provision

1. Slide the radio into the radio

housing and secure it using screws

supplied with the radio.

(Figure A)

2. Locate the factory wiring harness

and antenna connector in the

dash, and complete all necessary

connections to the radio. Metra

recommends using the proper

mating adapter from Metra and/or

AXXESS. Re-connect the negative

battery terminal and test the radio

for proper operation.

3. Reassemble the dash in reverse

order of disassembly.

4. Attach (4) panel clips supplied to

the , and then snap radio trim panel

the panel over the radio.

(Figure A) (Figure A)
