CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

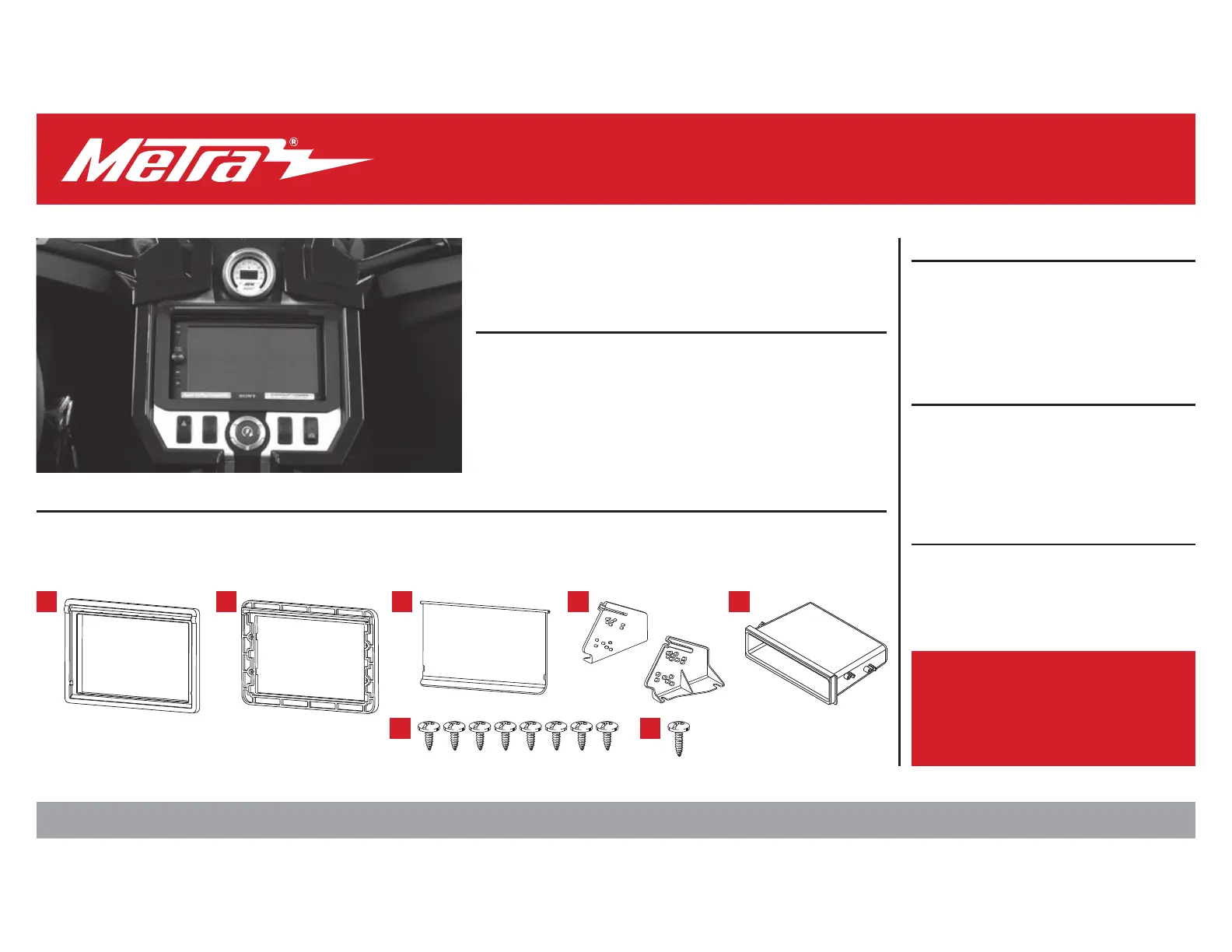

I N S TA L L A T I O N I N S T R U C T I O N S

99-9721

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Textured panel

• Integrated tinted splash guard

KIT COMPONENTS

• A) Radio trim panel • B) Sub-bracket • C) Splash guard • D) Radio brackets • E) Pocket • F) (8) #8 x 3/8” Phillips screws

• G) (1) #6 x 1/2” Phillips screw • H) Felt tape (not shown) TOOLS REQUIRED

• Panel removal tool • 13mm Socket wrench

• T-10, T-25 and T-40 Torx drivers • Pick tool or

small ﬂat blade screwdriver (to remove push pins)

TABLE OF CONTENTS

Dash Disassembly ...............................................2-3

Kit Preparation ................................................... 4-5

Kit Assembly ...................................................... 6-7

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wire harness: • 70-9701

Antenna Adapter: • Not required

A B C D E

F G

Polaris Slingshot 2015-up*

*Visit MetraOnline.com for up-to-date vehicle speciﬁc applications.

1.800.221.0932

MetraOnline.com

1. Remove (4) T-10 screws from the radio

trim, then remove and set aside.

(Figure A)

2. Unclip, then unplug and remove the

radio controller. (Figure B)

3. Remove (3) T-25 screws from the

windshield, then remove and set aside.

4. Unclip the (2) painted panels at the top

of the radio opening. (Figure C)

5. Remove (2) push pins at the top of the

dash/console side trims, then unclip and

remove the trims. Lift up on the Tip:

panel starting from the rear, between

the seats. (Figure D)

Continued on the next page

DASH DISASSEMBLY

(Figure B)

(Figure A) (Figure C)

(Figure D)

REV. 1/5/2018 INST99-9721 3

DASH DISASSEMBLY (CONT.)

(Figure E)

(Figure F)

(Figure G)

(Figure H)

6. Remove (2) push pins inside the radio

cavity behind the start/stop button.

(Figure E)

7. Remove the 13mm bolt holding each

mirror to its base, then set the mirrors

aside. The bases do not need to Note:

be removed, but can be if so desired.

(Figure F)

8. Remove (2) T-25 screws from

underneath each of the (2) painted dash

side trims from under the front side

of each trim, then unclip and remove.

(Figure G)

9. Remove (8) T-40 screws holding the

top dash panel, then if the mirror bases

were not removed in step 7, pull each

side over the mirror base (1 side at a

time). (Figure H)

10. Lift the dash trim and unplug the

buttons and switches by the radio

opening. (Figure H)

11. The dash panel is now free, lift up to

remove and set aside. (Figure H)

Continue to Kit Preparation
