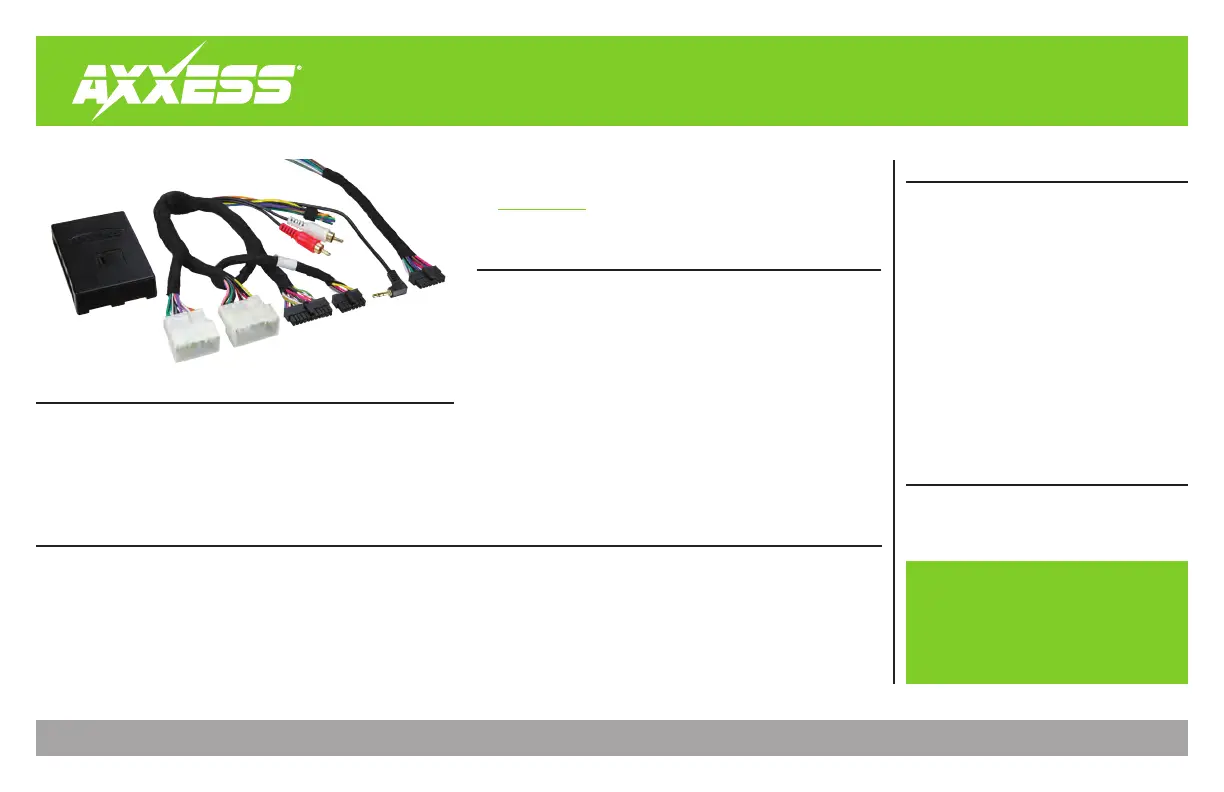

AX-HYKIA1-SWC
I N S TA L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 4/18/22 INSTAX-HYKIA1-SWC
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer to the instructions included with
the aftermarket radio.
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun, solder,
and heat shrink • Tape • Wire cutter • Zip ties
TABLE OF CONTENTS
Connections ........................................................ 2-4
Installation .............................................................5
Programming .........................................................6
Steering Wheel Control Settings ...................... 7-9
L.E.D. feedback ....................................................5
Changing radio type ...........................................7
Remapping .......................................................7-8
Dual assignment .............................................8-9
Troubleshooting .....................................................9
Hyundai/Kia Data Interface with SWC 2010-2016
APPLICATIONS
INTERFACE FEATURES
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains BlueLink
• Designed for amplified* and non-amplified models**
• Retains balance and fade†
• Micro-B USB updatable
HYUNDAI
Elantra * 2011-2016
Genesis Coupe * 2013-2016
Santa Fe * 2013-2016
Santa Fe Sport * 2014-2016
Sonata * 2011-2016
Sonata Hybrid * 2011-2015
Tucson * 2010-2015
KIA
Optima * 2011-2015
Optima Hybrid * 2011-2016
Sorento (with UVO) * 2011-2013
Sorento * 2014-2016
Soul * 2012-2013
Sportage 2011-2016
INTERFACE COMPONENTS
• AX-HYKIA1-SWC interface
• AX-HYKIA1-SWC harness
• 16-pin harness with stripped leads
• Female 3.5mm connector with stripped leads
* Requires the AX-HYKIA-SPDIF (sold separately)
** Bristol Audio Systems not covered
† Non-amplified models only
* Without NAV
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle specific applications
2
NON-AMPLIFIED VEHICLES
Interface
22 Pin
16 Pin
Vehicle Connectors
8 Pin
SWC Jack
Red
White
AUX IN RETENTION
14 Pin
18 Pin
24 Pin
}
DO NOT USE
USB RETENTION
Back-up Camera
Camera Power 6 Volt
Camera Ground
Back-up Camera
USB Cable
16 Pin
Connect for
Non-Amplified Vehicles
Black - Ground
Yellow - Constant
Blue - Power antenna
Orange - Illumination
Blue/Pink - SVS
Green - Left Rear (+)
Green/Black - Left Rear (-)
Purple - Right Rear (+)
Purple/Black - Left Rear
(-)
(A) DO NOT USE
(B) DO NOT USE
White - Left Front (+)
White/Black - Left Front (-)
Gr ont (+)ay - Right Fr
Gray/Black - Right Front (-)
Red - Accessory
Blue/White - Amp turn-on
Brown - Mute
Gr eeen/Purple - Revers
Light Green - Parking Brake
Gr eeen/Purple - Revers
Light Green - Parking Brake
Vehicles with Bristol Audio
systems are not covered.
IMPORTANT!
3
REV. 4/18/22 INSTAX-HYKIA1-SWC
AMPLIFIED VEHICLES WITHOUT NAVIGATION
Interface
22 Pin
16 Pin
Vehicle Connectors
(A) DO NOT USE
SPDIF
14 Pin
18 Pin
24 Pin
(B) Connect
Sold Separately
Gr eeen/Purple - Revers
Light Green - Parking Brake
Back-up Camera
Camera Power 6 Volt
Camera Ground
Back-up Camera
16 Pin
8 Pin
DO NOT Connect
SWC Jack
Red
White
AUX IN RETENTION
}
USB RETENTION
USB Cable
Black - Ground
Yellow - Constant
Blue - Power antenna
Orange - Illumination
Blue/Pink - SVS
Green - Left Rear (+)
Green/Black - Left Rear (-)
Purple - Right Rear (+)
Purple/Black - Left Rear
(-)
White - Left Front (+)
White/Black - Left Front (-)
Gr ont (+)ay - Right Fr
Gray/Black - Right Front (-)
Red - Accessory
Blue/White - Amp turn-on
Brown - Mute
Vehicles with Bristol Audio
systems are not covered.
IMPORTANT!
