LC-GMRC-LAN-10

I N S TA L L AT I O N I N S T R U C T I O N S

Product Info

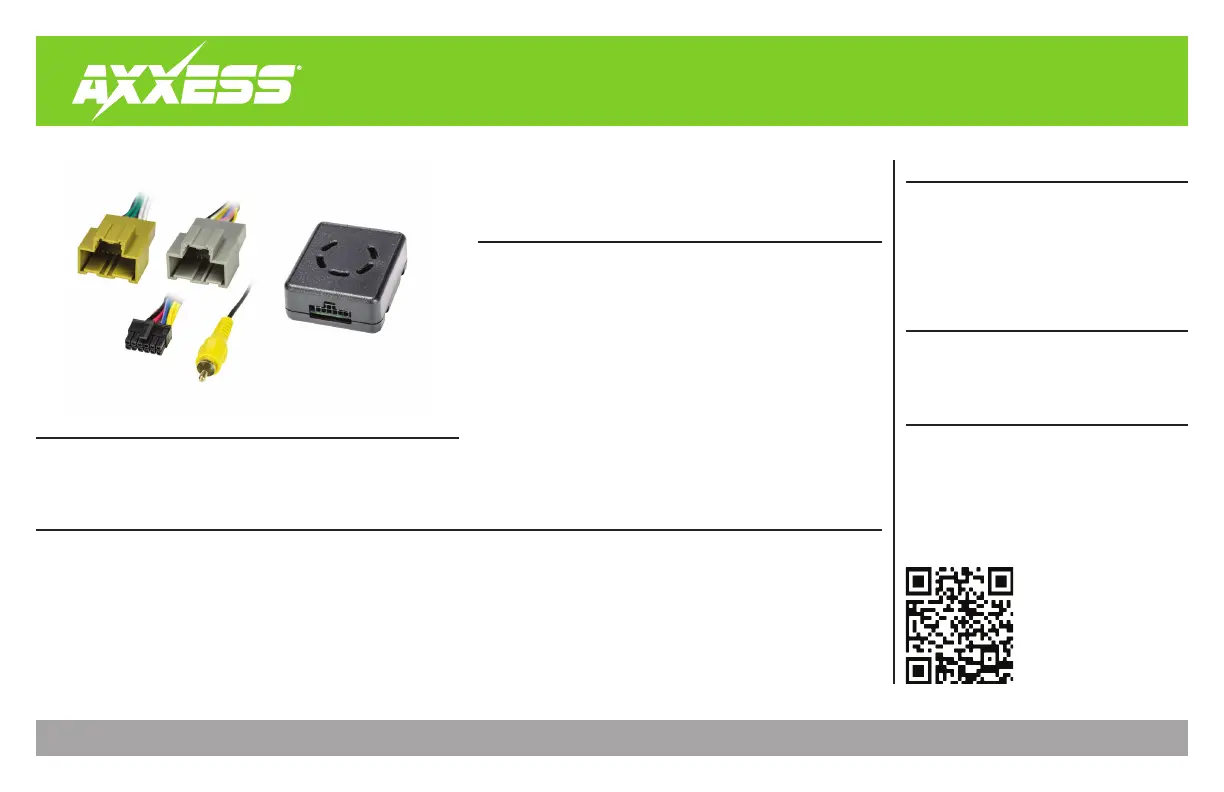

INTERFACE COMPONENTS

OPTIONAL ACCESSORIES (sold separately)

Extension Harness: AX-GMLAN10EXT

TABLE OF CONTENTS

Connections ............................................................2

Installation .............................................................3

Programming .........................................................3

APPLICATIONS

CHEVROLET

Colorado 2017-2019(1)

Cruze 2016-2019(2)

Cruze Hatchback 2016-2019(2)

Equinox 2019(1)

Malibu 2016-2019(2)

Silverado 2016-2019(1)

GMC

Canyon 2017-2019(1)

Sierra 2016-2019(1)

• LC-GMRC-LAN-10 interface

• LC-GMRC-LAN-10 harness

• (1) With RPO code I0B With RPO code I0A • (2)

The IOA/IOB code, if applicable, can be found in the Service Parts Identiﬁcation label located:

Glovebox: Canyon/Colorado/Cruze/Equinox/Silverado/Sierra – Rear Compartment Floor: Malibu

INTERFACE FEATURES

GM Data Interface 2016-2019

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (retained accessory power)

•

Provides illumination, parking brake, reverse, and speed sense outputs

• Used in non-ampliﬁed models, or when bypassing a factory amp

• Retains the factory backup camera

• Used in models without OnStar

• Retains all warning chimes

• High level speaker input

• Retains balance and fade

• Micro-B USB updatable

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties

CONNECTIONS

From the LC-GMRC-LAN-10 harness to the aftermarket radio, connect the:

• wire to the ground wire.Black

• Yellow wire to the battery wire.

• wires (2) to the accessory wire.Red

• Blue/White wire to the amp turn on wire (excluding Bose). This wire must be connected to

hear sound from the factory ampliﬁer.

• Orange wire to the illumination wire (if applicable).

• White wire to the front left positive speaker output.

• White/Black wire to the front left negative speaker output.

• wire to the front right positive speaker output.Gray

• Gray/Black wire to the front right negative speaker output.

• Green wire to the rear left positive speaker output.

• Green/Black wire to the rear left negative speaker output.

• wire to the rear right positive speaker output.Purple

• wire to the rear right negative speaker output.Purple/Black

The following (3) wires are only for multimedia/navigation radios that require these wires.

• wire to the VSS/speed sense wire.Blue/Pink

• Green/Purple wire to the reverse wire.

• Light Green wire to the parking brake wire.

• Yellow RCA jack to the backup camera input. (If the vehicle is equipped with a factory backup

camera.)

REV. 11/18/2019 INSTLC-GMRC-LAN-10

INSTALLATION

PROGRAMMING

With the key in the off position:

1. Locate the factory radio harness in the vehicle and complete all necessary connections to the

aftermarket radio.

2. Connect the LC-GMRC-LAN-10 harness LC-GMRC-LAN-10 interface to the , and then to the

factory radio harness in the vehicle.

Note: For the Equinox and Malibu, use part number AX-GMLAN10EXT (sold separately) to extend

the wiring harness to the right of the glovebox where the radio brain is located at.

Attention: If the interface loses power for any reason, the following steps will need to be

performed again.

Turn the key (or push-to-start button) to the ignition position and wait until the radio comes on

If the radio does not come on within 60 seconds, turn the key to the off position, Note:

disconnect the interface, check all connections, reconnect the interface, and then try again.

2. Cycle the key off, then back on. If the driver’s door is closed, open and close the door.

3. Test all functions of the installation for proper operation, before reassembling the dash.

Note: The vehicle must be running for the factory camera to power on.
