Sida 1/4

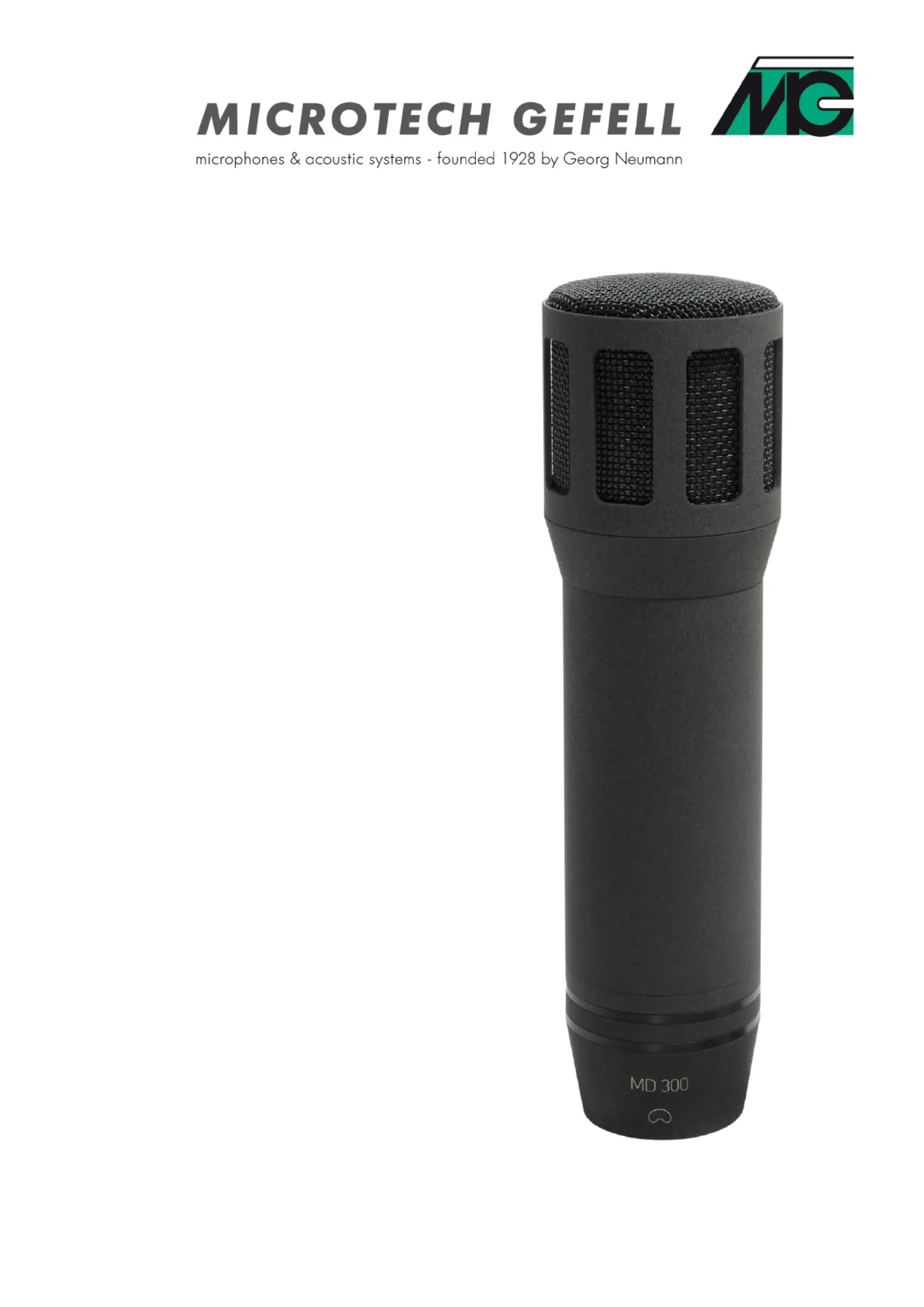

MD 300
Dynamic microphone
with cardioid polar pattern
•optimized for broadcast applications
•frequency response optimized
for intelligibility
•internal elastic capsule suspension
reduces handling noise
•non-re ecting, robustfl
NEXTEL R
�surface
MD 300
Dynamic microphone MD 300
The MD 300 is a high-quality dynamic microphone with a fre-
quency response of the transmission factor that has been
optimized for intelligibility. It is featured with an especially
accurate resolution at high frequencies and a well-balanced
low-frequency transmission. It is insensitive to movements of
the recorded sound source thanks to the cardioid polar pat-
tern.
The MD 300 is useful as close-talking microphone for an-
nouncers of broadcasting services as well as for high-quality
recordings of vocalists and instrumental soloists during live
performances.
Acoustical speci cationsfi
A dynamic capsule with a cardioid polar pattern is inserted
in the MD 300 as sound transducer. The frequency response
has been optimized for low recording distances with an ac-
centuation of approximately 2 dB between 2 kHz and 8 kHz to
raise the speech and high-frequency presence. The change
of the low end frequency response caused by the proximity
effect is well-balanced without a very strong overemphasis
at small microphone distances.
Electrical speci cationsfi
The sound transducer inserted into the MD 300 runs accor-
ding to the moving-coil principle. The microphone is connec-
ted by a standard 3-pin XLR-male plug with a symme-
tric connection assignment. Because of the balanced low-
impedance output, the MD 300 can be used for longer cable
length with negligible distortion. The polarity of the micropho-
ne is in accordance with DIN 60268-4.
Mechanical speci cationsfi
The housing of the microphone is equipped with an inte-
grated internal thread at the plug side that allows xing ela-fi
stic or in exible holders, which are available as accessories.fl
This allows using the microphone with microphone arms or
stand mountings and as handheld microphone. The capsule
is mounted elastically in the housing to attenuate solid-borne
sounds and impulses. If a higher attenuation of such in u-fl
ences is required, it can be achieved by elastic holders and
suspensions, which are available as accessories. Because
of the weight of 330 g without accessories, the MD 300 can
be used for longer periods as handheld microphone with ne-
gligible distortion.
2
Product overview
Delivery
The standard delivery of the MD 300 includes
Dynamic microphone MD 300
Microphone holder MH 80
in carton
NEXTEL R
�S 139 Order-No. 2111155
Accessories
The following accessories are available optionally
Microphone holder MH 80
NEXTEL R
�S 139 Order-No. 202387
Microphone holder, turnable MH 30
NEXTEL R
�S 139 Order-No. 202388
Elastic suspension EA 30
NEXTEL R
�S 139 Order-No. 202389
Elastic suspension EA 92
black matt Order-No. 202359
Connection cable C 70 Order-No. 202212
3
