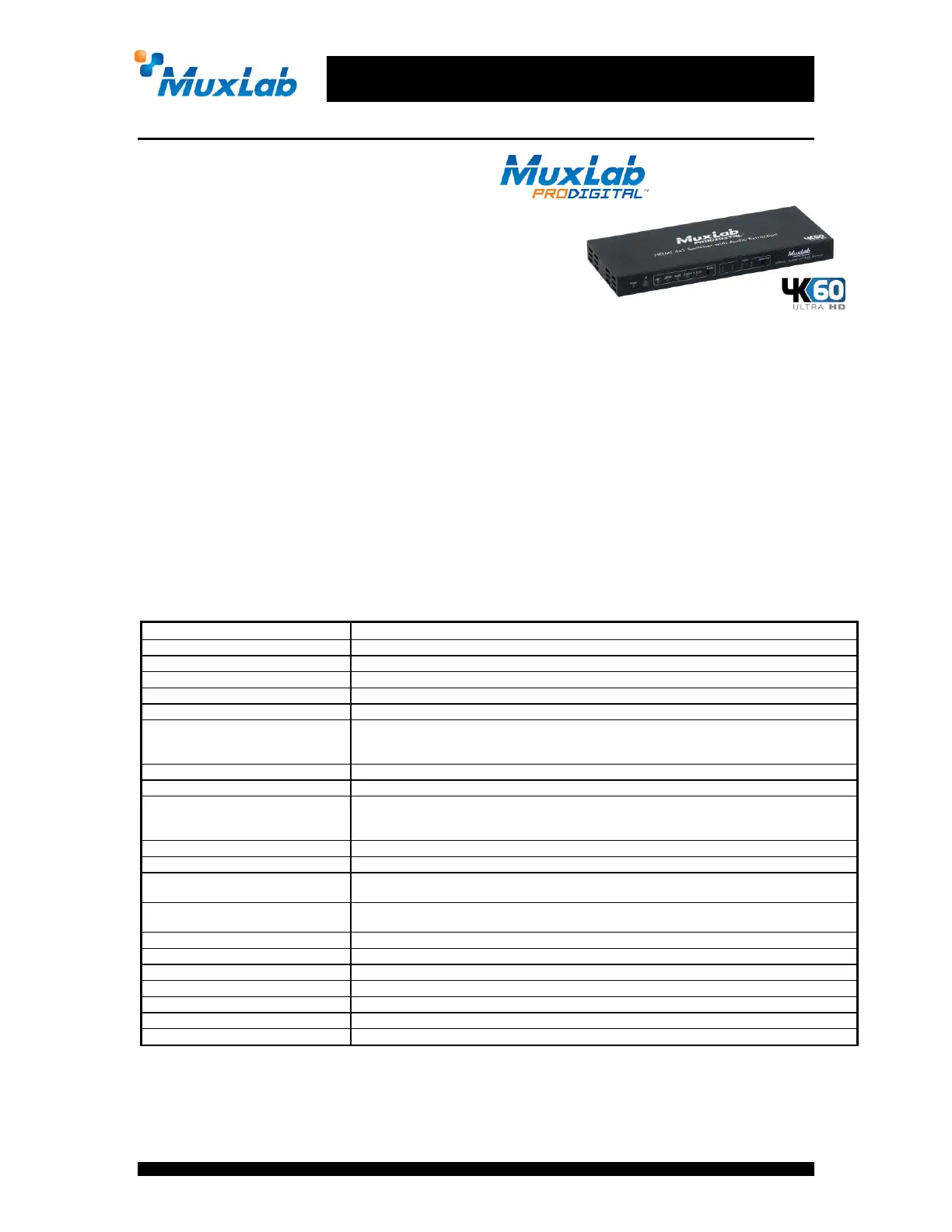

HDMI 4X1 Switcher with Audio Extraction, 4K60
500437
© MuxLab Inc. HDMI 4X1 Switcher with Audio Extraction, 4K60 2018
Overview:
The HDMI 4x1 Switcher with Audio Extraction,
4K/60 allows one of four HDMI sources to be
switched to one HDMI display. The switcher
supports resolutions up to 4K (3840 x 2160) @
60Hz, 8-bit color and HD audio. Extracted digital
audio is available on a S/PDIF Toslink, n and
analog 2CH audio on two (2) RCA jacks Audio .
Return Channel (ARC) is supported, allowing
audio to be returned to the source side to be
connected to audio equipment. Three audio
modes are supported including pass-through,
2CH and 5.1CH audio. The switching and audio
mode selections may be controlled locally via two
(2) push buttons and remotely via IR.
The device is HDCP 2.2 compliant and features
LED diagnostics. Additionally, all HDMI and audio
connectors are on the rear panel for neater
cabling.
Applications:
Commercial and residential AV systems,
classroom projector systems, digital signage,
boardroom systems, collaborative PC systems,
medical information systems.
Key Features:
Switches between four HDMI sources to
one HDMI display
Supports resolutions up to HDMI 2.0 4K/60
(3840 x 2160 @ 60Hz)
Supports 12-bit Deep Color, 3D
Extract LPCM 2.0, Dolby 5.1 and DTS 5.1
audio to digital S/PDIF Toslink and LPCM
2.0 to 2CH RCA Jacks analog
Supports pass-through of LPCM 7.1,
Dolby® TrueHD, Dolby Digital® Plus, Dolby
Atmos, DTS- and DTS:X HD Master Audio™
Push button selects between four HDMI
inputs, and three audio modes (Pass-
through, 2.0 and 5.1 audio)
Support Audio Return Channel (ARC)
IR Remote Control
Environment
HDMI 2.0
Devices
DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops
Transmission
Transparent to the user
Frequency
25 to MHz 594
Video Signal
HDMI 2.0 protocol and HDCP 2.2
Connectors
HDMI Type A 19-pin female
LEDs
One (1) LED for Power
Four (4) LEDs for HDMI select
Five (5) LEDs for Audio select
Manual Control
Push button at the front of the unit for video input and audio mode select
Remote Control
Included
Resolution
480i to 1080p @ 50/60 fps
1080p @ 24/50/60 fps
3840 X 2160 @ 24/25/30/60 fps
Color
8, 10 & 12 bit
Audio Extraction
Uncompressed (LPCM) or compressed (Dolby, DTS)
Cable
HDMI Video Cable
Optical TosLink and Analog 2CH Audio cable
Temperature
Operating: 0° to 40°C Storage: -20° to 60°C
Humidity: up to 90% non-condensing
Enclosure
Metal enclosure
Dimensions
10.63” x 4.33” x 1.18” (270 mm x 110 mm x 30 mm)
Weight
3.2 lbs (1.45 Kg)
Power Supply
5VDC, 2A with interchangeable blade for US, UK and Euro
Compliance
Regulatory: FCC, CE, RoHS
Warranty
2 years
Order Information
500437 HDMI 4X1 Switcher with Audio Extraction, 4K60 (UPC: 627699004371)
HDMI 4X1 Switcher with Audio Extraction, 4K60
5 70043
__________________________________________________________________________________
© MuxLab Inc. 2018 HDMI 4X1 Switcher with Audio Extraction, 4K60
MuxLab Inc.
8495 Dalton Road, Mount Royal, Quebec, Canada, H4T 1V5
Tel: (514) 905 0588 Fax: (514) 905 0589
Toll Free:1 877 689- 5228
E-mail: videoease@muxlab.com
www.muxlab.com
