Sida 1/76
BTRC100BK
MANUAL (p. 2)
ANLEITUNG (S. 5)
MODE D’EMPLOI (p. 8)
GEBRUIKSAANWIJZING (p. 11)
MANUALE (p. 14)
MANUAL DE USO (p. 17)
MANUAL (p. 20)
HASZNÁLATI ÚTMUTATÓ (o. 23)
KÄYTTÖOHJE (s. 26)
BRUKSANVISNING (s. 29)
NÁVOD K POUŽITÍ (s. 32)
MANUAL DE UTILIZARE (p. 35)
ΕΓΧΕΙΡΙΔΙΟ XPHΣHΣ (σελ. 38)
BRUGERVEJLEDNING (s. 41)
VEILEDNING (s. 44)
ИНСТРУКЦИЯ (47 стр.)
KILAVUZ (s. 50)
KASUTUSJUHEND (lk. 53)
NÁVOD (s. 56)
ROKASGRĀMATA (lpp. 59)
NAUDOJIMO VADOVAS (62 p.)
PRIRUČNIK (str. 65)
РЪКОВОДСТВО (p. 68)
INSTRUKCJA OBSŁUGI (str. 71)
PRIROČNIK (str. 74)
Audio Transmitter with Bluetooth® Wireless Technology
2

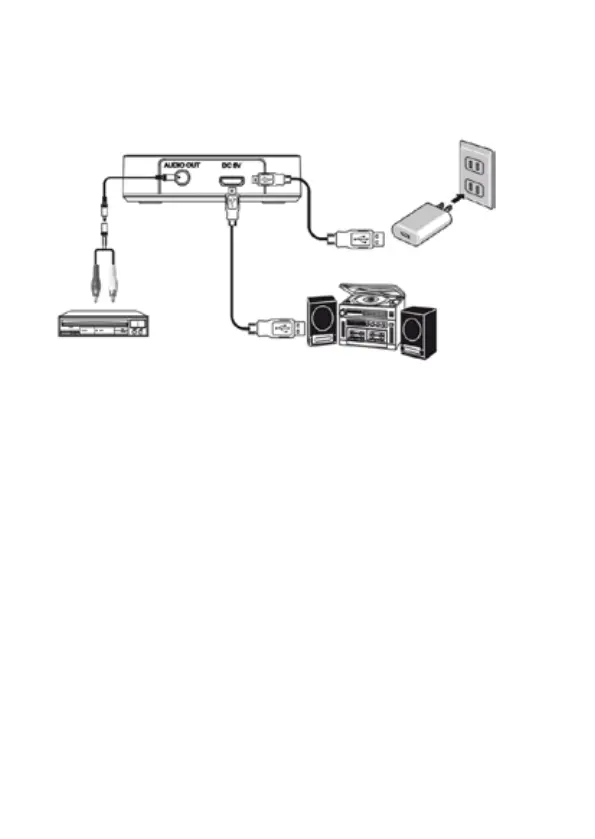

Product view
3.5mm male to male
Audio R/L
Audio amplier
Power via adapter (optional)
Power via USB port of your device
Analogue connection
1. Connect the 3.5mm audio cable connector (incl.) to the headphone socket
of the BTRC100BK.
2. Connect the second audio cable connector to the input of your audio
system or amplier. (Refer to the manual of the device).
3. Connect the USB cable to the BTRC100BK and to a USB port on your audio
system to power the BTRC100BK. You can also use a USB power adapter
(optional).
4. The LED ashes to indicate that the unit is powered and ready to be paired
with your device(s).
Pairing the BTRC100BK
To pair you smartphone or tablet with a Bluetooth® enabled device, check the
device manual.
The BTRC100BK has a capacity to store up to 8 devices so you only have to
enter your PIN once.
Reconnecting your device
If you move out of range or turn o the Bluetooth® feature on your device, you
can easily reconnect by opening the Bluetooth® manager and tap the “music
receiver”.
ENGLISH
3
A connection is automatically established if the BTRC100BK is powered.
If you want to switch from one device to another, follow the steps below:
1. End the existing Bluetooth® connection.
2. The BTRC100BK is now ready to be connected to another device.
3. Follow the instructions “Pairing the BTRC100BK” to connect the new device.
LED indication
Indication Meaning Description
Flash every 5seconds Pairing Searching the device in pairing
mode/waiting for a connection
Constantly switched on Connected BTRC100BK and device are
connected
Troubleshooting
If you do not hear any sound coming from your speakers, check the following:
- make sure the BTRC100BK is powered;
- make sure the audio cable is properly connected to the BTRC100BK;
- make sure the volume is correctly set;
- make sure the devices are at a maximum distance of 10metres of the audio
transmitter;
- make sure the Bluetooth® function on your device is activated;
- make sure that there is music playing on your device.

Produktspecifikationer

Varumärke: Nedis
Kategori: Audiostreamer
Modell: BTRC100BK
