Art. no. 805-410
NSH NORDIC A/S
Virkefeltet 4
DK-8740 Braedstrup
Made in PRC
1
DK
SE
GB Canoe swing
Kanogynge
Kanotgunga
NO Kanoswing
FI Kanoottikeinu
DK
SE
GB Instruction
Brugsanvisning
Bruksanvisning
NO Instruktion
FI Ohjeet
2

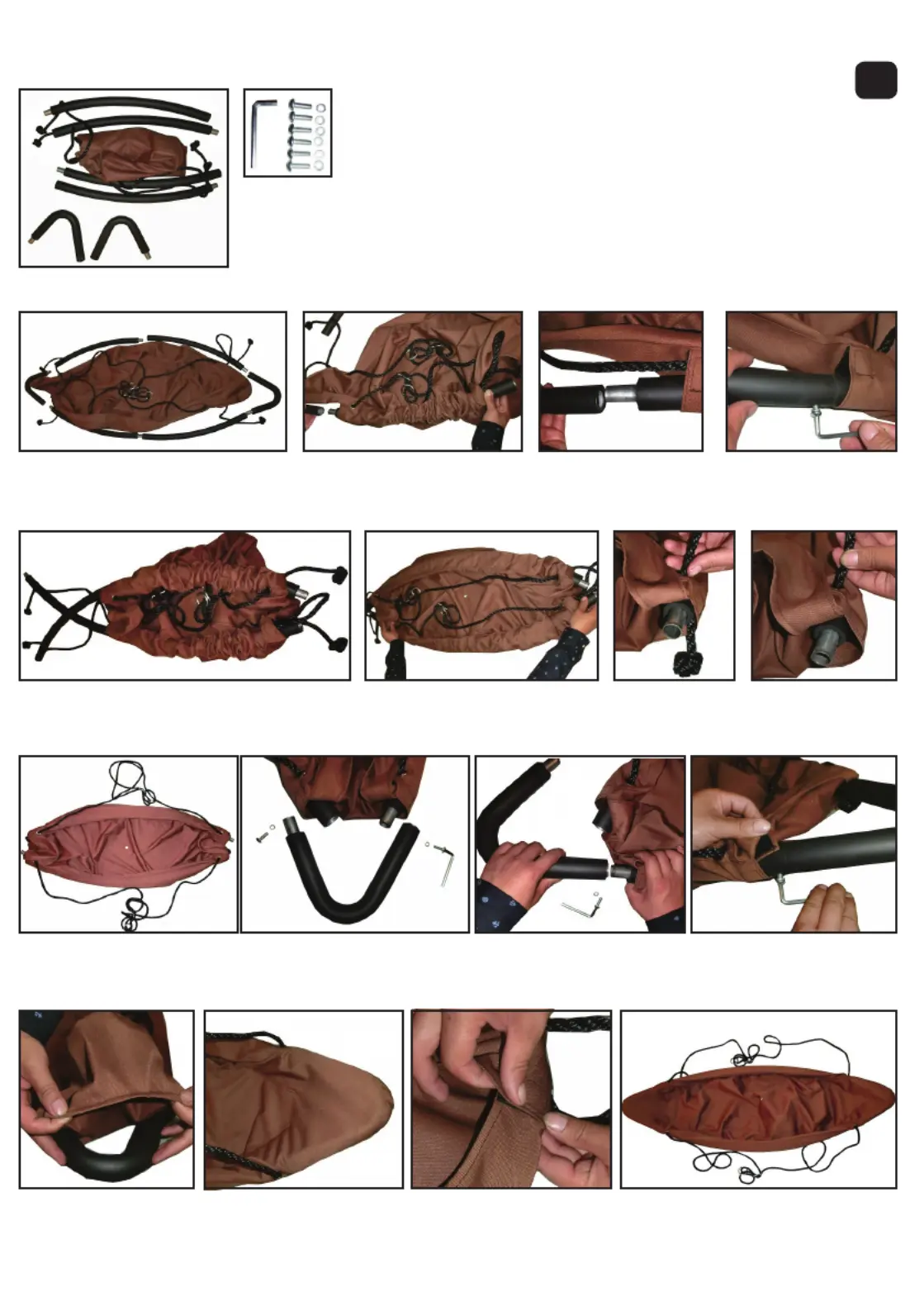

Assembling - WARNING! Adult assembling required!
Content:
1. Place the main body and the 2
triangle corners at the right position.
The opening in both ends must turn
down.
2. Put the metal tube through
the fabric sleeves one by one.
3. Connect the tubes
in the middle on both
sides.
4. Tight it by screw with
washer.
5. Main frame must now look as shown on
picture.
6. Make the 2 fabric sleeves
smoothly after the metal tube
assemble as shown on picture.
7. Pull the
hanging rope
ends to the metal
tube.
8. Repeat step 7 for
alle 4 corners.
9. After the 4 rope ends are
pulled, make the swing body
smooth again before the
triangle ends assembly.
10. Assemble the 2 triangle ends
as shown on the picture.
11. Lock and tight the screws
one by one and repeat the
same step on the other
triangle end.
12. Tight and lock the screws.
13. Put the 2 ends fabric
cover over the triangle
ends.
14. 2 ends cover nished. 15. Fix the 4 velcros close to
the hanging rope
16. Assembly is nished. Keep the
wrench and the manual for future
reference.
GB
3
Installation
Install the swing to the swing clamp of the swing set.1.
Adjust the rope.2.
The distance between the swing and the ground should be at least 35 cm.3.
The distance between an accessory and the frame, should be at least 30 cm.4.
The distance between the swing clamps should be 45 cm.5.
The distance between swinging accessories, should be 45 cm.6.
Check the swing has been installed correctly by hanging in the rope few seconds.7.
Follow the manual for inspection and maintenance.8.
Warnings!
Only for domestic use.
Only for outdoor use.
Maximum user weight is 100 kg.
Suitable for children from 3-10 years.
Maximum number of users is 2.
To be assembled by an adult.
The cross beam must not be higher than 250 cm.
Warning!
The swing may only be used by children sitting or lying.
