Ocean Matrix

812 Kings Highway

Saugerties NY 12477

www.oceanmatrix.com

SAFETY PRECAUTIONS

1. To prevent fire or shock hazard, do not expose this equipment to high

humidity and/or dust. Do not use in an unprotected outdoor installation

nor any area classified as overly damp or wet.

2. The temperature for installation should be kept between 32°F to 140°F

(0°C to 60°C). Avoid direct sunlight exposure or extreme changes of tem-

perature over a short period of time.

3. Do not disassemble the unit or place it on an unstable base.

4. Do not drop the unit and avoid heavy impact.

5. This unit should not be permanently installed unless proper ventilation is

provided. Any enclosure openings must not be blocked or covered as

they protect the unit from overheating.

6. Before cleaning, turn off the power and unplug the unit from all connec-

tions. Use a damp cloth. Do not use liquid cleaners nor aerosol cleaners.

7. Do not overload outlets and extension cords as this may

result in a risk of fire or electric shock.

8. Enclosure entry is dangerous. Never push objects of any kind, including

liquids, into this unit through openings as they may touch dangerous volt-

age points or short-out parts that could result in a fire or electric shock.

9. Do not attempt to open or service this unit yourself as

opening or removing covers may expose you to dangerous voltage and

other hazards.

10. There are no user-serviceable parts inside the unit. If the unit requires

service contact your authorized dealer, or an

authorized repair service company.

USER MANUAL

OMX-12GSDI-1X6

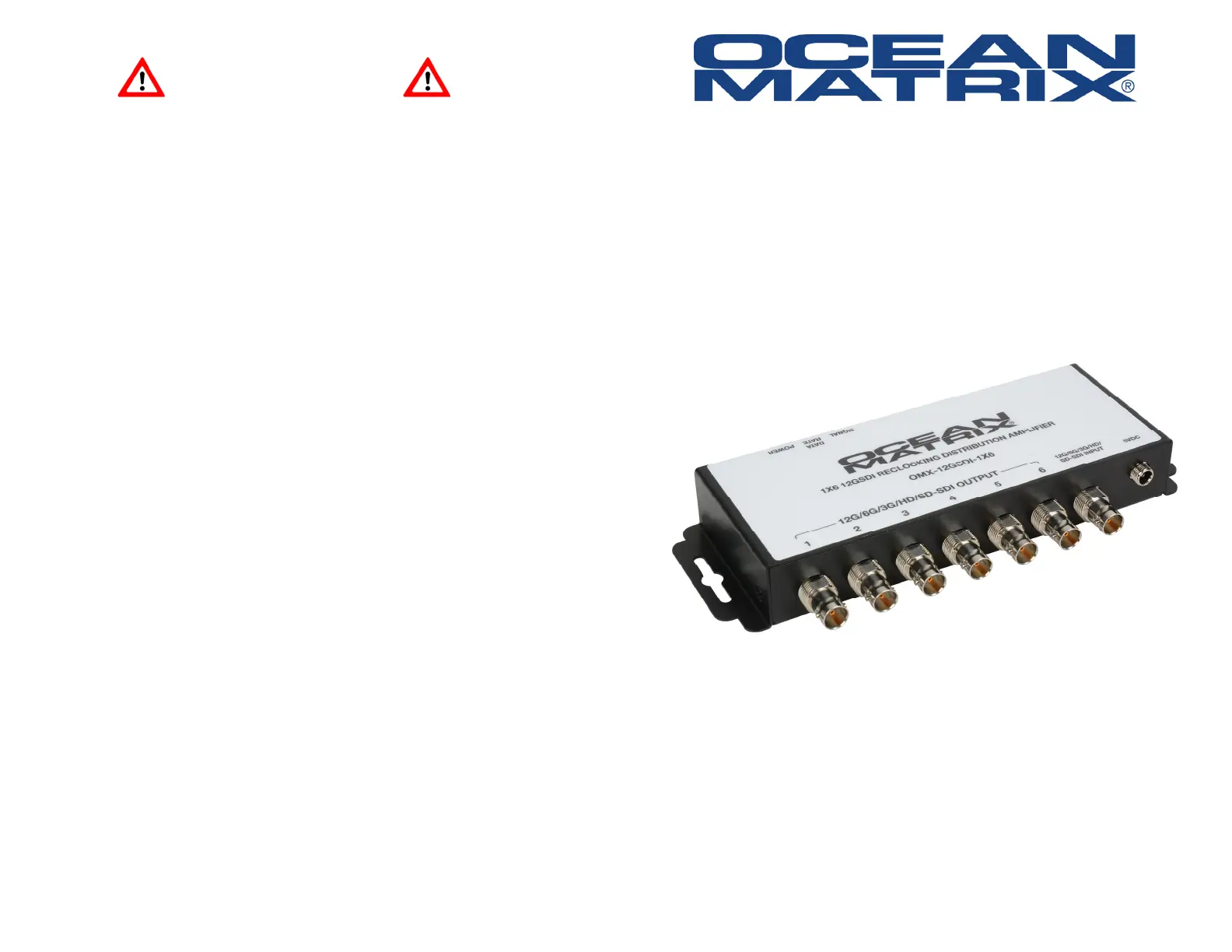

Ocean Matrix OMX-12GSDI-1X6 Reclocking Distribution Amplifier

with 12G/6G/3G Compatibility

Ocean Matrix

812 Kings Highway · Saugerties, NY 12477

www.oceanmatrix.com

OMX-12GSDI-1X6

Reclocking Distribution Amplifier 

The Ocean Matrix OMX-12GSDI-1X6 Reclocking Distribution Amplifier

replicates SDI video signals across 6 outputs for real-time multi viewing

or recording.

This distribution amplifier reclocks and splits one SDI, HD-SDI, 3G-SDI,

6G-SDI, or 12G-SDI input to six SDI compliant outputs using automatic

signal detection. OMX-12GSDI-1X6 supports SMPTE video formats for

HD and UHDTV broadcast requirements, in addition to 2K and 4K SDI

transmission.

Includes: 5V/2A Power Supply

Specifications

SDI Standards SMPTE UHDTV-SDI

Supported Formats DVB-ASI at 270Mbps, SMPTE 259M,

SMPTE 292M, SMPTE 344M, SMPTE

424M, SMPTE425M, SMPTE ST2081,

SMPTE ST2082

Video Bandwidth 11.868 / 11.88Gbps

Data Rates 1.485 / 2.97 / 5.96 / 11.88 Gbps

Cable Equalization up to 1000ft@SD, 500ft@HD, 300ft@3G,

and 150ft@12G

PCB Stack-Up 6-Layer Board/Impedance Control

Differential 100 , single 75Ω Ω

Input/Outputs SDI (BNC 75Ω)

Power Consumption 5W

Operating Temperature 32°F to 104°F (0°C to 40°C)

Dimensions (LxWxH) 8x2.75x1in / 203x6.99x25.4mm with flanges

Weight 1 lb / 0.45 kg

Ocean Matrix OMX-12GSDI-1X6 Page 2

1 3 2

Ocean Matrix OMX-12GSDI-1X6 Page 3

LED Indicators

Lock

Rate

Power

1 12G/6G/3G/HD/SD-SDI Output

2 12G/6G/3G/HD/SD-SDI Input

3 5VDC Power Input

Front Panel

Rear Panel

OMX-12GSDI-1X6 Features

Installation

A Connect 12G/6G/3G/HD/SD-SDI source to input #2 above

B Connect 12G/6G/3G/HD/SD-SDI display or devices to outputs #1 above

C Plug power adapter into the power input #3 above
