Sida 1/8

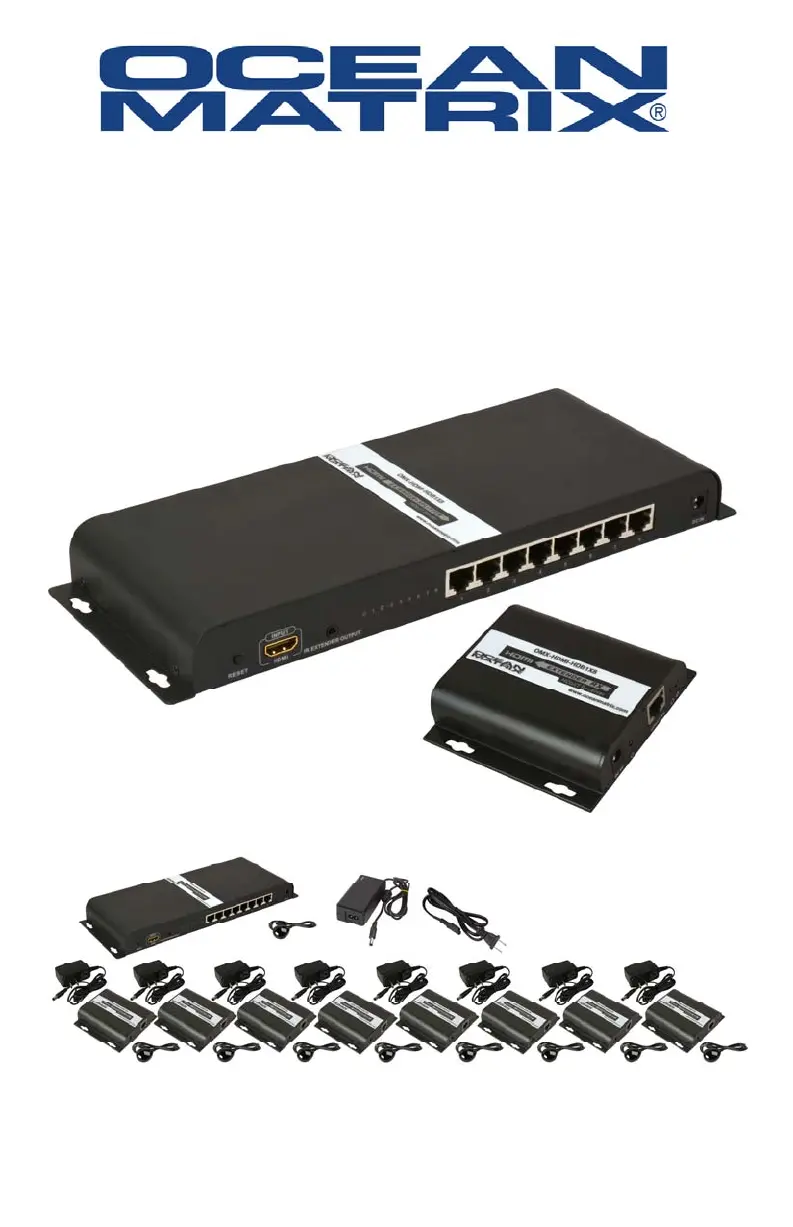

USER MANUAL
OMX-HDMI-HDB1X8
8-port HDMI Splitter Extender over Single Cat5/Cat5e/Cat6
using HDbitT Technology with 8 Receivers
Ocean Matrix
812 Kings Highway · Saugerties, NY 12477
www.oceanmatrix.com
OMX-HDMI-HDB1X8
8-port HDMI Splitter Extender
The Ocean Matrix OMX-HDMI-HDB1X8 Splitter Extender System over
Single Cat6 distributes 1 HDMI source to 8 HDMI displays simultane-
ously. This system extends high definition audio/video transmission be-
yond the standard distances for HDMI cable limitations via HDbitT tech-
nology. The OMX-HDMI-HDB1X8 delivers full 1080P HDMI signal up to
394feet over a single Cat6 network cable. An IR signal transmission
allows for remote control of the source at a secondary location with IR
extension cables.
Includes
One Extender Splitter
Eight Receivers—each receiver includes one IR receiver extension
cable and one 5VDC/1A power adapter
One IR blaster extension cable, connects to transmitter
12VDC/3A power adapter
Specifications
Supported Resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz,
576p@50Hz,720p@50/60Hz, 1080i@50/60Hz,
1080p@50/60Hz
Transport Protocol HDbitT
Transmission Range Full 1080P HDMI signal up to 394 feet
IR Remote Control Supports 20-60kHz standard IR remote controls
Power Supply TX: 12VDC/3A, RX:5VDC/1A
Power Consumption TX: 24W, RX: 3W
Working Temperature 32°F - 140°F (0℃- 60℃)
Dimensions (LxWxH) TX: 11.77x4.36x1.17in(299x110.7x29.6mm)
RX: 3.81x3.70x0.93in (96.8x94x 23.7mm) per unit
Weight Transmitter 0.95 lb., Receiver 0.31 lb. (142g /430g)
HDMI Signal Compatible with HDCP
Ocean Matrix OMX-HDMI-HDB1X8 Page 2
OMX-HDMI-HDB1X8
Installation Requirements
1. HDMI source device such as a video camera, media player,
monitoring equipment or computer.
2. HDMI display device such as an SDTV, HDTV, or projector with
HDMI port.
3. UTP/STP Cat 5/Cat5e/Cat6 network cable in accordance with the
IEEE-568B wiring standard.
4. Transmission length: Cat5-80m, Cat5e-100m, Cat6-120m.
Installation Safety
1. Identify the receiver and the transmitter in order to make proper
connections during installation.
2. Do not hot swap (plug/unplug) when in operation.
3. Only use included power supplies to reduce risk of damage
or injury.
IR User Guide
1. Plug the IR blaster extension cable into the IR-OUT port
of the Transmitter TX.
2. Plug the IR receiver extension cable into the IR-IN port of the
Receiver RX.
3. Place the emitter of the IR blaster as close as possible to the IR
receiver of the signal source device.
4. Direct the IR remote controller of the signal source device towards
the IR receiver (connected to the RX of HDMI extender), to remote
control the source media playback.
Ocean Matrix OMX-HDMI-HDB1X8 Page 3
