USER MANUAL
OMX-3GSDI-SC
3GSDI Extender Over Fiber Optical
Ocean Matrix
812 Kings Highway · Saugerties, NY 12477
www.oceanmatrix.com

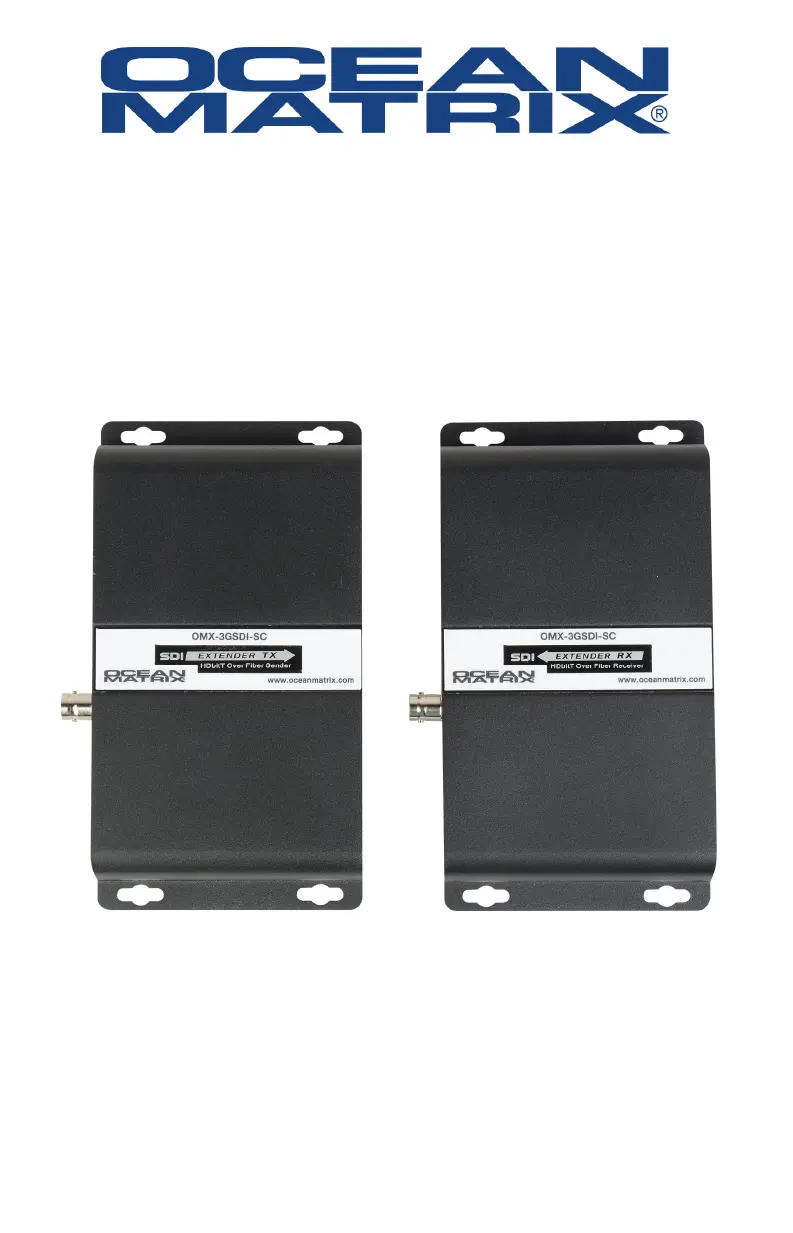

OMX-3GSDI-SC
3GSDI Extender
The Ocean Matrix OMX-3GSDI-SC extends 3GSDI signal transmission
beyond the standard cable distance limitations and transmits 1080p
3GSDI signal over a singlemode SC fiber optic cable up to 12.43 miles
(20km). Consisting of a transmitter and a receiver, this system supports
SD-SDI, HD-SDI and 3G-SDI signal input.
IR signal transmission allows for remote control of the source at a
secondary location using IR extension cables.
Includes
One transmitter
One receiver
Two 5VDC/2A power adapters
One IR blaster extension cable, connects to transmitter
One IR receiver extension cable, connects to receiver
Specifications
Supported Resolutions SD-SDI 480i@60Hz, 576i@50Hz
HD-SDI 720p@50/60Hz,1080i@50/60Hz,1080p@24/25/30Hz
3GSDI 1080p@50/60Hz
SDI Signal Format SD-SDI, HD-SDI, 3GSDI
SDI Rate 270Mb/s，1.485Gb/s，2.97Gb/s
Transmission Range 1080p resolution up to 12.43 miles (20km) over singlemode
IR Remote Control Supports 20-60kHz standard IR remote controls
Power Supply 5VDC/2A
Power Consumption Transmitter 10W, Receiver 10W
Working Temperature 32°F - 140°F (0°C- 60°C)
Dimensions (LxWxH) 6.6 x 3.74 x 0.87 in (168 x 95 x 22mm) TX & RX
Weight Transmitter: 14 oz (400g), Receiver: 14 oz (400g)
SDI Resistance 75Ω
Ocean Matrix OMX-3GSDI-SC Page 2
OMX-3GSDI-SC
Installation Requirements
1. SDI source device such as a video camera, media player,
monitoring equipment or computer.
2. SDI display device such as an SDTV, HDTV, or projector.
3. SDI cables and singlemode SC fiber optic cables.
Installation Safety
1. Identify the receiver and the transmitter in order to make proper
connections during installation.
2. Do not hot plug/swap when in operation.
3. Use 5VDC power supply only.
IR User Guide
1. Plug the IR blaster extension cable into the IR-out port of the Trans-
mitter TX.
2. Plug the the IR receiver extension cable into the IR-IN port of the
Receiver RX.
3. Place the emitter of the IR blaster as close as possible to the IR
receiver of the signal source device.
4. Direct the IR remote controller of the signal source device towards
the IR receiver (connected to the RX of HDMI extender), to remote
control source media playback.
