Product Overview
The AB-1.2 and AB-2.2 are dual-source selector
switches that allow a single pair of speakers to be
driven by either of two amplifiers or allow a single
amplifier to drive either of two pair of speakers.
The AB-1.2 and AB-2.2 are well-suited for situa-
tions where a local source such as a TV or amp
shares a pair of speakers with the whole-house
sound distribution system. The AB-1.2 and
AB-2.2 can also be used in settings where one
system powers two pair of speakers, each pair
located in a different area.
The AB-1.2 is a single-gang in-wall unit and the
AB-2.2 is a tabletop unit. Each unit has a push-on,
push-off button to switch between dual amplifiers
or dual speaker pairs.

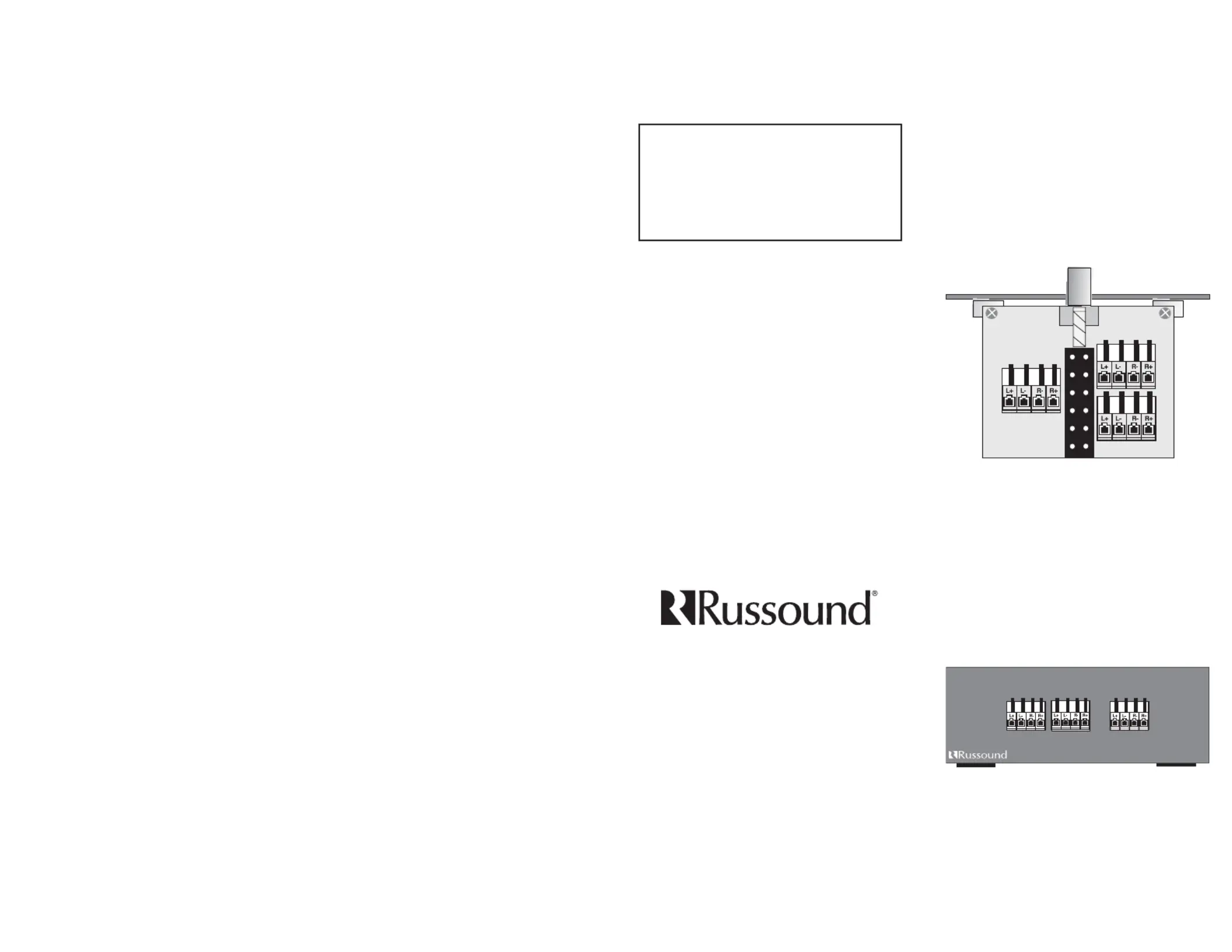

AB-1.2
AB-2.2
Dual Source Selector Switch
Instruction Manual
Limited Warranty
The Russound AB-1.2 and AB-2.2 are fully guaranteed
for ten (10) years from the date of purchase against all
defects in materials and workmanship. For this warran-
ty to apply, the unit must be installed and used accord-
ing to its written instructions.
During this period, Russound will replace any defective
parts and correct any defect in workmanship without
charge for either parts or labor. Accidental damage and
shipping damage are not considered defects under the
terms of this warranty. Russound assumes no responsi-
bility for defects resulting from abuse or servicing per-
formed by an agency or person not specifically author-
ized in writing by Russound. If service is necessary, it
must be performed by Russound. Damage to or
destruction of components due to excessive power
voids the warranty. In these cases, the repair will be
made at the owner’s expense.
To return for repairs, the unit must be shipped to
Russound at the owner’s expense, along with a note
explaining the nature of the service required. Be sure to
pack in a corrugated container with at least 3 inches of
resilient material to protect the unit from damage in
transit.
Before returning a unit for repair, call Russound at (603)
659-5170 for a Return Authorization number. Write the
RA number on the shipping label and ship to:
Russound, ATTN: Service, 5 Forbes Road, Newmarket
NH 03857.
Russound sells product only through authorized Dealers
and Distributors to ensure that customers obtain prop-
er support and service. Any Russound product pur-
chased from an unauthorized dealer or other source,
including retailers, mail order sellers and online sellers
will not be honored or serviced under existing
Russound warranty policy. Any sale of products by an
unauthorized source or other manner not authorized by
Russound shall void the warranty on the applicable
product.
Specifications
AB-1.2
Dimensions: 1”W x 2.75”H x 1.75”D
(25.5 x 70 x 44.5 mm)
Weight: 6 oz. (0.2kg)
Connections: Screwless removable snap
connectors. Accepts up to
14 gauge wire
AB-2.2
Dimensions: 5.5”W x 2.875”H x 3”D
(140 x 73.5 x 76.5 mm)
Weight: 1 lb. (0.5kg)
Connections: Screwless removable snap
connectors. Accepts up to
14 gauge wire
28-0032 Rev. 2
5 Forbes Rd. Newmarket, NH 03857, USA
Tel 603.659.5170 • Fax 603.659.5388
e-mail: tech@russound.com
SPEAKER OUT
AMP B INPUT
AMP A INPUT
RUSSOUND INC
AB-1.2
ATTENUATOR OUT
AMP A AMP B SPEAKERS
DESIGNED IN USA MADE IN CHINA
Newmarket, NH U.S.A
R+R–L–L+ R+R–L–L+ R+R–L–L+
Connection Instructions
1. Strip about 1/4” of insulation from the ends
of all wires to be connected to the unit. If
necessary, twist the exposed strands to
insure that no loose strands exist.
2. Refer to the three connection diagrams on
the reverse side for connection
configurations.
Figures 1-3 depict three connection scenarios
using the AB-1.2 and AB-2.2.
Figure 1: Shows how to connect two
amp/receivers and one pair of
speakers to the AB-1.2.
Figure 2: Shows how to connect one
amp/receiver and two pair of speakers
to the AB-1.2.
Figure 3: Shows how to connect one local
amp/receiver, one multi-zone audio
distribution amp and one pair of local
speakers to the AB-2.2.
NOTE: The AB-1.2 and AB-2.2 function in the
same way. Either unit can be used in these config-
urations, depending on if a wall-mount (AB-1.2) or
shelf-mount (AB-2.2) style is desired.
AB-1.2
AB-2.2
Figure 2
SPEAKER OUT
AMP B INPUT
AMP A INPUT
RUSSOUND INC
AB-1.2
ATTENUAT OR OUT
Amp/Receiver
Speakers
AB-1.2
Speaker Cable
Speaker Cable
Speaker Cable
Amp/Receiver
SPEAKER OUT
AMP B INPUT
AMP A INPUT
RUSSOUND INC
AB-1.2
ATTENUATOR OUT
Amp/Receiver Speakers
Speakers
AB-1.2
Speaker Cable
Speaker Cable
Speaker Cable
Speaker Cable
AMP A AMP B SPEAKERS
DESIGNED IN USA MADE IN CHINA
Newmarket, NH U.S.A
R+R– L–L+ R+R–L–L+ R+R– L–L+
L+ L- R- R+
OUT PUT
L+ L- R- R+
INPUT
P
OWER
1 2 3 4
4 Z
O N E
— 8 C
H A N N E L
A
M P L I F I E R
P
OWER
DPA-4.8
Z
ONE
Local Amp/Receiver
AB-2.2 (back)
Local Speakers
Speaker Cable
ALTx
DPA-4.8
Multi-zone
Distribution
Amp
Speaker Cable
Speaker Cable
Speaker Cable

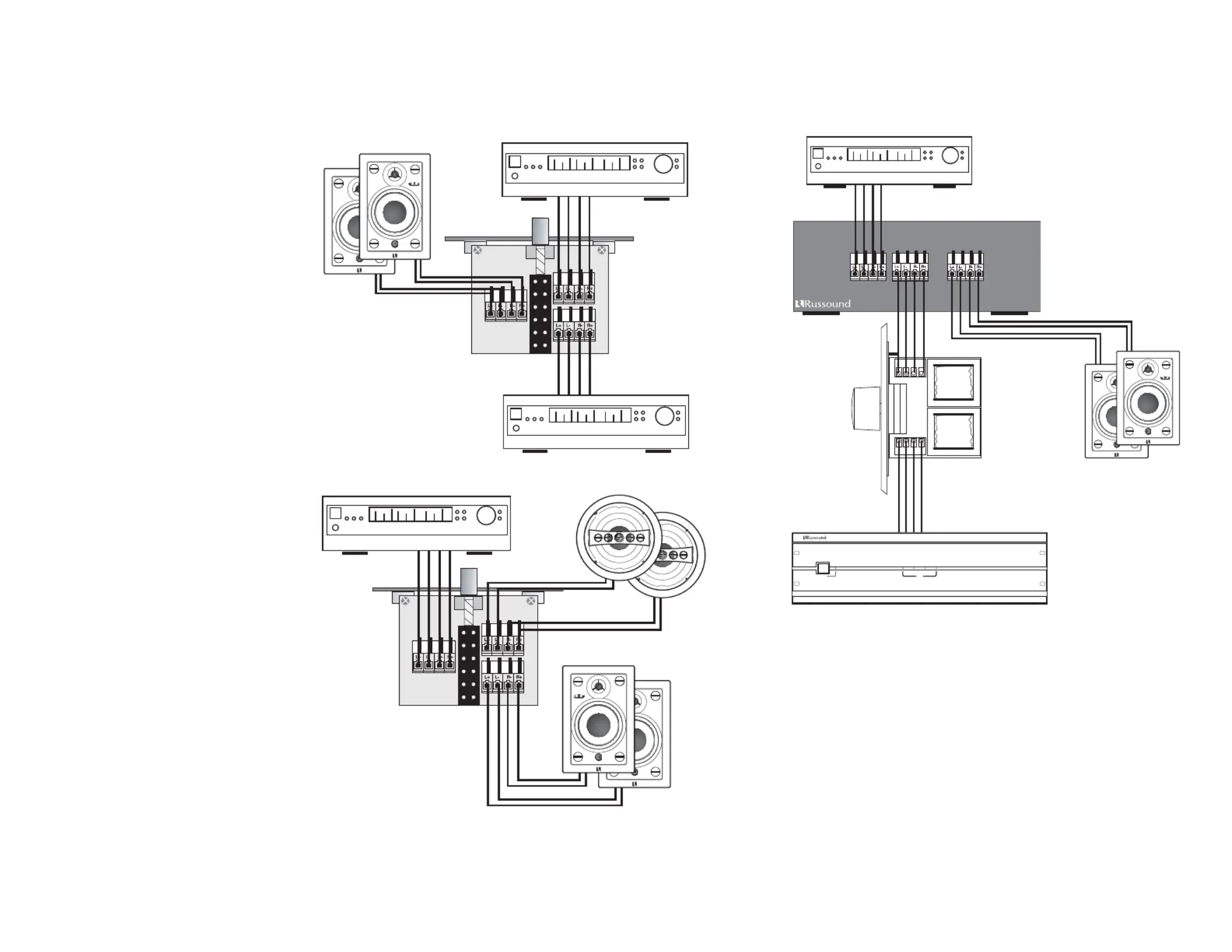

Figure 1
To connect two amp/receivers and one pair of
speakers:
1. Connect the first amp/receiver speaker output to
the Amp A input of the AB-1.2, keeping channel
and polarity consistent.
2. Connect the second amp/receiver speaker output
to the Amp B input of the AB-1.2, keeping
channel and polarity terminations consistent.
3. Connect the speaker pair to the speaker output of
the AB-1.2, keeping channel and polarity
terminations consistent.
To connect one amp/receiver and two pair of speak-
ers:
1. Take leads from the amp/receiver speaker output,
and connect to the speaker output of the AB-1.2,
keeping channel and polarity terminations
consistent.
2. Connect one pair of speakers to the Amp A
input, keeping channel and polarity terminations
consistent. Connect the second pair of speakers
to the Amp B input, keeping channel and
polarity terminations consistent.
Figure 3
To connect one amp/receiver, one multi-zone audio distribution amp and one pair of local
speakers:
1. Connect wires from the amp/receiver speaker output to the Amp A input keeping the
channels and polarity consistent.
2. It is recommended to connect a Russound UltraMatch™ impedance matching volume
control such as the ALTx in between the multi-zone amp and the AB-2.2.
3. Connect the wires from the multi-zone amplifier speaker output (for the desired zone) to
the input connection on the ALTx. Then run wires from the ALTx output to the AMP B
input on the AB-2.2, keeping channel and polarity terminations consistent.
4. Connect the local speaker pair to the speaker connection on the AB-2.2, keeping channel
and polarity terminations consistent.
