Sida 1/8

Portrait Orientation - Default setting

XTS5.5

Wall-mounted Touchscreen

Installation Manual

Overview

The Russound XTS5.5 is an elegant, in-wall

touchscreen with a 5.5” FHD display that is

designed to be a primary user interface for

.metsys oidua dnuossuR elbitapmoc a gnillortnoc

By running the MyRussound™ app, the XTS5.5

allows full control of any zone in a Russound

system and provides metadata feedback from

compatible sources, including song titles, artist

name, album titles, and album art.

Russound

1 Forbes Rd., Newmarket, NH 03857, USA

tel 603.659.5170

www.russound.com

e-mail: tech@russound.com

Limited Warranty

The Russound is guaranteed for one (1) XTS5.5

year from the date of purchase against all defects

in materials and workmanship. During this period

Russound will replace any defective parts and

correct any defect in workmanship without charge

for either parts or labor. For this warranty to apply,

the unit must be installed and used according to its

written instructions. If service is necessary, it must

be performed by Russound. Russound assumes no

responsibility for defects resulting from abuse or

servicing performed by an agency or person not

to or destruction of components due to improper use

voids the warranty. In these cases the repair will be

made at the owner’s expense. Accidental damage and

shipping damage are not considered defects under the

terms of the warranty. To return for repairs, the unit

must be shipped to Russound at the owner’s expense,

along with a Return Authorization number and

documentation explaining the nature of the service

required. Any product returned without prior written

permission will be returned to sender. Russound

sells products only through authorized Dealers and

Distributors to ensure that customers obtain proper

support and service. Any Russound product purchased

from an unauthorized dealer or other source, including

retailers, mail order sellers and online sellers will not be

honored or serviced under existing Russound warranty

policy. Any sale of products by an unauthorized source

or other manner not authorized by Russound shall void

the warranty on the applicable product.

Wall Single gang

electrical box

CAT-5

Mounting bracket Screws

Step 3

Attach the PoE Ethernet cable from the electrical

box to the rear of the XTS5.5 touchscreen. No

other wiring connection is needed.

Note: The XTS5.5 uses a dynamic DHCP network

address. A DHCP-reservation may be used on a

compatible router when a more permanent IP

address is required.

Step 4

Attach the XTS5.5 touchscr n to e mounting ee th

bracket by inserting the prongs of the mounting

plate into e matching slots on e rear of the th th

XTS5.5. M e sure that the XTS5.5 is oriented as ak

shown in the diagram below. There are two captive

mounting screws. Use a Phillips screwdriver to

tighten the screw at both the top and bottom of

the XTS5.5 to secure it i ace.n pl

Installation Instructions

Step 1

Install the electrical box or P-Ring. The typical

recommended mounting height for a wall-

mounted touchscreen is for the center of the

electrical box/p-ring to be at 59” (150cm) from

preference, but the 59” height is recommended

to accommodate all users.

Note: The electrical box/P-Ring must be a

1-gang piece. Make sure that the box/P-ring is

Step 2

Attach the XTS5.5 mounting plate to the electrical

box or P-ring using the supplied screws. The plate

should be unted so that the two prongs at mo

either end are facing into the room. These prongs

will be used for attaching the XTS5.5. to the

orienta on. The plate may be mounted in either ti

orienta on as long as th prongs ac utwards.ti e f e o

01.22. 21, Rev. 1.0

Landscape Orientation - The XTS5.5 may also be installed in a landscape orientation, set the

“ ” setting in the Settings Menu to “ ”Screen Orientation Landscape

Russound

All trademarks are the property of their respective

owners. Specications are subject to change without

notice.

FHD

High resolution HD Display

”5.5 ecnamrofrep hgih a sesuXTS5.5 ehT

IPS LCD display with a maximum resolution of

1920 x 1080. The XTS5.5 display also features

projected capacitive technology, the latest

touch technology used in smartphones and

tablets, enhancing the XTS5.5 with a quicker

response time, high durability, and excellent

optical performance.

Control Always Available

By placing the powerful MyRussound™ app in

a permanent location on a wall, the XTS5.5

gives you full control and easy access to your

Russound system, eliminating the need for your

phone or tablet to simply change the volume or

switch favorites. The XTS5.5 gives you not only

system from one interface but grants full access

and control to your Russound system at any time

by placing the MyRussound App in a permanent

location.

One-touch access to Favorites

From the Now Playing screen, enjoy one-touch

access to your list of system favorites. As soon

as your favorite is selected, your Russound

audio system will automatically switch to the

appropriate source and begin playing your

selection.

Custom features available only on the

XTS5.5

While the XTS5.5 runs the MyRussound app, it

has been customized with additional features

that are needed for an in-wall touchscreen:

Selectable Screen Timeout Delay

The

XTS5.5

provides several options for turning

The options range from no timeout (display

is always active) to up to 10 minutes. There is

also an option called “Follow Zone Power” to

is useful for bedrooms when you would like the

XTS5.5

Clean Screen Mode

The XTS5.5 has a built-in cleaning mode

that allows you to clean the screen while the

touchscreen is active. Cleaning the screen

Display size: 5.5” (140mm)

FHDDisplay type:

Power requirements: PoE Power - 802.3af compatible

Single gang (US and EU) Mounting:

3.4” W x 5.8” H x 1.33” D Dimensions:

87.5 W x 148.5 x 33.7 mm

Weight: 3oz

Installation Requirements:

1-Gang Electrical Box or P-Ring – The XTS5.5 is

designed for mounting into a 1-gang plastic or

metal electrical box. The box must be mounted

from the wall surface. If using a P-ring with

such as the Arlington® LV1LP is recommended.

Wired Ethernet Connection - The XTS5.5

uses a wired Ethernet connection in order to

communicate with other Russound equipment.

The XTS5.5 must be on the same network as

your Russound controller. The XTS5.5 uses DHCP

for obtaining a network address.

The XTS5.5 works with both EIA/TIA 568A and

568B wiring

Phillips Screwdriver (#0)

Used to tighten the captive locking screws

Phillips Screwdriver (#2)

Used to attach the XTS5.5 Mounting

bracket to the Electrical Box/P-Ring

Tools needed

while it’s active can sometimes result in

unwanted button presses. The Clean Screen

mode eliminates this problem. Select EAN CL

SCREEN in the Settings Menu and all button

presses will be ignored until you press and

hold the button on the screen to exit cleaning

mode. Use a soft, slightly damp, lint-free cloth

to clean your XTS5.5. Avoid getting moisture

into openings. Don’t use window cleaners,

household cleaners, compressed air, aerosol

sprays, solvents, ammonia, abrasives, or any

cleaners containing hydrogen peroxide.

Easy updates

Unlike some competitors’ products that run

custom software making it challenging to keep

up-to-date, the XTS5.5 makes it easy to keep

your interface up-to-date with the latest version

of the MyRussound app by performing a simple

update from the admin settings menu.

Networking

The XTS5.5 is an IP-networked device. It

connects to any available Ethernet connection

.rellortnoC dnuossuR eht sa krowten emas eht no

The XTS5.5 uses DHCP to connect to the

network. If a more permanent IP address is

required, use a DHCP reservation for the XTS5.5

Convenient PoE Power

The XTS5.5 is fully PoE compatible and

is designed to connect to an 802.3af (PoE

compatible) network router or switch located

on the same network as the Russound devices

to be controlled. By using PoE (Power over

Ethernet), the XTS5.5 only requires a single

CAT5 connection for both data transmission and

power.

Admin settings

To enter the Admin Settings menu, press and

hold the Settings icon from the Now Playing

Screen for 5 seconds until you see the Admin

Settings menu appear.

IP Address – This setting allows you to adjust

XTS5.5

Russound controller on your network. This IP

address is normally discovered automatically

(using DHCP) and does not need to be adjusted.

Russound recommends not changing this

setting unless instructed to do so by Russound

Technical Support. If a permanent IP address for

the XTS5.5 is desired, set a DHCP reservation

XTS5.5

Enable Developer Options – This setting is for

Clear cache and data – This setting is used to

.XTS5.5 eht no ppa dnuossuRyM eht ”hserfer“

All user preferences will be cleared, and the

app will restart automatically. User preferences

include display timeout settings, screen

brightness, etc. Using “Clear cache and data”

your Russound controller such as room names,

source names, favorites, or account settings

like usernames or passwords.

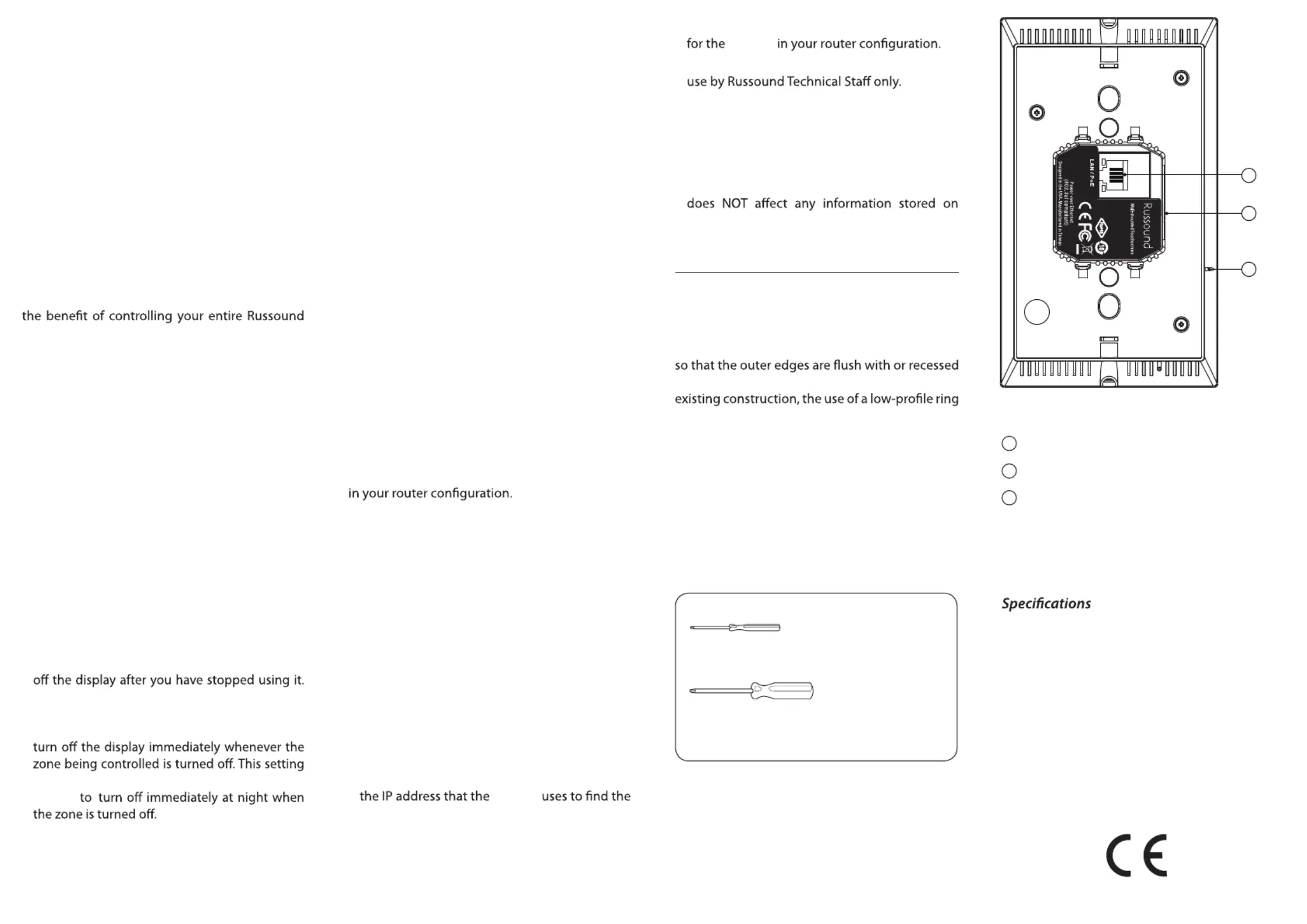

Ethernet port

USB port (factory use only)

Reset button

Back Panel

XTS5.5
