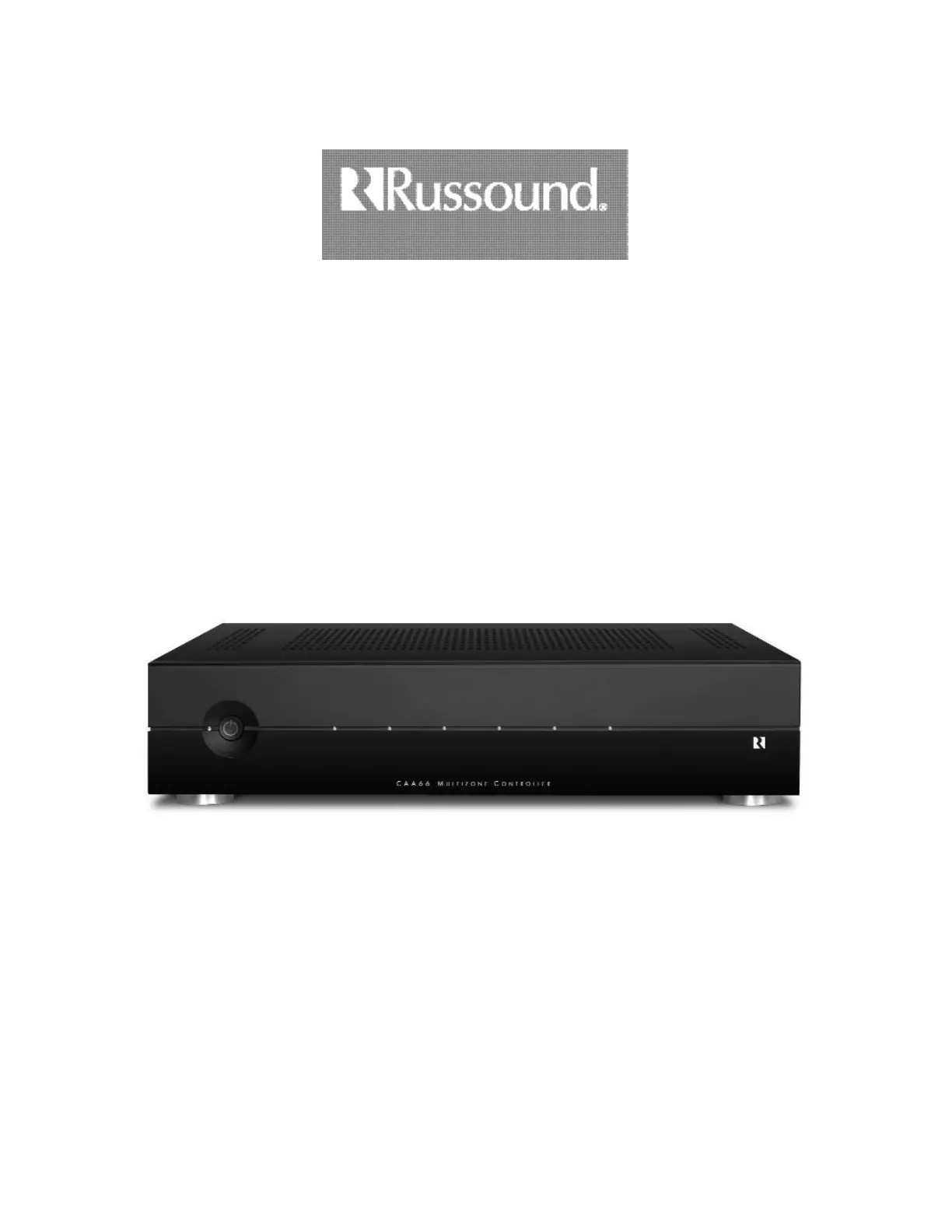

CAA66
Multisource Multiroom
Audio Controller/Amplifier
Installation Manual
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER. NO USER - SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and mainte-
nance (servicing) instructions in the literature accompanying the
appliance.
If you have any questions please call Russound Inc. at
1-800-638-8055 or 603-659-5170.
Safety Instructions:
1. Read Instructions - All the safety and operating instructions should be
read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be
retained for future reference.
3. Heed Warnings - All warnings on the appliance in the operating instruc-
tions should be adhered to.
4. Follow Instructions - All operating and user instructions should be fol-
lowed.
5. Water and Moisture - The appliance should not be used near water; for
example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool.
6. Carts and Stands - The appliance should be
used only with a cart or stand that is recom-
mended by the manufacturer. An appliance
and cart combination should be moved with
care. Quick stops, excessive force and
uneven surfaces may cause the appliance
and cart combination to overturn.
7. Wall or Ceiling Mounting - The appliance should be mounted to a wall
or ceiling only as recommended by the manufacturer.
8. Ventilation - The appliance should be situated so that its location or
position does not interfere with its proper ventilation. For example, the
appliance should not be situated on a bed, sofa, rug, or similar surface
that may block the ventilation openings, or placed in a built-in installa-
tion, such as a bookcase or cabinet that may impede the flow of air
through the ventilation openings.
9. Heat - The appliance should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat.
10.Power Sources - The appliance should be connected to a power supply
only of the type described in the operating instructions or as marked on
the appliance.
11.Grounding or Polarization - Precaution should be taken so that the
grounding or polarization means of an appliance is not defeated.
12.Power Cord Protection - Power supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs, receptacles,
and the point where they exit from the appliance.
13.Cleaning - The appliance should be cleaned only as recommended by
the manufacturer.
14.Non-use Periods - The power cord of the appliance should be
unplugged from the outlet when left unused for a long period of time.
15.Object and Liquid Entry - Care should be taken so that objects do not
fall and liquids are not spilled into the enclosure through the openings.
16.Damage Requiring Service - The appliance should be serviced by quali-
fied service personnel when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen, liquid has been spilled into the appliance; or
C. The appliance has been exposed to rain; or
D.The appliance does not appear to operate normally; or
E. The appliance has been dropped or the enclosure is damaged.
17.Servicing - The user should not attempt to service the appliance beyond
that described in the operating instructions. All other servicing should
be referred to qualified service personnel.
Precautions:
1. Power – WARNING: BEFORE TURNING ON THE POWER FOR THE
FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.
2. Do Not Touch The Unit With Wet Hands – Do not handle the unit or
power cord when your hands are wet or damp. If water or any other liq-
uid enters the cabinet, unplug the unit from power immediately and take
it to a qualified service person for inspection.
3. Location of Unit – Place the unit in a well-ventilated location. Take spe-
cial care to provide plenty of ventilation on all sides of the unit especial-
ly when it is placed in an audio rack. If ventilation is blocked, the unit
may overheat and malfunction. Do not expose the unit to direct sun
light or heating units as the unit internal components temperature may
rise and shorten the life of the components. Avoid damp and dusty
places.
4. Care – From time to time you should wipe off the front and side panels
of the cabinet with a soft cloth. Do not use rough material, thinners,
alcohol or other chemical solvents or cloths since this may damage the
finish or remove the panel lettering.
IMPORTANT SAFEGUARDS
2
USER SECTION
Product Introduction ............................................................................................................5
Component Guide
CAA66 Controller ................................................................................................................6
KP6 Keypad........................................................................................................................7
KPL Keypad .......................................................................................................................8
KPSC Keypad......................................................................................................................9
Numeric Entry................................................................................................................9
Prefix and Suffix Commands ...........................................................................................9
SRC1 Remote Control........................................................................................................10
Operation
KP6 User Options Mode ....................................................................................................11
KPL User Options Mode.....................................................................................................12
INSTALLER SECTION
Getting Started
Unpacking ........................................................................................................................13
System Components .........................................................................................................13
Tools Needed....................................................................................................................13
System Installation Considerations......................................................................................13
Connection Tips ................................................................................................................13
Wiring Instructions
Keypad Wiring...................................................................................................................14
Speaker Wiring .................................................................................................................14
Component Guide
CAA66 Controller Front Panel Removal ...............................................................................15
CAA66 Controller Rear Panel .............................................................................................16
KP6 Keypad Update Port ...................................................................................................17
KP6 Keypad Rear Panel ....................................................................................................18
Keypad Installation
KP6 Keypad Installation .....................................................................................................18
Making Connections
Keypad Port Connections...................................................................................................19
Source Audio Input Connections.........................................................................................20
Source IR Connections ......................................................................................................20
RNET Source Audio Connections........................................................................................21
TABLE OF CONTENTS
