BTA-2

Inline Bluetooth® Local Input Module

for A-BUS® Systems

Installation Manual

Note: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation.

If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment o and

on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that

to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modications to this device not explicitly

approved by manufacturer could void your authority to operate this

equipment.

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including

interference that may cause undesired operation.

This equipment complies with FCC RF radiation exposure limits set

forth for an uncontrolled environment.

This device and its antenna must not be located or operated in

conjunction with any other antenna or transmitter.

Overview

The BTA-2 provides a local wireless input connection

for the purpose of streaming audio from sources such as

smart phones, tablets and computers, etc. with Bluetooth®

capability, to individual A-BUS® equipped rooms. When the

BTA-2 is paired, it will automatically switch the music source

from the main system source to the local source. Bluetooth

This local connection will remain until pairing is disconnected

or the Bluetooth device is out of range for longer than 3

minutes.

Russound, Inc. 1 Forbes Rd., Newmarket, NH 03857, USA

tel 603.659.5170 • fax 603.659.5388 www.russound.com

technical support: 866.888.7466 e-mail: tech@russound.com

28-1398 03.16.15

Limited Warranty

The Russound BTA-2 is guaranteed for two (2) years from the date

of purchase against all defects in materials and workmanship. During

this period Russound will replace any defective parts and correct any

defect in workmanship without charge for either parts or labor. For

this warranty to apply, the unit must be installed and used according

to its written instructions. If service is necessary, it must be performed

by Russound. Russound assumes no responsibility for defects

resulting from abuse or servicing performed by an agency or person

not specically authorized in writing by Russound. Damage to or

destruction of components due to improper use voids the warranty.

In these cases the repair will be made at the owner’s expense.

Accidental damage and shipping damage are not considered defects

under the terms of the warranty. To return for repairs, the unit must

be shipped to Russound at the owner’s expense, along with a Return

Authorization number and documentation explaining the nature

of the service required. Any product returned without prior written

permission will be returned to sender. Russound sells products only

through authorized Dealers and Distributors to ensure that customers

obtain proper support and service. Any Russound product purchased

from an unauthorized dealer or other source, including retailers,

mail order sellers and online sellers will not be honored or serviced

under existing Russound warranty policy. Any sale of products by an

unauthorized source or other manner not authorized by Russound

shall void the warranty on the applicable product.

Safety Instructions

1. Read Instructions - All the safety and operating instructions

should be read before the equipment is operated.

2. Retain Instructions - The safety and operating instructions

should be retained for future reference.

3. Heed Warnings - All warnings on the equipment in the

operating instructions should be adhered to.

4. Follow Instructions - Follow all operating and user

instructions.

5. Water and Moisture - The equipment should not be used

near water; for example, near a bathtub, washbowl, kitchen

sink, laundry tub, in a wet basement, or near a swimming

pool. Not for outdoor use.

6. Heat - The equipment should be situated away from heat

sources such as radiators, heat registers, stoves, or other

equipment (including ampliers) that produce heat.

7. Power Sources - The product should be connected to a

power supply only of the type described in the operating

instructions or as marked on the equipment.

8. Grounding or Polarization - Precaution should be taken

so that the grounding or polarization means of the product

is not defeated.

9. Avoid spills and foreign objects. Ensure liquids and objects

don’t get into the product enclosure through any openings.

10. Damage Requiring Service - The equipment should

be serviced by qualied service personnel when: the power

supply cord or the plug has been damaged; objects have

fallen, liquid has been spilled into the equipment; the

equipment has been exposed to rain; the equipment does

not appear to operate normally; or the equipment has been

dropped or the enclosure is damaged.

11. Servicing - The user should not attempt to service

the equipment beyond that described in the operating

instructions. All other servicing should be referred to qualied

service personnel.

12. Care – From time to time you should wipe any dust

accumulation from the equipment with a soft dry cloth.

the property of their respective owners. Russound is not responsible

for typographical errors or omissions. Specications are subject to

change without notice.

Bluetooth® is a registered trademark of Bluetooth SIG, Inc. Other

trademarks and trade names are the property of their respective owners.

A-BUS® is a registered trademark of LeisureTech Electronics Pty

Ltd Australia. This product may be covered by one or more of the

following patents: US 7,181,023; 7,668,318; 6,389,139;

AU 739808; NZ 502982; MX 241196; Canada CA 2301062.

Connection Instructions

The BTA-2 is connected to the CAT-5 cable line between the hub

and the A-BUS Keypad using RJ-45 connectors (TIA568A). It also can

be wired in series with other local input modules along the CAT-5

cable. The local input module closest to the room’s A-BUS amplied

module, will be the master.

Bluetooth® as a Main Source

The BTA-2 can be used as an input device in small installations, such

as hotel rooms, where transmission range is not a problem. The BTA-2

is connected from its output socket to any A-BUS hub with an input

or Expansion Input. It can also be inserted in a main source CAT-5

cable between input module and hub, overriding the main source

when paired.

Operating Range

Bluetooth devices are intended to provide wireless communication

between enabled devices within a room. The BTA-2 has been

designed to provide reliable operating range in dicult situations.

In good situations, its range can be up to 15 meters (50’); however,

this distance can be reduced signicantly by a number of local

factors such as transmission interference from other communication

devices, electrical wiring and room construction materials, such as

brick walls and concrete oors, etc. When the BTA-2 is operating near

maximum range, the signal may intermittently drop in and out, as

signal strength varies.

Bluetooth Source Volume Level Compatibility

The audio output level from Bluetooth enabled devices can vary

from brand to brand. The BTA-2 has been adjusted to be equal to

the output of most Bluetooth devices; in some cases the level may be

higher. Most devices have their own adjustable volume level and it is

recommended that this is used to adjust the output level to match

the main audio source’s volume level.

Room Identication

Each BTA-2 is identied by an individual code number beginning

with the prex AB (ABxxx). The identication code can be replaced

with individual room name identication (eg. Bedroom, Study, Patio,

etc,) prior to installation. Visit www.russound.com to download

renaming software onto a computer and connect the BTA-2 with the

mini USB cable supplied and follow the on-screen prompts.

Security Pairing Code

When pairing for the rst time, a security code is required. The

default code is 1234. The four digit number can be changed or

switched o in the room naming software. Individual room naming

and discrete security pairing code, must be changed with the

renaming software prior to installation.

Troubleshooting Check List:

Establish an appropriate listening level with the main source before

pairing.

• If no sound is heard, do not adjust output level, as damage may

occur to your speakers.

• Check the music source is active before pairing.

• The blue LED indicates when devices are paired.

• Check source device is connected to WiFi.

• Change music source or app.

• Make sure device is in play mode.

Specications

Bluetooth Input: A-BUS (RJ-45 Socket TIA568A) Ver.4+ EDR,

A2DP, AVRCP, AptX, SBC

Output: A-BUS (RJ-45 Socket TIA568A)

>49’ (15m) - subject to local conditionsOperating Range:

Not paired : Connected to main source Connection:

Paired : streamingBluetooth

Indicator: When paired : Blue LED

via PC (mini-USB)Re-Naming:

Single gang (US)Mounting:

Size: 107 H x 43 W x 25 D (overall 30 D) mm

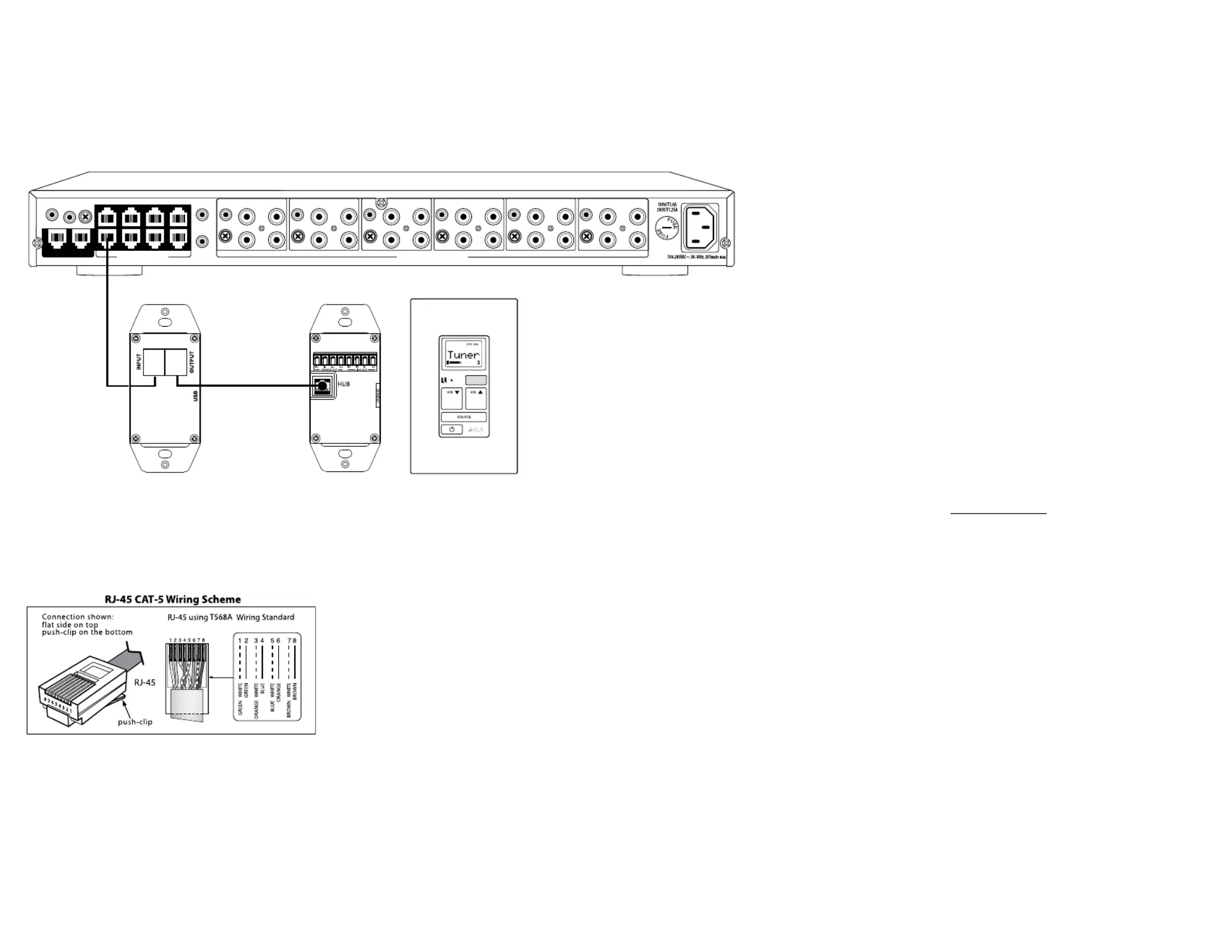

Common IR

12VDC

Trigger Out

100mA

Out puts t o Keypads

1 2 3 4

5 6 7 8

Page

In Page

Trim

Mute In

Source Audio Connections

1 2 3 4 5 6

OutInIR

Control Link

In Out

Src Trim Src Trim Src Trim Src Trim Src Trim Src Trim

A-C68 (or any A-BUS hub)

CAT-5

A-K6L Amplied Keypad. (Also works with A-K4 Keypad)

BTA-2

CAT-5

CAT-5 Cable 150’ Max Length (Total)

Add wireless streaming to your A BUS system

Features

• Simple addition to existing and new A-BUS

installations

• High quality Bluetooth audio using aptX

• Automatic switching for the local Bluetooth

source

• Uses standard A-BUS wiring connections

• Customizable name and password

The BTA-2 is a wall-mounted local input module for A-BUS installations

that allows the easy integration of any Bluetooth® audio source such as

those from a phone or tablet. Whenever a Bluetooth signal is received, the

BTA-2 will automatically switch the active audio source to the Bluetooth

device, making it simple and easy to use by any homeowner.

The advanced radio module with aptXBluetooth ® audio encoding offers a

higher quality audio signal whenever an aptX-enabled Bluetooth device is

utilized as the music source.

The BTA-2 may be used with all A-BUS installations. For installations

where more than one BTA-2 is desired, a Windows® software application is

available free of charge to allow for custom naming of each BTA-2 as well

as to allow for the use of a customized password for security purposes.

Russound | 1 Forbes Road Newmarket, NH 03857 | 603.659.5170 | www.russound.com

Bluetooth is a registered trademark of Bluetooth SIG, Inc. Other trademarks and trade names are the property of their respective owners.

All other trademarks are the property of their respective owners. Russound reserves the right to change speciﬁcations without notice. 06.01.15

Connectors (2) RJ-45 (A-BUS), (1) Mini-USB

Bluetooth Proﬁles Ver. 4+ EDR, A2DP, AVRCP, aptX, SBC

Bluetooth Range Up to 50’ (15m) Depending on local conditions

Dimensions 3.5” H x 1.4” W x 2.4”D, (9cm x 3.6cm x 6.2cm)

Weight 1.6 oz (45 gr)

LEDs (1) Blue to indicate pairing/connection

A-BUS Product Type Local Input Module

Shipping Dimensions 5-5/16” W x 3-5/16” H x 3-1/4” D

(13.5 x 8.4 x 8.26 cm)

Shipping Weight 1 lb (0.45 kg)

Technical Speciﬁcations

Produktspecifikationer

Varumärke:	Russound
Kategori:	hi-fi system
Modell:	BTA-2

Behöver du hjälp?

Om du behöver hjälp med Russound BTA-2 ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

hi-fi system Russound Manualer

Russound CAA66 Bruksanvisning

21 September 2024

Russound USRC Bruksanvisning

21 September 2024

Russound MCA-66 Bruksanvisning

21 September 2024

Russound XTS5.5 Bruksanvisning

21 September 2024

Russound BTA-2 Bruksanvisning

21 September 2024

Russound KPSC Bruksanvisning

21 September 2024

Russound MCA-88 Bruksanvisning

21 September 2024

Russound XTSPlus Bruksanvisning

21 September 2024

Russound ISK2 Bruksanvisning

21 September 2024

Russound TBL-75 Bruksanvisning

21 September 2024

hi-fi system Manualer

Nyaste hi-fi system Manualer

Morel MXT280C Bruksanvisning

27 Oktober 2024

Rotel RSP-975 Bruksanvisning

27 Oktober 2024

Motu Audio Express Bruksanvisning

27 Oktober 2024

Rockford Fosgate HD9813SGU-STAGE2 Bruksanvisning

26 Oktober 2024

Thomson MIC123BT Bruksanvisning

26 Oktober 2024

Samsung MAX-KC930 Bruksanvisning

26 Oktober 2024

Samsung MM-ZL7 Bruksanvisning

26 Oktober 2024

Philips FWM996X Bruksanvisning

24 Oktober 2024

Sony MHC-RV333D Bruksanvisning

21 Oktober 2024

Sony MHC-FR10 Bruksanvisning

20 Oktober 2024
