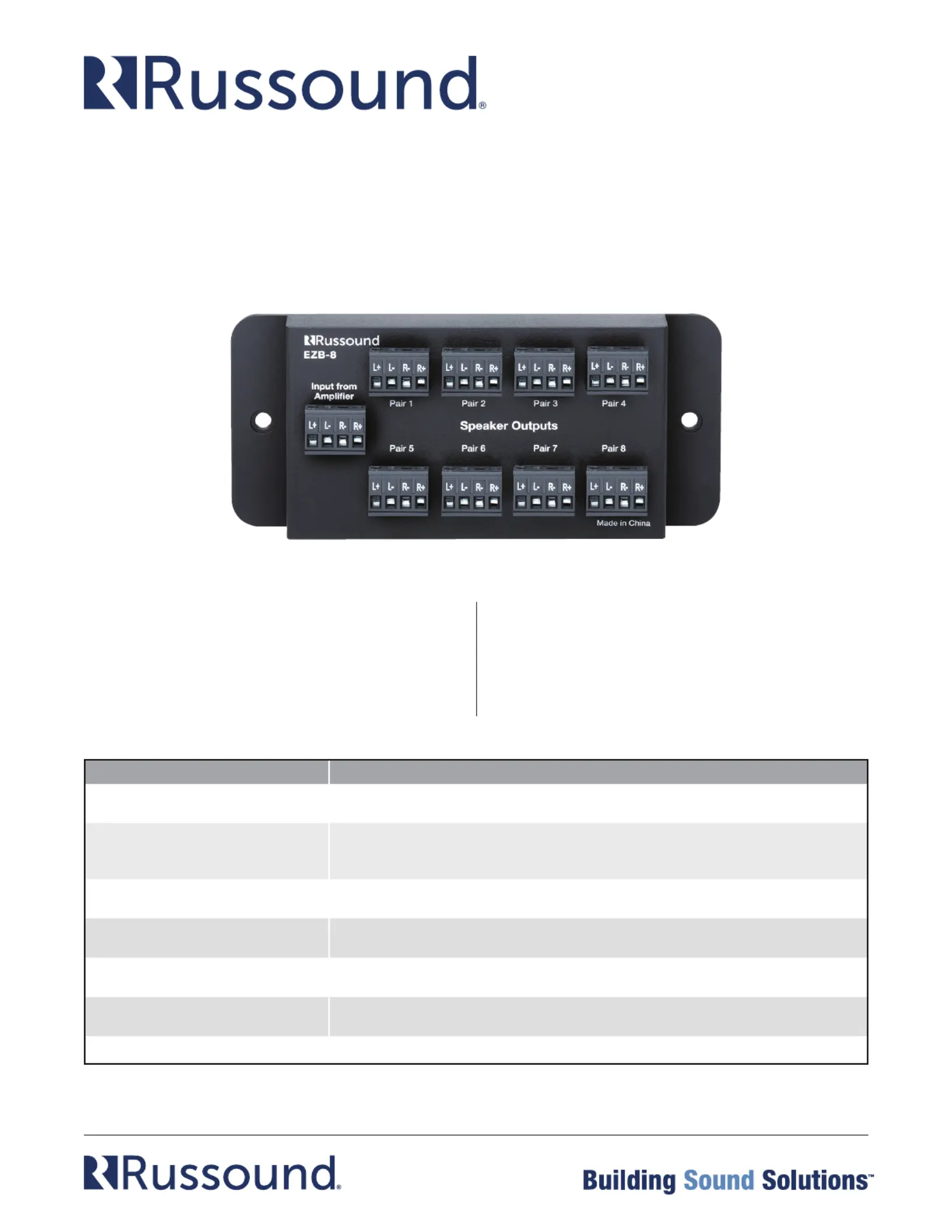

EZB-8 Speaker Connecting Block
Product Brief
Features Benefi ts
Removable, screw-down terminal
connectors
Accepts up to 12AWG wire with easy to read labelling to help prevent any wiring
mistakes during the installation
System reliability Improved by giving the installer secure screw-down connectors for each speaker pair
with a pre-labeled termination point for guaranteed connections
Powerful audio handling Rated for receivers/amplifi ers of up to 150 watts RMS per channel (suitable for use with
receivers/amplifi ers rated at 300 watts per channel)
Easy expandability Rated for 126 watts peak with a continuous rating of 42 watts RMS, to handle almost
all of your volume control installation needs
Generous 48dB of attenuation Allowing for up to 8 pairs of speakers to connect easily adding pairs up to 8 at any
time, and by adding a second EZB-8 when more than 8 pairs are needed
Wiring Can mounting With all EZB-8’s designed to install quickly in any standard wiring cans and with push
plugs included for a quick and easy mounting option
Guaranteed Russound offers a generous two-year warranty for extra peace of mind
Russound is proud to announce the launch of the latest
installation accessory to simplify our installers’ lives and to give
them the tools they need to complete professionally installed
audio systems, the EZB-8 Speaker Connecting Block.
By providing an expandable, easy-to-use wiring solution,
installations can be simplifi ed and made more reliable by
using well-labelled screw-down connectors instead of older
solutions such as wire nuts terminating multiple speaker wire
bundles. While designed to fi t easily inside a structured wiring
can, the EZB-8 can also be easily mounted to a wall or any fl at
surface at the job site.
Russound | 1 Forbes Road Newmarket, NH 03857 | 603.659.5170 | www.russound.com
©2014 Russound/FMP, Inc. All rights reserved. Russound and the Russound logo are registered trademarks of Russound/FMP, Inc.
All other trademarks are the property of their respective owners. Russound reserves the right to change specifi cations without notice.

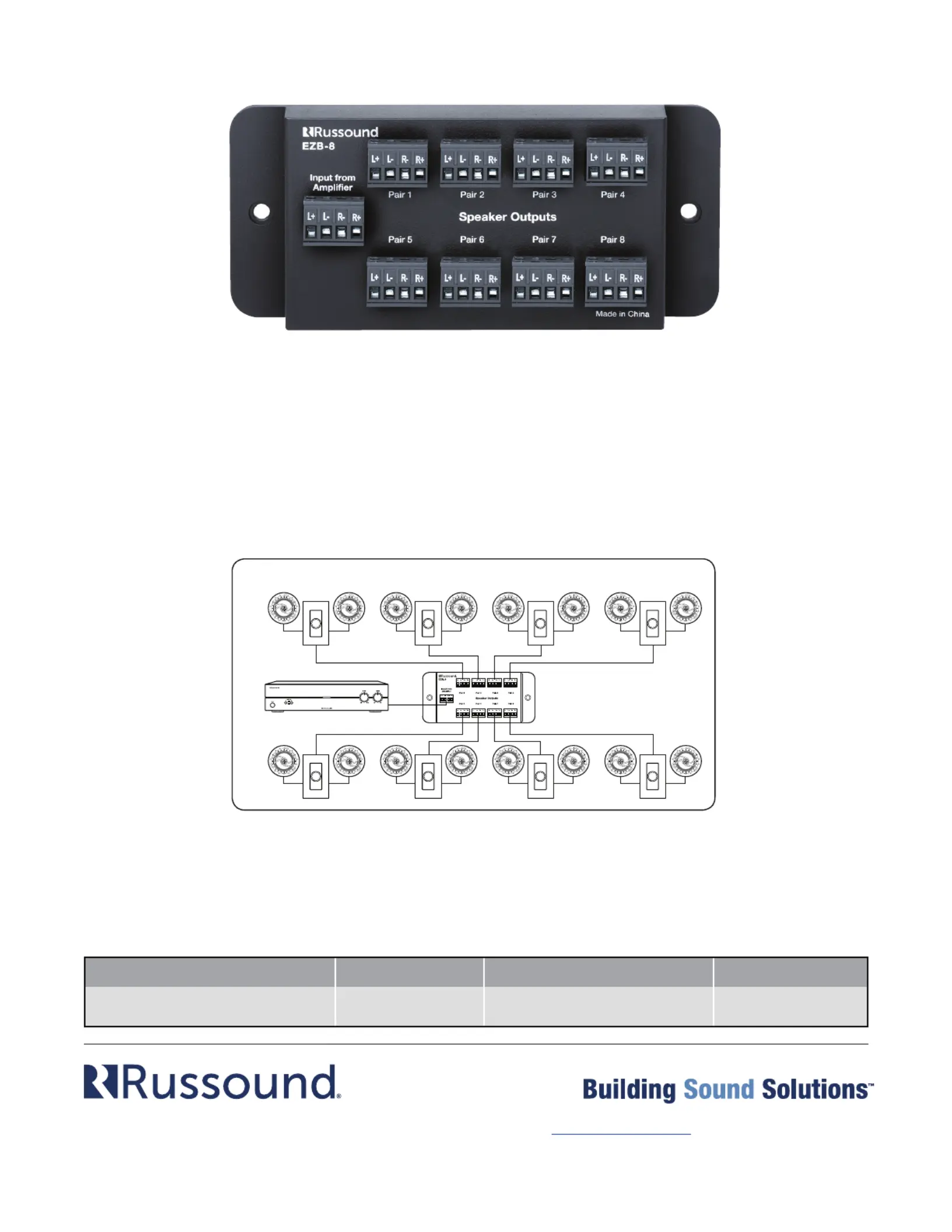

EZB-8
ALT-126R
RSF-610
Speakers
P125 Amplifier
4 X
4 X
4 X
4 X
4 X
4 X
4 X
48 X
Application Diagram
Power Handling: 150 watts RMS per channel (suitable for use
with 300 watt perchannel rated receivers/ amplifi ers)
Connectror(s): Removable screw down connectors
Wire size acceptance: Up to 12 AWG
3.0” H x 6.875” W x 1.31” D Dimensions:
(7.62 cm x 17.5 cm x 3.3 cm)
Weight: 0.4 lb (0.2 kg)
Designed for use with Class 2 wiring only.
For use with impedance matching devices.

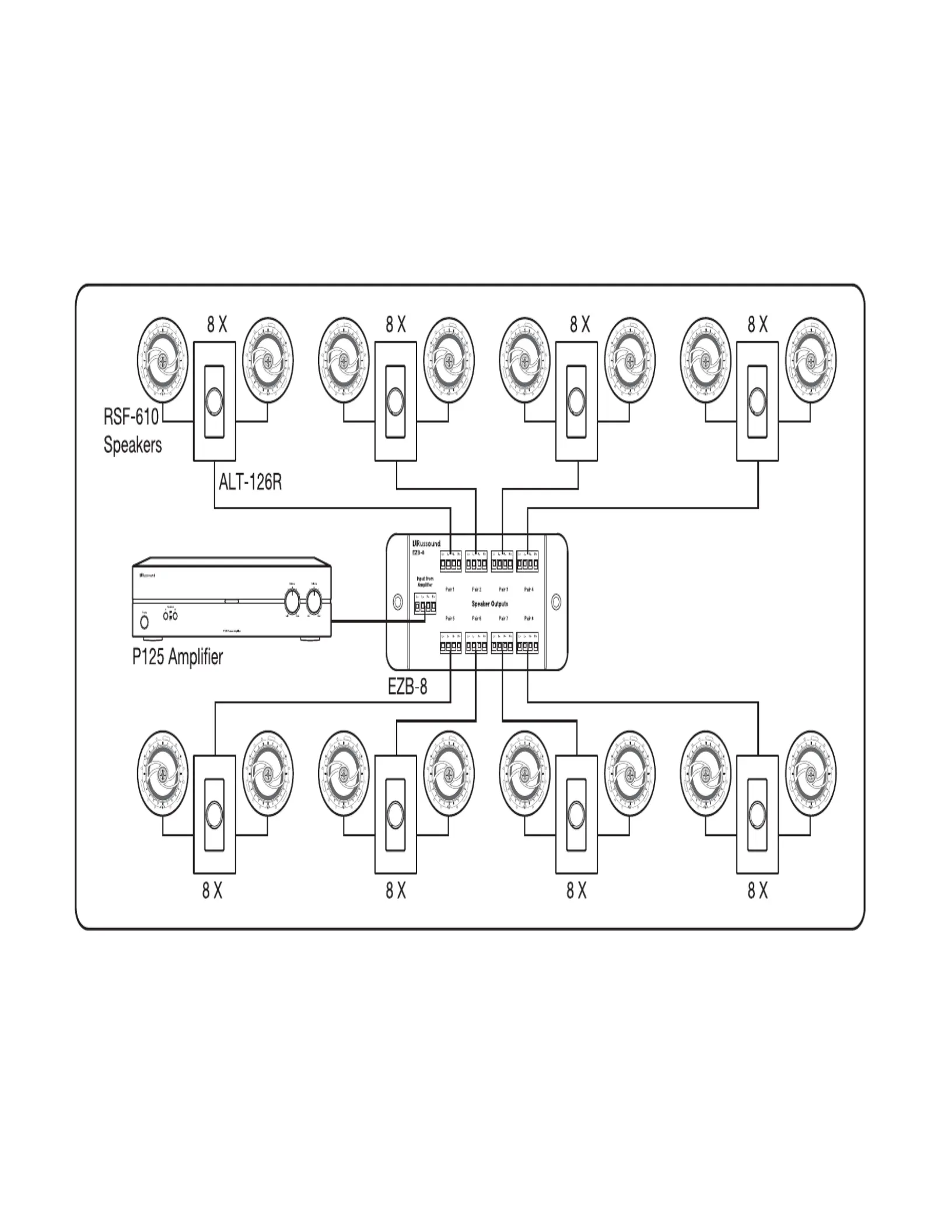

The application diagram above shows an EZB-8 being used to run 8 pairs of
Russound RSF-610 speakers using 8 ALT-126R volume controls, with each
volume control’s impedance switch set at the 4X position. The speakers are
wired to their volume controls and the volume control wires run back to the EZB-
8 where all 8 pairs of wires are easily connected to the EZB-8. The P125 amplifi er
is then connected to the EZB-8 connector marked “Input from Amplifi er”
Technical Specifi cations
Product Name, description Part Number Shipping Dimensions Shipping Weight
EZB-8, Speaker Connecting Block 6100-536106 3.375” W x 7.125” L x 1.625” D
(8.6cm x 18.1cm x 4.1cm)
0.4 lbs, (0.2 kg)
