Sida 1/11

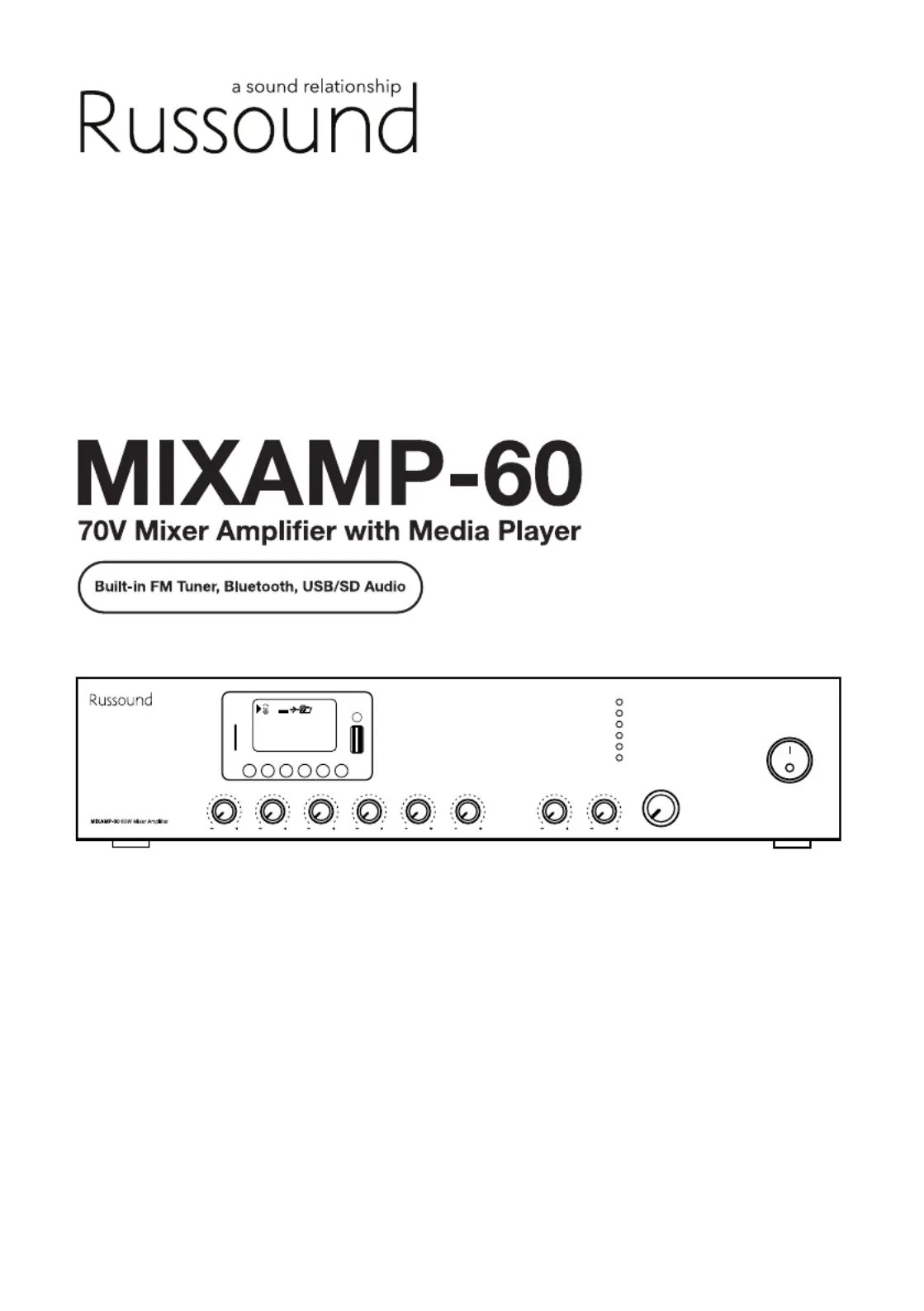

www.russound.com
MIC1 MIC3/LINE2 LINE3 LINE4 TEL BASS TREBLE
MASTER
0
1
2
3
456
7
8
9
10
MIC2/LINE2
SD
Mode Play Folder RPT Prev/V- Next/V+ USB
IR ON
PROT
CLIP
0
-10
-30
POWER
006
001
NOR ROOT
00:21/03:36
MUSIC.mp3
MixAmp-60 | 70V Mixer Amplier with Media Player2
SAFETY WARNINGS
1. Read and keep these instructions.
2. Heed all warnings and follow all instructions.
3. Do not use this apparatus near water.
4. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
5. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus that produce
heat.
6. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the
provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
7. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
8. Only use attachments/accessories specified by the
manufacturer.
9. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
10. Unplug this apparatus during lightning storms or when
unused for long periods of time.
11. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been
dropped.
12. This appliance shall not be exposed to dripping or
splashing water and no object filled with liquid such as
vases shall be placed on the apparatus.
13. Plug this apparatus into the proper wall outlet and make
the plug can be easily disconnected.
14. Main plug is used as the disconnect device and it should
remain readily operable during intended use. In order to
disconnect the apparatus from the mains completely,
the mains plug should be disconnected from the mains
socket outlet completely.
15. WARNING: To reduce the risk of fire or electric shock, do
not expose this apparatus to rain or moisture.
16. An appliance with a protective earth terminal should
be connected to a mains outlet with a protective earth
connection.
SAFETY WARNINGS
WARNING:: TO REDUCE THE RISK
OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONAL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: Touching uninsulated terminals
or wiring may result in electric shock
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING!
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THE
PLUG WITHAN EXTENSION CORD, RECEPTACLE OR
OTHER OUTLET UNLESS THE BLADES CAN B E FULLY
INSERTED TO PREVENT BLADE EXPOSURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
TO PREVENT ELECTRICAL SHOCK,
MATCH WIDE BLADE PLUG TO WIDE SLOT, FULLY INSERT.
MixAmp-60 | 70V Mixer Amplier with Media Player3
Ventilation Requirements
Important: The MixAmp-60 should be situated so that
its location or position does not interfere with its proper
ventilation. Do not block vents above or to the sides of the unit,
as it requires ventilation for proper operation. Do not expose
to excessive dust, and do not allow dust to build up on the
unit and block ventholes. Do not place the MixAmp-60 directly
above or below a heat-generating component such as an
audio amplifier.
Be sure to leave at least 2 inches of space to the sides of the
unit with open airflow above. A single-space rack mount vent
or about 1.75 inches must be kept clear above and below the
unit.
Installation
The MixAmp-60 can be rack mounted or placed on a shelf
in an equipment rack. It occupies two rack spaces with feet
removed. Use only the included rack mount ears and hardware
to rack mount the MixAmp-60.
Electrical Power
The MixAmp-60 operates at 110-230VAC at 50/60 Hz. It is
recommended that the MixAmp-60 and any connected source
equipment be plugged into a dedicated 20-amp circuit. A
power line conditioner can reduce interference problems
caused by noise found in some electrical systems.
The power switch for the unit is on the front panel.
Important Considerations
• This product is to be operated by trained personnel only.
• Disconnect the power cord before making any wiring
connections to the device.
• Verify that all connections and wiring polarity are correct.
• Keep all power cords away from all signal cables to prevent
humming from induced noise.
• Choose reliable signal cables and patch cords.
• Label all wires with the room location at both ends of the
wire.
• Avoid running speaker wires or signal cables close to
electrical wiring for any distance. If you have to run them
parallel, make sure to space the wires at least two feet from
the AC line. If you need to cross an AC line it should be at
a 90° angle.
• Do not connect the main power cord until all other
connections have been made and verified. Live connection
or removal of source or speaker wiring or other wiring when
the system is powered can result in erratic operation or
system damage. Touching live terminals or wiring can result
in shock.
• Double-check terminations during each phase of the
installation to prevent accidental damage. Incorrect wiring
is the number one cause for non-warranty product damage.
Overview
Description
The MixAmp-60 Mixer Amplifier with MP3, FM tuner &
Bluetooth, is ideal for schools, supermarkets, convenience
stores, banks, retail stores and similar environments. It is
an all-in-one solution with built-in audio sources, pre-amp
mixing, audio amplification, expandability to external
sources, microphones, etc., in one small, rack-mountable
chassis.
The MixAmp-60 integrates combinations of up to 3
microphones and 4 external audio sources in addition to
its built-in FM Tuner, Bluetooth receiver, USB, and SD
card MP3 player. Convenient front panel controls allow for
precise volume level of all connected sources as well as an
integrated LCD display showing currently selected audio
from the built-in sources. Background Music (BGM) and
Music On Hold (MOH) integration are available as well as a
Telephone Paging Input. Phantom Power is available for the
primary microphone as well as adjustable ducking levels.
Features
• Compact Design
• Built-in 70V/100V transformer technology
• Tabletop amplifier with MP3 player, FM radio & Bluetooth
• 60W Power Output
• Speaker outputs of 70V, 100V, 4 Ohms, 8 Ohms, and
16 Ohms
• MP3 player with USB/SD input on front panel, IR remote
control for MP3 player, FM radio and Bluetooth
• LED indicators for power, clipping, protection and signal
• Mic 1 is a balanced XLR input with configurable phantom
power support. Mics 2 & 3 are switchable, unbalanced,
removable screw-down Phoenix connectors types and
can alternate between microphones or line inputs.
• Includes a built-in telephone input with VOX priority and
MOH (Music on Hold) output.
• Convenient Front-Panel Volume Controls for all physical
inputs, MP3/FM, master volume as well as bass/treble
• Line out for use with an optional external amplifier if more
power is needed
• Built-in short-circuit, clipping, overload and over-
temperature protection
PREPARATION & OVERVIEW
