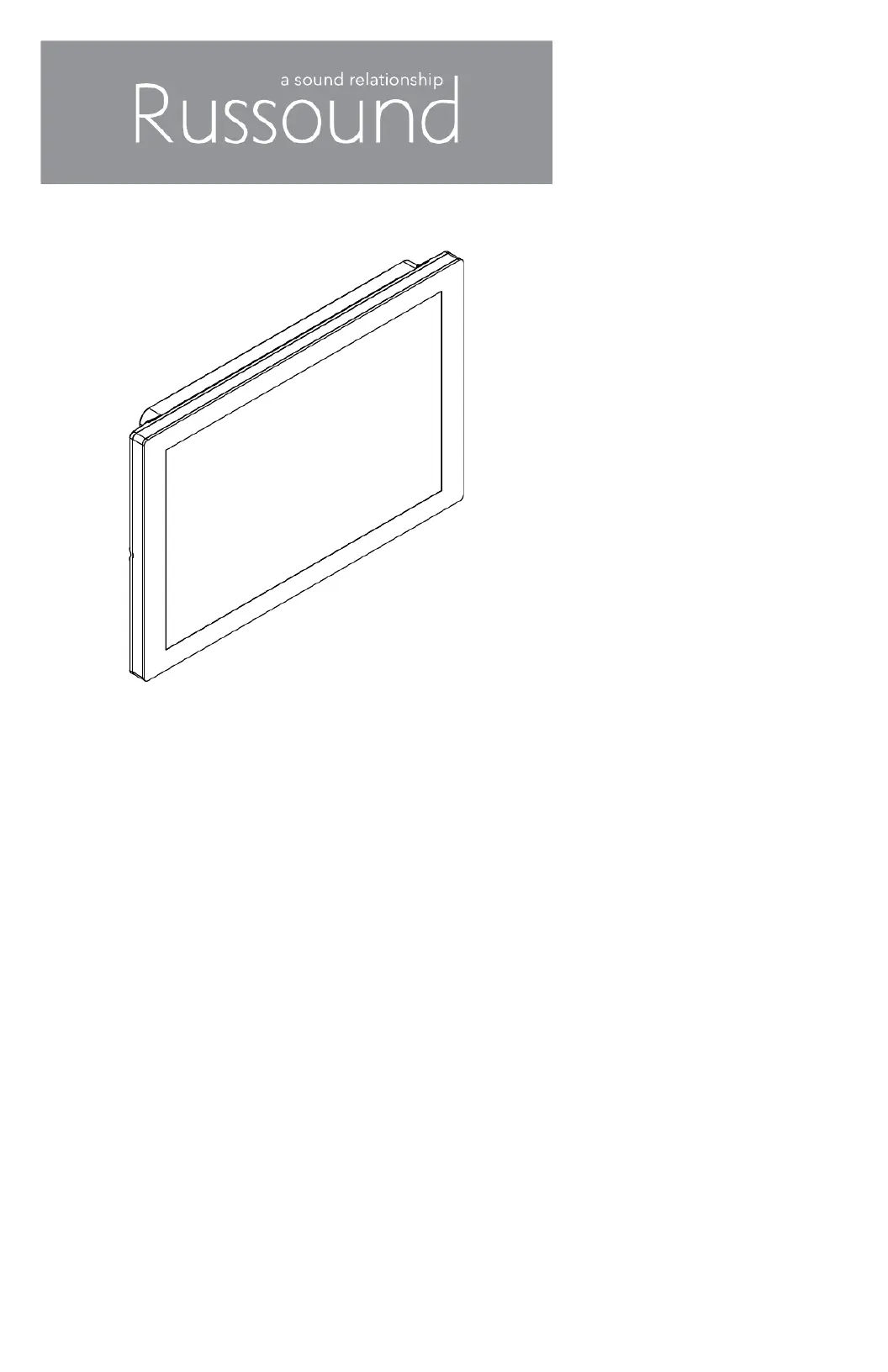

XTS7

Wall-mounted Touchscreen

I N S T A L L A T I O N G U I D E

2Russound XTS7 Installation Guide

OVERVIEW

The is an elegant, in-wall touchscreen with a 7” display Russound XTS7

and a quad-core processor running the Android™ operating system that

enables you to install and run apps from the Google Play Store. The XTS7 is

pre-loaded with the Russound App, perfect for controlling your compatible

Russound audio system, but the XTS7 is free to control any other smart home

devices in your home such as your lights, shades, etc.

The XTS7 comes with 16GB of storage for additional apps and there is a

microSD card slot that allows expansion for up to an additional 256GB of

storage.

The XTS7 oers unmatched convenience in controlling your smart home.

The wall-mounted design is always available for your use, meaning that you’ll

never have to search for your phone or tablet in order to start controlling

devices in your home. You can keep your most important apps like those for

your lights and music on the home screen, instantly available for your use.

The XTS7 is also easy to install and supports both wired and wireless network

connections. A PoE (Power over Ethernet) connection simplifies the wiring by

allowing a single network cable to carry both the network data and the power

to the touchscreen. If a Wi-Fi connection is preferred, the XTS7 also oers a

12V DC connection to supply the required power.

HIGH RESOLUTION DISPLAY

The XTS7 uses a 7” 800 x 1280 display capable of reproducing 16.7 million

colors. It features projected capacitive touch technology, the latest touch

technology used in smartphones and tablets, enhancing its responsiveness

and performance.

ALWAYS AVAILABLE CONTROL

By mounting a touchscreen on the wall at the location of your choosing, your

smart home is now instantly more accessible. It’s no longer necessary to

fumble for your phone or tablet before being able to turn up the volume of

your favorite music, mute the sound when you need, or adjust the lighting in

the room. The XTS7 is pre-loaded with the Russound app for controlling your

compatible Russound audio system, but it is also ready to install your favorite*

apps from the Google Play Store.

4Russound XTS7 Installation Guide

STEP 1

Install the electrical box or P-ring. The typical recommended mounting height

for a wall-mounted touchscreen is for the center of the electrical box or p-ring

to be at 59” (150cm) from the finished floor height. This may be adjusted for

user preference, but the 59” height is recommended to accommodate most

users. Make sure that the electrical box/P-ring is mounted level and is flush

to the wall surface.

Wireless Installation Note: If a Wi-Fi connection is desired, make sure to test the Wi-Fi

signal strength at the proposed mounting location prior to cutting any wall openings.

The Wi-Fi signal strength can be checked using any of the commonly available Wi-Fi

signal strength apps. If the Wi-Fi signal is not strong enough at the proposed mounting

location, consider using a wired ethernet connection or enhancing the Wi-Fi in the

mounting area.

Wired Network Installation Note: If a wired network connection is being used, keep in

mind that the XTS7 uses a dynamic DHCP network address supplied by your router.

When a more permanent IP address is required, a DHCP-reservation may be used on a

compatible router.

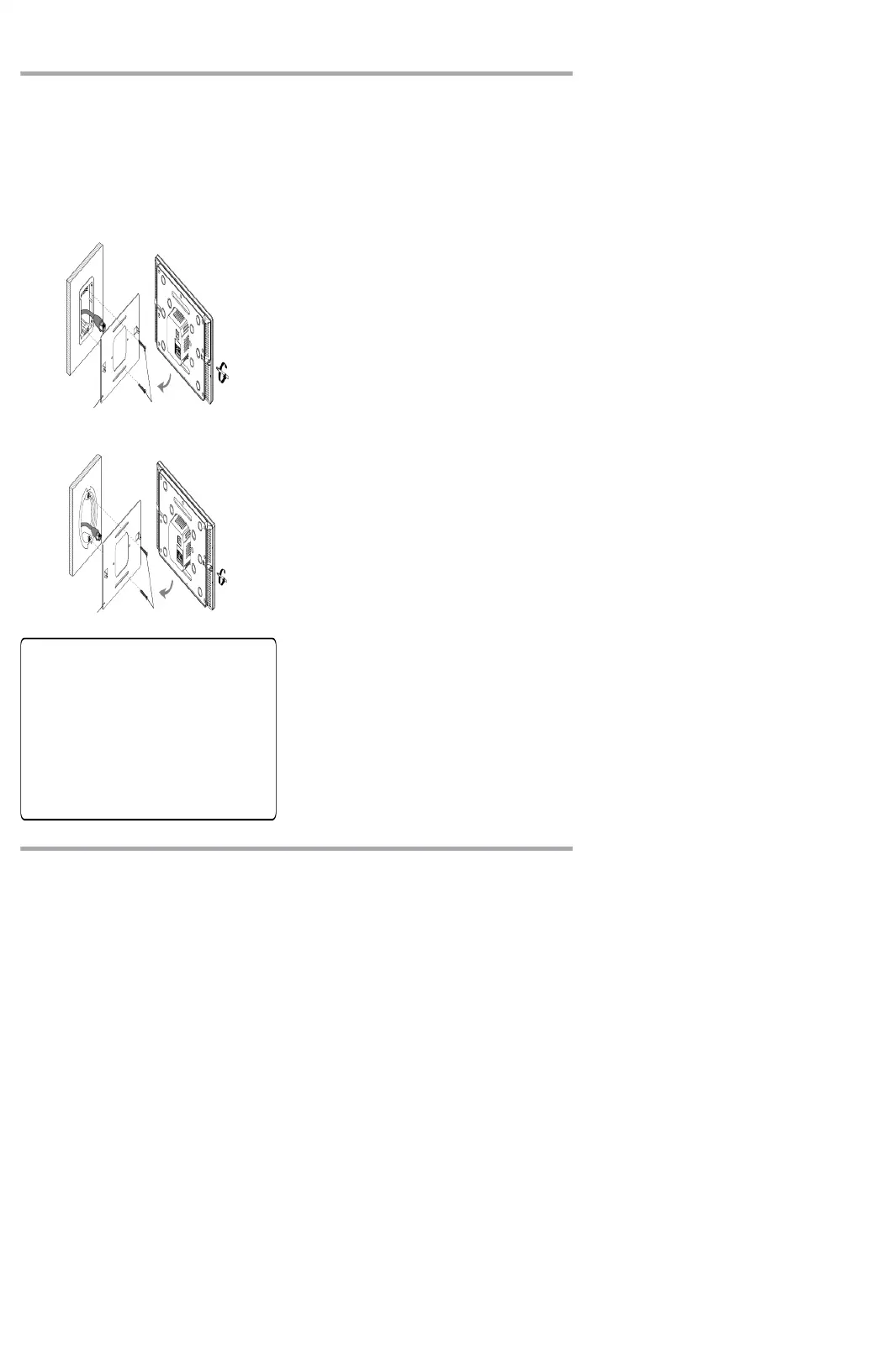

INSTALLATION INSTRUCTIONS

Secure each

side to bracket

Screws

XTS7 Bracket

(Included)

Secure each

side to bracket

Screws

XTS7 Bracket

(Included)

US Single Gang Box

EU Single Gang Box

Produktspecifikationer

Varumärke:	Russound
Kategori:	hi-fi system
Modell:	XTS7
Nätverksstandard:	IEEE 802.3ae
Förvaringstemperatur:	-40 - 70 °C
Förvaringsfuktighet:	5 - 90 procent
Medeltid mellan fel (MTBF):	265455 uur
Full duplex:	Ja
Strömförbrukning (typiskt):	200.26 W
Drifttemperatur (TT):	0 - 60 °C
Relativ luftfuktighet i drift (VV):	10 - 90 procent
