WE’RE HERE TO HELP
Our US-based install experts
are standing by to help.
Call us at:
800-359-5520
Or, chat at:
SANUS.com/chatSP
Get it right the first time.
HeightFinder™ shows you
where to drill.
Check it out at:
SANUS.com/1172
Want to watch a video that
shows how easy this DIY
project will be?
Watch it now at:
SANUS.com/2928
Texto en español, página 12
BLT
3
INSTRUCTION MANUAL
GET IT
RIGHT
THE FIRST TIME
Follow this step-by-step
instruction manual to
speed up your installation.
2
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ ENTIRE MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS
TV Weight Limit
(including accessories)
DO NOT EXCEED
Call Customer Service
Tools Needed
Wall Construction
ONLY install on these
acceptable wall types.
Unsure
Wood studs Solid concrete or
concrete block Steel studs
ACCEPTABLE ACCEPTABLE
Steel stud kit SSMK1
is required for install,
but NOT INCLUDED.
Call Customer Service
Wood Stud
Install
Steel Stud
Install
Concrete
Install
Awl Awl
Pencil Level
Stud Finder Stud Finder
ScrewdriverTape
Measure
7/32 in.
(5.5 mm)
Wood
1/2 in.
(13 mm)
Steel
Drill Bit Drill Bit
Electric
Drill
Hammer
1/2 in.
(13 mm)
Socket
Wrench
Drill Bit
3/8 in.
(10 mm)
Concrete
CAUTION:
DO NOT install
in drywall alone
150 lbs.
(68.0 kg)
Drywall alone
will NOT hold the
weight
of your TV.
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact
Customer Service.
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed ONLY to be installed into wood stud, solid concrete or concrete block or steel stud walls.
— DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV .
●This product is designed for INDOOR USE ONLY.
●The wall must be capable of supporting five times the weight of the TV and mount combined.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
If your TV, plus accessories, weighs MORE
than indicated, this mount is NOT compatible.
Visit SANUS.com or call customer service to
find a compatible mount.
3
BEFORE YOU BEGIN
Remove the stand from your
TV if attached.—
Install any accessories you may have
purchased, if they require TV removal prior to
assembly. The TV is removable for future accessory
purchases.
Soft clean surface
Protect the face of your TV
when laying it down for installation.

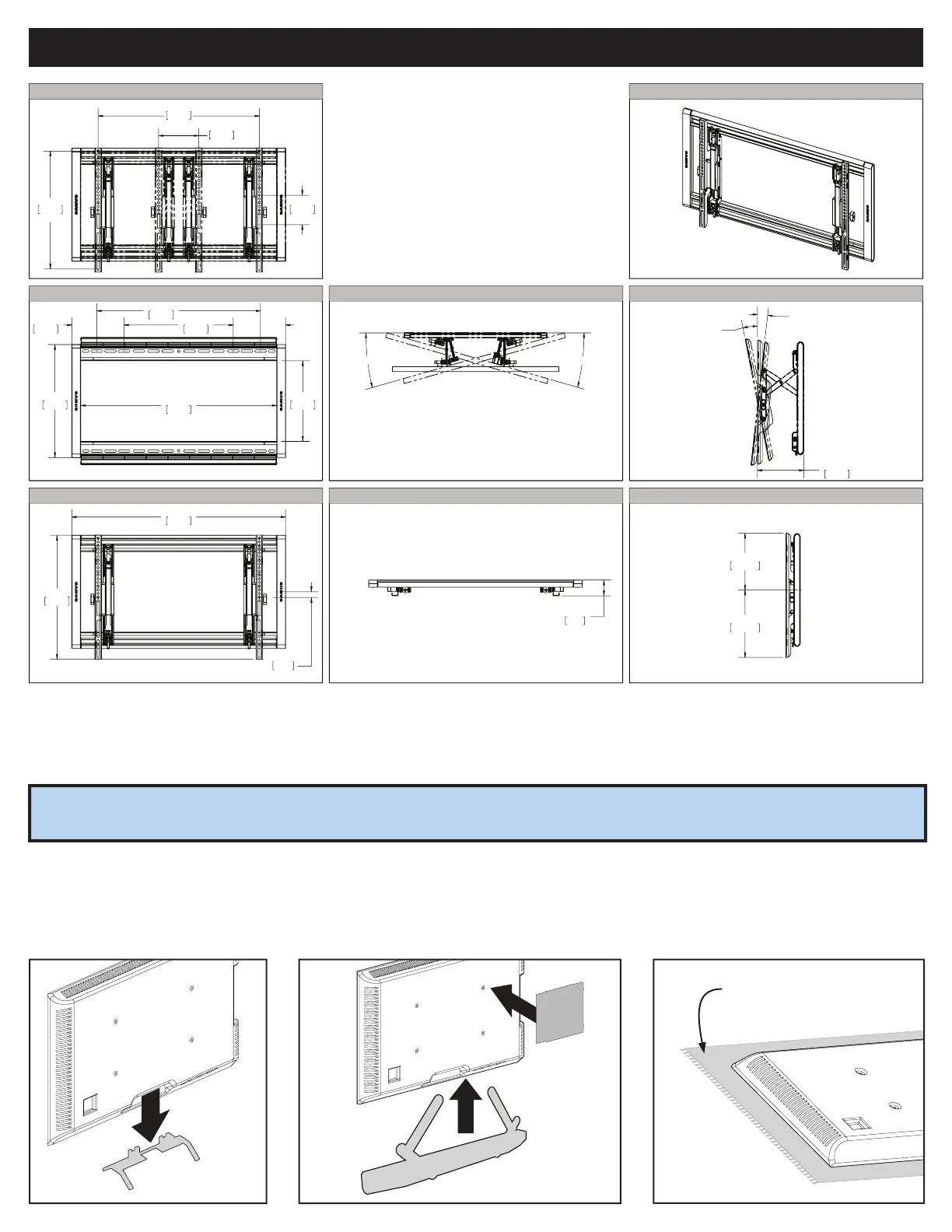

Dimensions in. [mm]
5.9in
150mm
MIN
23.6in
600mm
MAX
15.7in
400mm
MAX
3.9in
100mm
MIN
28.7in
730mm
31.3in
796mm
15.1in
383mm
10.8in
273mm
24.0in
610mm
16.0in
406mm
15deg 15deg
6.8in
172mm
7deg
12deg
7.6in
192.4mm
9.0in
228.6mm
C
L
SYM
2.1in.
53mm
31.3in
796mm
16.6in
421mm
0.7in
19mm
OFFSET
SIMULATED 42"
FLAT SCREEN TV WITH 400 MM VESA
TV INTERFACE
WALL PLATE
TOP VIEW - EXTENDED
3-D
SIDE VIEW - EXTENDED
SIDE VIEW RETRACTED
TOP VIEW - RETRACTED
FULLY ASSEMBLED MOUNT
