BSF517
-B1
INSTRUCTION MANUAL
WE’RE HERE TO HELP
Our live US-based install
experts are standing by to help.
Get it right the first time.
HeightFinder™ shows you
where to drill.
Use it now:
SANUS.com/1172
Want to watch a video that
shows how easy this is?
Watch it now at:
SANUS.com/3166
Call us at:
+1 (800) 359-5520
Or, chat at:
SANUS.com/chatSP
Texto en Español, página 12
2

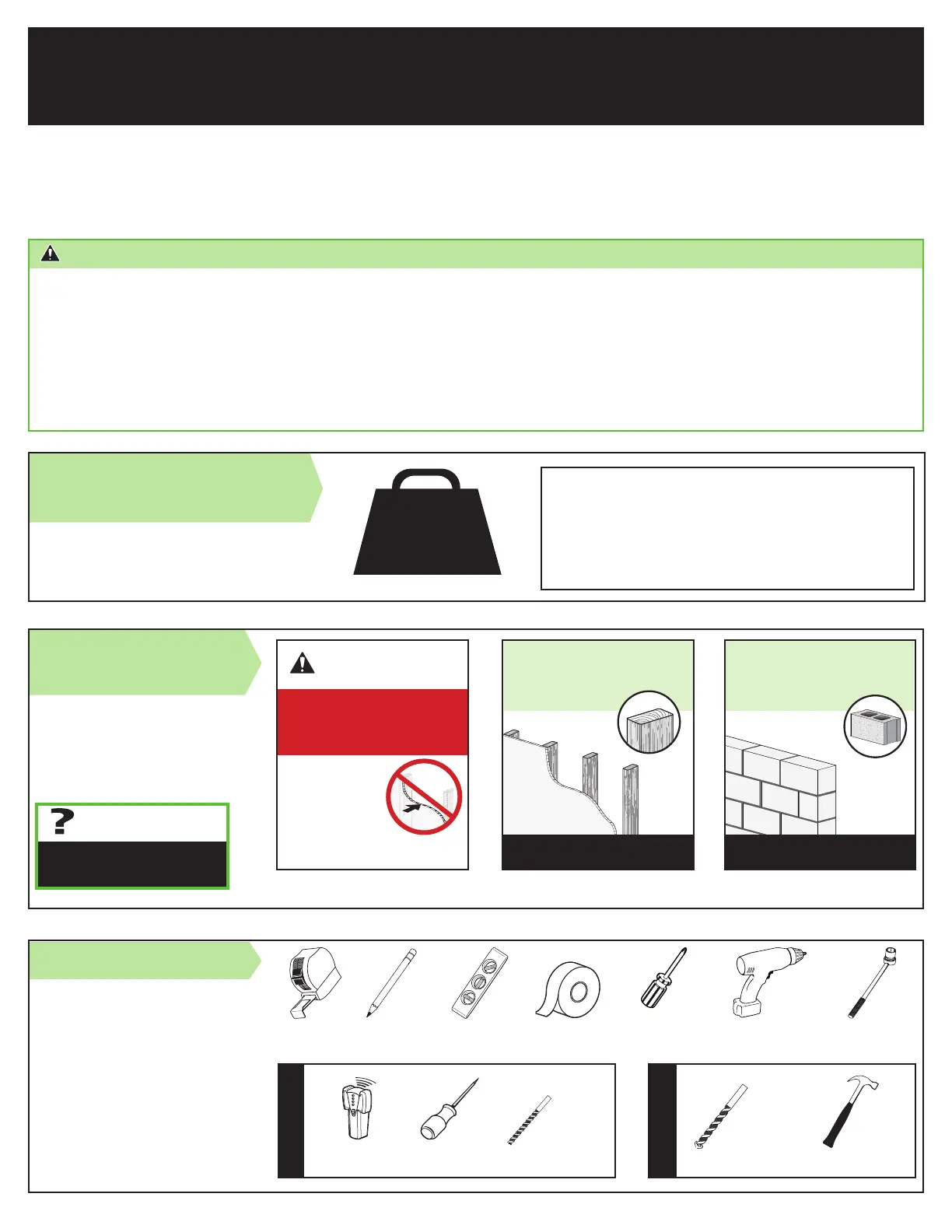

IMPORTANT SAFETY INSTRUCTIONS
– PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed ONLY to be installed into wood studs, solid concrete or concrete block
— DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV
●This product is designed for INDOOR USE ONLY
●The wall must be capable of supporting five times the weight of the TV and mount combined
●Do not use this product for any purpose not explicitly specified by manufacturer
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service: +1 (800) 359-5520.
Tools Needed
Wall
Construction
ONLY install on
these acceptable
wall types. Drywall alone
will NOT hold the
weight of your TV.
wood studs Solid or concrete
concrete block
ACCEPTABLE ACCEPTABLE
CAUTION:
DO NOT install
in drywall alone
40 lb
(18.1 kg)
TV Weight Limit
(including accessories)
DO NOT EXCEED
If your TV (plus accessories) weighs MORE, this
mount is NOT compatible.
Visit SANUS.com or call customer service to find a
compatible mount. +1 (800) 359-5520
Wood Stud Install
Concrete Install
Awl
Pencil Level Tape
Stud
Finder
ScrewdriverTape
Measure
7/32 in.
(5.5 mm)
Wood
Drill Bit
Electric
Drill
Hammer
1/2 in.
( 13 mm)
Socket
Wrench
Drill Bit
3/8 in.
(10 mm)
Concrete
Call Customer Service
+1 (800) 359-5520
Unsure
3

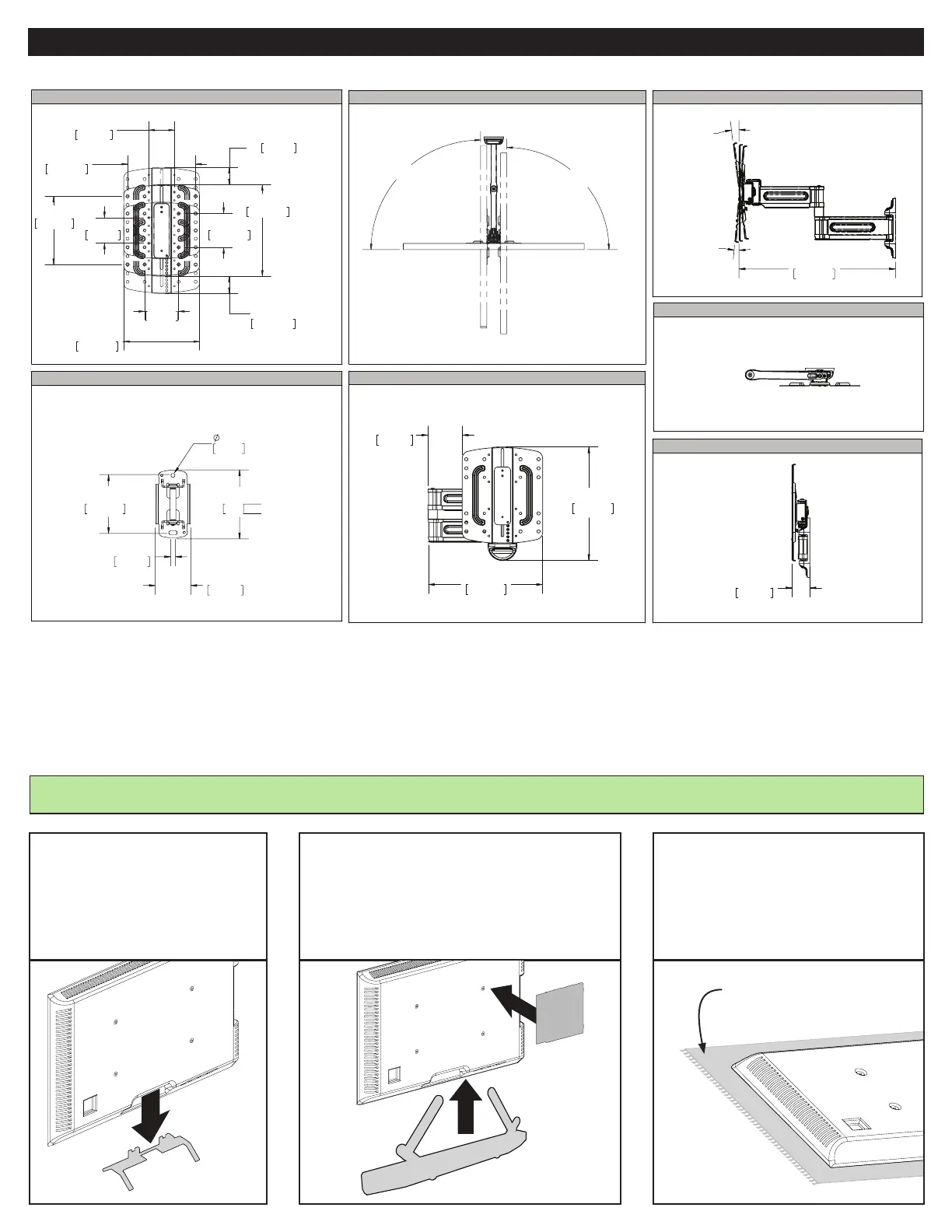

Dimensions
TV INTERFACE
WALL PLATE
TOP VIEW - EXTENDED
SIDE VIEW - EXTENDED
SIDE VIEW RETRACTED
TOP VIEW - RETRACTED
FULLY ASSEMBLED MOUNT
3.0in
75mm
0.4in
10mm
4.8in
123mm
0.3in
9mm
5.7in
145mm
12.4in
315mm
3.7in
95mm
12.5in
316mm
1.8in
47mm
7deg
5deg
17.0in
433mm
6,08/$7('
)/$76&5((179
90deg
90deg
n10.6i
268mm
100mm
3.94in
n7.9i
200mm
200mm
7.87in
n3.94i
100mm
51mm
HEIGHT ADJUST UP
8.8in
223mm
75mm
2.95in
75mm
2.95in
2.0in
2.00in
50.8mm
HEIGHT ADJUST DOWN
BEFORE YOU BEGIN
Remove the stand
from your TV if attached.—
Install any accessories
you may have purchased, if they requireTV
removal prior to assembly. The TV is removable
for future accessory purchases.
Soft clean surface
Protect the face
of your TV when laying it down for
installation.
