Sanus BSF316 Bruksanvisning
Läs nedan 📖 manual på svenska för Sanus BSF316 (12 sidor) i kategorin Wandstöd. Denna guide var användbar för 3 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/12
BSF
316
INSTRUCTION MANUAL
Texto en español, página 10
GET IT
RIGHT
THE FIRST TIME
Follow this step-by-step
instruction manual to
speed up your installation.
WE’RE HERE TO HELP
Our US-based install experts
are standing by to help.
Call us at:
800-359-5520
Or, chat at:
SANUS.com/chatSP
Get it right the first time.
HeightFinder™ shows you
where to drill.
Check it out at:
SANUS.com/1172
Want to watch a video that
shows how easy this DIY
project will be?
Watch it now at:
SANUS.com/2781
2
35 lbs.
(15.8 kg)
IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,
contact Customer Service .1-800-359-5520
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed ONLY to be installed into wood studs, solid concrete or concrete block.
— DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV .
●This product is designed for .INDOOR USE ONLY
●The wall must be capable of supporting five times the weight of the TV and mount combined.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
TV Weight Limit
(including accessories)
DO NOT EXCEED
If your TV (including accessories) exceeds
this weight, this mount is NOT compatible.
Visit SANUS.com or call customer service to
find a compatible mount.
1-800-359-5520
Call Customer Service
1-800-359-5520
Tools Needed
Wall
Construction
ONLY install on
these acceptable
wall types. Drywall alone
will NOT hold
the weight of
your TV.
Unsure
Wood concretestuds Solid or
concrete block
ACCEPTABLE ACCEPTABLE
Wood Stud Install
Concrete Install
Awl
Pencil Level Tape
Stud
Finder
ScrewdriverTape
Measure
1/8 in.
(3 mm)
Wood
Drill Bit
Electric
Drill
Hammer
7/16 in.
(11 mm)
Socket
Wrench
Drill Bit
3/8 in.
(10 mm)
Concrete
CAUTION:
DO NOT install
in drywall alone
3
2.95
75.0
2.95
75.0
7.87
200.0
7.87
200.0
8.66
220.0
9.76
248.0
3.94
100.0
3.94
100.0
2.30
58.5
5.30
134.5
0.39
10.0
4.51
114.5
0.39
9.8
0.34
8.6
THRU
11.65
296.0
3.36
85.2
12.02
305.2
1.75
44.5
16.03
407.1
5°
15°
60
TO 90

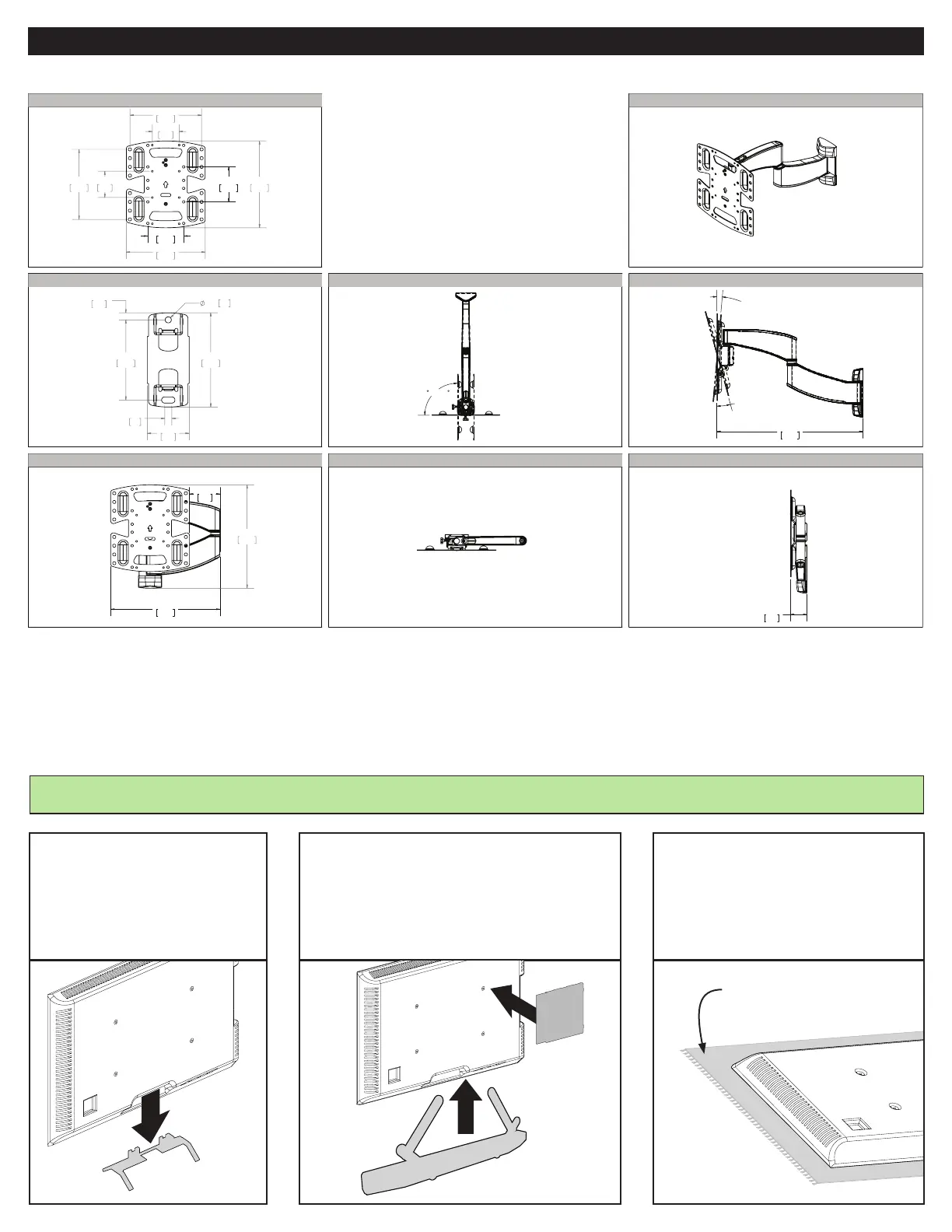

TV INTERFACE
WALL PLATE
TOP VIEW - EXTENDED
3-D
SIDE VIEW - EXTENDED
SIDE VIEW RETRACTED
TOP VIEW - RETRACTED
FULLY ASSEMBLED MOUNT
Dimensions in [mm]
BEFORE YOU BEGIN
Remove the stand
from your TV if attached.—
Install any accessories
you may have purchased, if they
require TV removal prior to assembly.
The TV is removable for future
accessory purchases.
Soft clean surface
Protect the face
of your TV when laying it
down for installation.
