Installation and

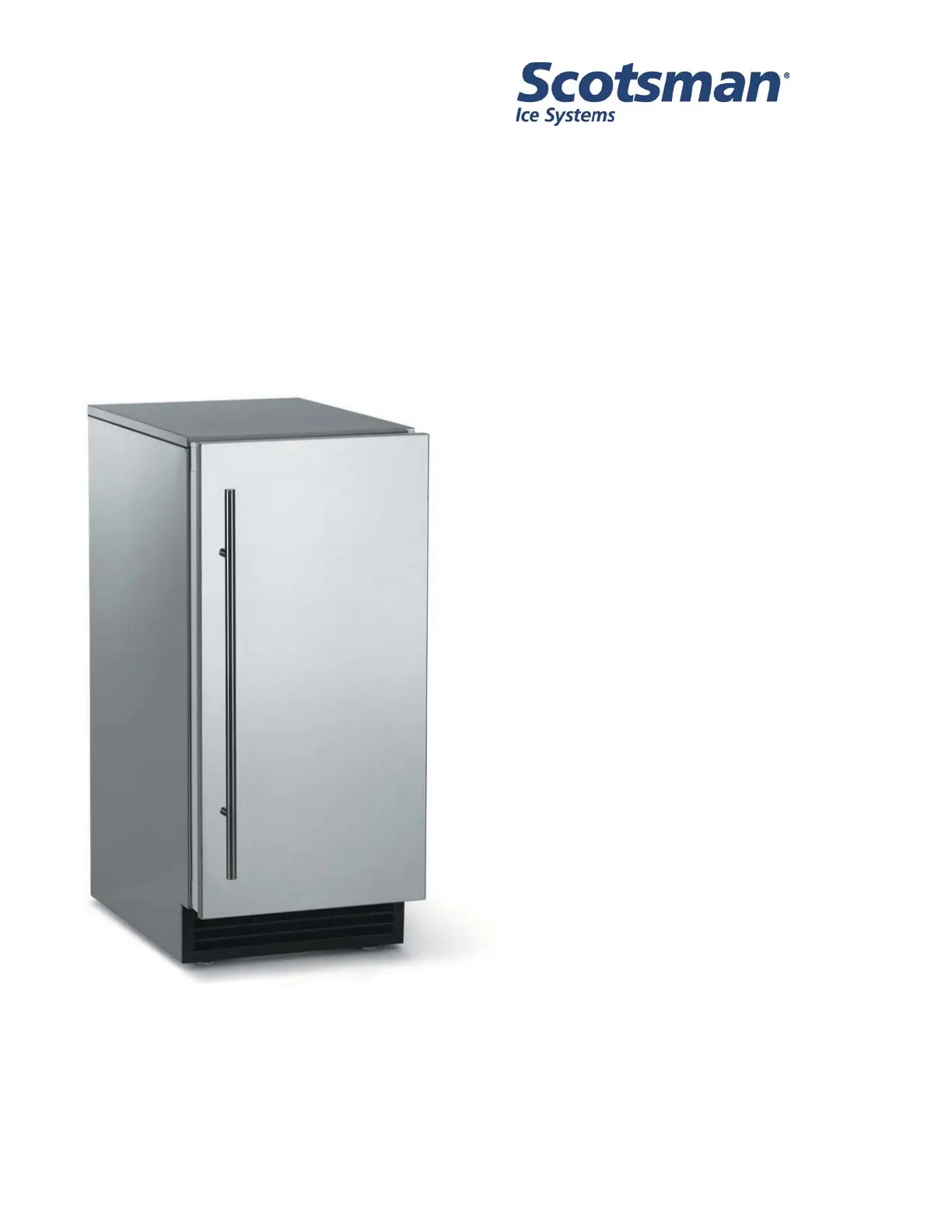

User's Manual for
Residential Ice Machine
Models SCCG30 and SCCP30
Introduction:
This ice machine is the result of Scotsman’s
decades of experience in the design and
manufacturing of both commercial and residential
ice machines.
This manual includes the information needed to
install, start up and maintain the ice machine. Note
any Caution or Warning indicators, as they provide
notice of potential hazards. Keep this manual for
future reference.
July 2018
Page 2
SCCG30 & SCCP30
User Manual
Table of Contents
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
Cabinet Layout Page 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
Water Quality: Page 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door Panel Page 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door Panel Attachment Page 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door swing change Page 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10
Gravity Drain Page 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 12
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 13
How to clean the condenser. Page 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications
This ice machine is designed to be used indoors, in
a controlled environment. Use outside of the listed
limitations is misuse and will void the warranty.
Air temperature limits
The ice machine will operate adequately within the
limits, but functions best in temperatures between
70 and 80 degrees F.
Minimum – 50 degrees F
Maximum – 100 degrees F
Water temperature limits
Minimum – 40 degrees F.
Maximum – 100 degrees F.
Water pressure limits
Minimum – 20 psi
Maximum – 80 psi
Because the ice machine is making a food product,
the water supply to the ice machine must be
potable, or fit for human consumption.
Electrical Voltage
Minimum - 104 volts
Maximum – 126 volts
Options:
Door Panel kits:Finished door panels are available
from Scotsman for attachment to the machine, or a
custom panel can be made.
Kit Number Panel Finish Handle Finish
KDFS Stainless Steel Stainless Steel
Kickplate Extension: In some situations the leg
levelers will be extended enough to become visible.
A kit to extend the kickplate over the legs is .KKPF
Cabinet Stability: In some free standing
installations it may be prudent to add a bracket that
secures the back of the cabinet to a wall. That kit
number is .KATB
Drain Conversion: A gravity drain model can be
converted to a drain pump model by installing a
drain pump kit. The drain pump kit consists of a
drain pump, wiring harness and associated tubing.
The part number is A39462-021.
Warranty Information
Warranty information is supplied separately from
this manual. Refer to it for coverage. In general, the
warranty covers defects in materials or
workmanship and does not cover corrections of
installation errors or maintenance.
November 2009
Page 3
SCCG30 & SCCP30
User Manual
Models
SCCPA30M-1SU – Pump model, stainless cabinet
SCCGA30M-1SU – Gravity drain model, stainless cabinet
Cabinet Dimensions
Width Depth, w/out door panel Depth, with door panel, handle adds 1 5/8" Height
14 7/8" 22" 22 3/4" 33 3/8" to 34 3/8"
