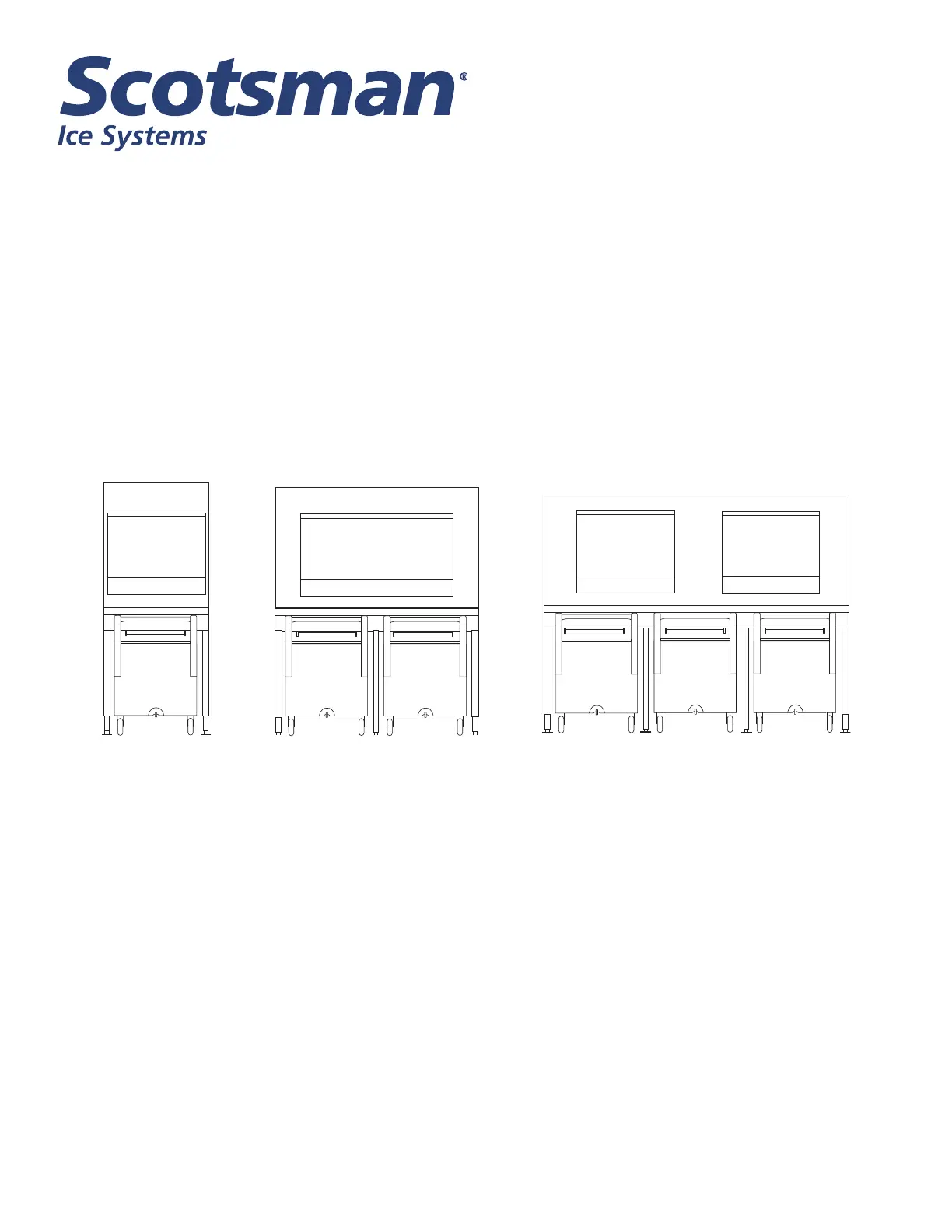

Installation and User’s Manual for
Ice Cart Systems
ICS730, ICS1360, and ICS1790
ICS730, ICS1360, and ICS1790 Installation and User’s Manual
May 2022
Page 2
Before you begin
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is
found, notify the shipper immediately.
Important cautions and operating rules
Read this manual completely before assembling or operating Ice Cart System and
follow cautions and instructions listed below.
To avoid damage to Ice Cart System and injury during operation:
• Do not move Ice Cart System once ice machine has been installed
• Anchor flanged feet to floor as instructed on page 4
• Only use paddle provided to assist ice flow
• Only use cart to cart ice and reinstall carefully in bin bay when not in use
To avoid injury during operation of unit:
• Keep entire body clear of bin when breaking up ice
• Keep head and face away from paddle handle when breaking up ice
• Lock caster before scooping or shoveling ice from cart and when parked in bay
• Keep floor around Ice Cart System free of ice and water
• Always operate cart at a slow, reasonable speed
For best operation and to ensure delivery of clean, sanitary ice:
• Be sure bin system is level in both directions to provide proper drainage
• Position cart in bay before opening hopper door
• Install charcoal water filter on inlet water for ice machine
• Hang paddle implement in supplied bracket after each use
• Keep paddle clean and in good repair to avoid ice contamination
• Cover ice with cart lid when carting
• Follow instructions in this manual for bin and cart cleaning and maintenance
• Drain melt water from cart when positioned in bay by opening drain valve
• Keep glass, dirt and other foreign objects out of bin and cart at all times
!
Contents
Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9
ICS730, ICS1360, and ICS1790 Installation and User’s Manual
May 2022
Page 3
Installation
Uncrating cart
1. Remove paddle from skid by cutting plastic straps.
2. Cut strap holding front axle to skid.
3. Remove wheel chocks from skid at handle end of cart.
4. Roll cart(s) out of base section.
5. Remove tape holding lid to cart.
6. Remove lid storage bracket(s) from inside cart. (Brackets may be installed on left or right side of bin.
See Installing Bin section.)
Uncrating and installing base section
1. Remove screws holding flanged feet and tie-down straps to skid and remove skid.
2. Remove packing material from inside of legs and around shutter door.
3. Position base in intended position and adjust feet to level unit in both directions.
4. Mark position of each flanged foot anchoring hole.
5. Move base out of way and install anchors for 1/4" bolts in floor (supplied by others).
6. Reposition unit in intended position and anchor base unit to floor through flanged feet.
Installing bin
1. Remove bolts fastening skid to underside of bin.
2. Remove all protective wrap from exterior.
3. Run 1/8" bead of supplied silastic in center of each gasket
band on base.
4. Install bin section on base section, taking care that locating
pins in base engage holes in bin.
5. Use fasteners provided to install paddle support bracket on
right or left side of bin in holes provided.
6. Remove paper from back of cart lid storage bracket(s) and position
brackets on side of bin.
7. Remove all tape and temporary fastenings from door assemblies and
outside of bin.
8. Mount ice machine(s) on top of bin in accordance with instructions.
9. Install tie-down straps.
Installing tie-down straps
1. Remove screws from rivnuts on each side of bin section.
2. Reposition tie-down strap up until slot matches rivnut opening.
3. Reinstall screws in rivnuts and tighten.
When leveling, do not extend any leg more than 1" (26mm) for total leg height no greater than
2.125" (54mm).
Legs must be secured to floor through feet to avoid possible movement and resulting injury.
!

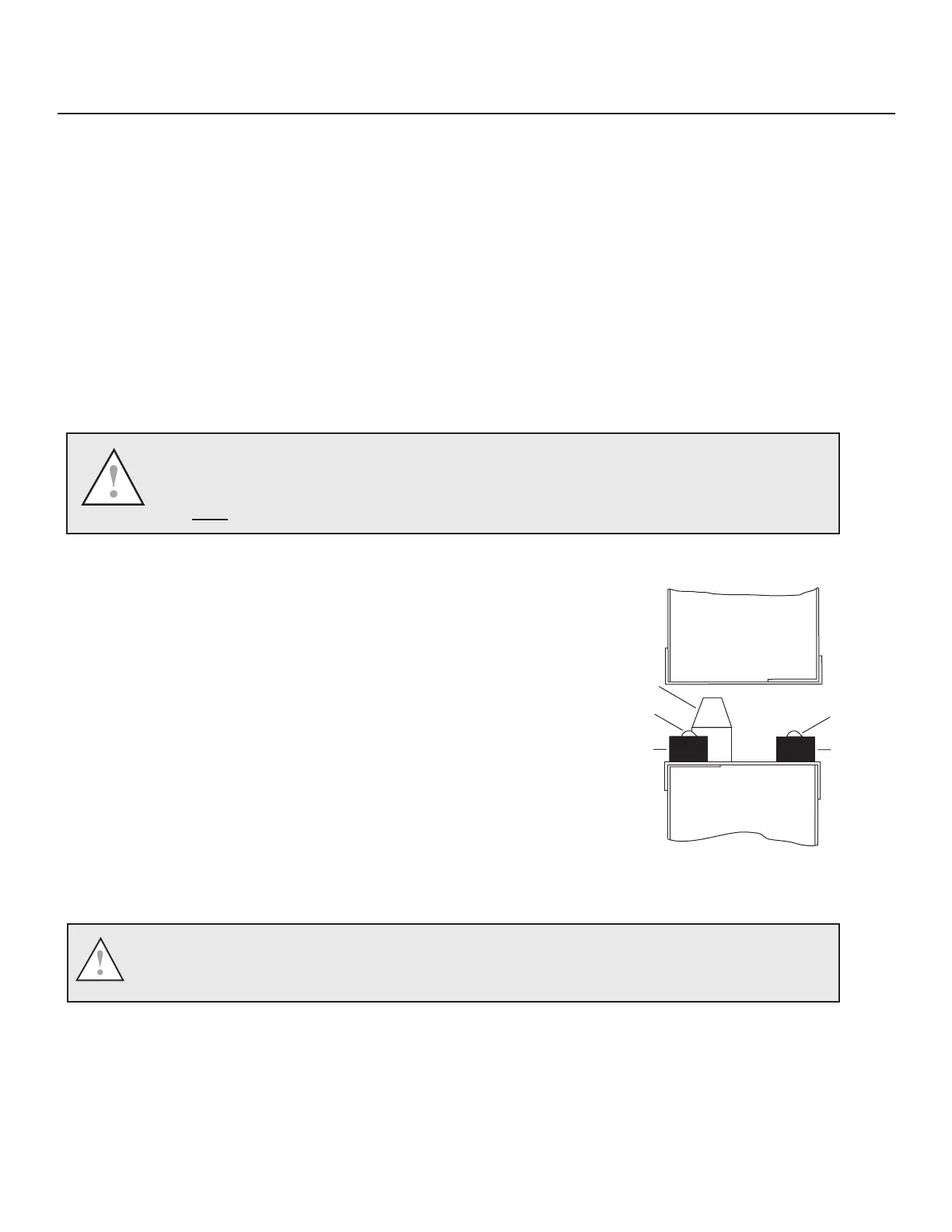

bin
section
base
section
locating pin
bead of
silastic
gasket gasket
bead of
silastic
Tie-down straps to secure bin to base are provided on each side of unit. Straps be MUST
installed to avoid possible injury should unit move. Bolt unit to wall for increased stability,
and bolt to floor to prevent side-to-side movement.
!
