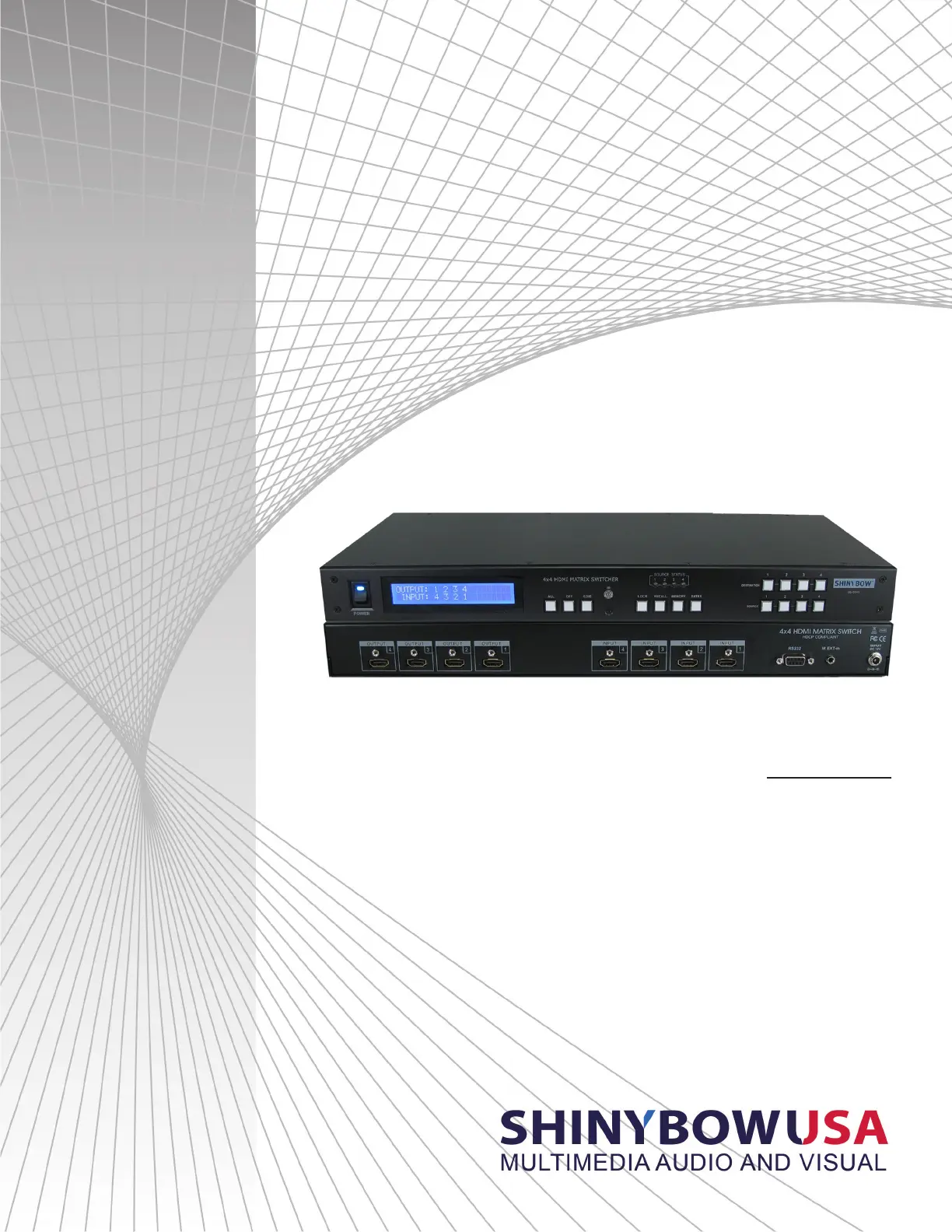

SB-5645LCM
4x4 HDMI Matrix Routing Switcher w/ Full EDID Management/Learning
INSTRUCTION MANUAL
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking Post
replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws
without installing the HDMI Locking Post replacement screws will void your warranty.
SAFETY INFORMATION
1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment.
Retain all documentation for future reference.
2. Follow all instructions printed on unit chassis for proper operation.
3. To reduce the risk of re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.
4. Make sure power outlets conform to the power requirements listed on the back of the unit. Keep unit protected from rain, water and
excessive moisture.
5. Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Dust with a clean dry cloth.
6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience
receptacles, and the point where they exit from the appliance.
7. Do not force switched or external connections in any way. They should all connect easily, without needing to be forced.
8. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken so that the
means of grounding of a piece of equipment is not defeated.
9. AC voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper AC
voltage is not covered by any warranty.
10. Turn power o and disconnect unit from AC current before making connections.
11. Never hold a power switch in the “ON” position.
12. This unit should be installed in a cool dry place, away from sources of excessive heat, vibration, dust, moisture and cold. Do not use
the unit near stoves, heat registers, radiators, or other heat producing devices.
13. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may impede the normal
ow of air around the unit, such as a bed, rug, carpet, or completely enclosed rack. If the unit is used in an extremely dusty or smoky
environment, the unit should be periodically “blown free” of foreign dust and matter.
14. To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside. Refer all servicing to
qualied service personnel. There are no user serviceable parts inside.
15. When moving the unit, disconnect input ports rst, then remove the power cable; nally, disconnect the interconnecting cables to
other devices.
16. Do not drive the inputs with a signal level greater than that required to drive equipment to full output.
17. The equipment power cord should be unplugged from the outlet when left unused for a long period of time.
18. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit,
use only the original factory packing.
19. Service Information Equipment should be serviced by qualied service personnel when:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the equipment.
C. The equipment has been exposed to rain.
D. The equipment does not appear to operate normally, or exhibits a marked change in performance.
E. The equipment has been dropped, or the enclosure damaged.
THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL.
CONTENTS
INTRODUCTION .............................................................. 1
FEATURES & CONTENTS............................................... 2
SPECIFICATIONS ............................................................3
FRONT PANEL ................................................................4
BACK PANEL ..................................................................7
REMOTE CONTROL .......................................................8
RS-232 SERIAL INTERFACE .......................................10
EDID FUNCTIONS ..........................................................11
IR EXTENDER ...............................................................14
TYPICAL APPLICATION ...............................................15
INTRODUCTION
The SB-5645LCM is a high-performance 4x4 matrix routing switcher
for HDMI signals. This switcher supports data rates up to 6.75Gbps,
enabling 1080p HDMI formats and UXGA/WUXGA/DVI resolution to any
HD display. High Denition Digital signals can be selected and distributed
to any (4) outputs simultaneously. The switcher is certied as being fully
HDMI and HDCP compliant, with RoHS, FCC certications. Supports high
resolution HDMI sources routed to HDMI displays, monitors, projector or
audio receivers. The EDID can be selected between (7) dierent modes.
Control is provided via front panel push buttons, IR remote or via RS-232.
A RS-232 Windows GUI interface is provided for matrix routing.
The SB-5645LCM is our next-generation 4x4 HDMI matrix routing
switch, designed for multiple sources and displays. There are (4) HDMI
connections for inputs and (4) HDMI connections for outputs located on
the back panel. This unit has EDID management and EDID memory,
including a new feature called “Fast Speed Start
®” which permits switching
between HDMI sources in as little as 2 seconds. The SB-5645LCM
supports bandwidth of 6.75Gbps and data rates up to 2.5 Gbps, enabling
1080p HDMI formats and UXGA DVI resolutions.
Building upon our successful 5645p series, the SB-5645LCM’s front panel
includes an LCD display with (2) data display lines. Functional manual
control is achieved through push buttons located on the front panel.
External functional control is achieved through a RS-232 connection or
through the IR remote control. The RS-232 connection allows functions
to be controlled by systems like Control4 (drivers included) or any
computerized software/hardware control system.
When using the SB-5645LCM matrix routing switch, one-to-many or
many-to-one connections can be established. You can easily connect
any input device to any output device. You can also establish a single
input device to many output devices, eliminating the need to constantly
re-route video input and output cables.
1
HDMI Matrix Switcher Series
Thank you for purchasing the SB-5645LCM 4x4 HDMI Matrix Switcher. You will nd this unit easy to install and highly
reliable but it is essential that you read this manual thoroughly before attempting to use 4x4 HDMI Matrix switcher.
TABLE OF CONTENTS
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the
PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. We assume no responsibility for any
infringements of patents or other rights of third parties which may
result from its use.
We assume no responsibility for any inaccuracies that may be
contained in this document. We make no commitment to update
or to keep current the information contained in this document.
We reserve the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means
— electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise — without express written permission and consent.
© Copyright 2021. All Rights Reserved.
Version 2.6 SEPT 2021
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may
be trademarks of the companies with which they are associated.
