Sida 1/24

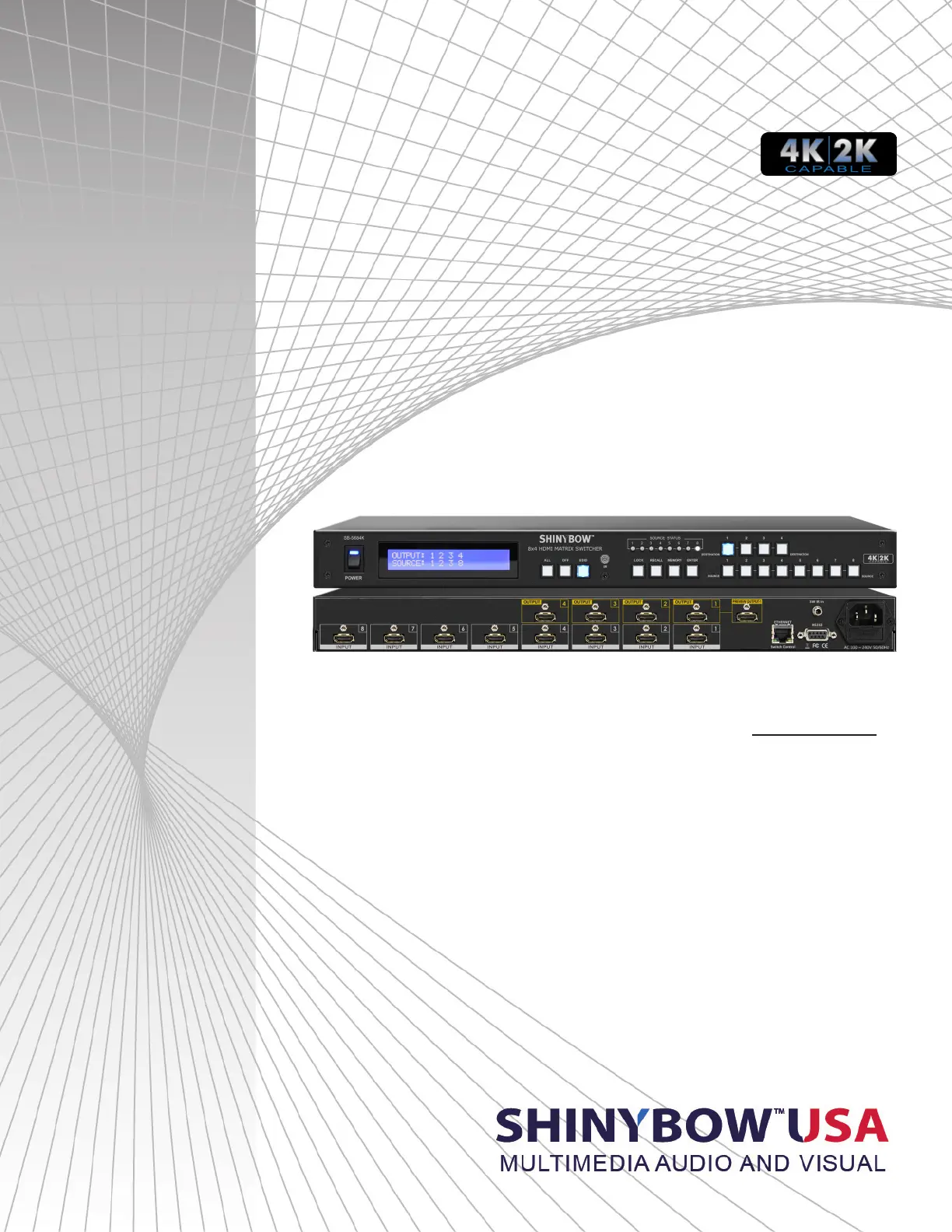

SB-5684K
8x4 HDMI Matrix Routing Switcher
INSTRUCTION MANUAL
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking Post
replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws
without installing the HDMI Locking Post replacement screws will void your warranty.
SAFETY INFORMATION
1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment.
Retain all documentation for future reference.
2. Follow all instructions printed on unit chassis for proper operation.
3. To reduce the risk of re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.
4. Make sure power outlets conform to the power requirements listed on the back of the unit. Keep unit protected from rain, water and
excessive moisture.
5. Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Dust with a clean dry cloth.
6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience
receptacles, and the point where they exit from the appliance.
7. Do not force switched or external connections in any way. They should all connect easily, without needing to be forced.
8. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken so that the
means of grounding of a piece of equipment is not defeated.
9. AC voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper AC
voltage is not covered by any warranty.
10. Turn power off and disconnect unit from AC current before making connections.
11. Never hold a power switch in the “ON” position.
12. This unit should be installed in a cool dry place, away from sources of excessive heat, vibration, dust, moisture and cold. Do not use
the unit near stoves, heat registers, radiators, or other heat producing devices.
13. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may impede the normal
ow of air around the unit, such as a bed, rug, carpet, or completely enclosed rack. If the unit is used in an extremely dusty or smoky
environment, the unit should be periodically “blown free” of foreign dust and matter.
14. To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside. Refer all servicing to
qualied service personnel. There are no user serviceable parts inside.
15. When moving the unit, disconnect input ports rst, then remove the power cable; nally, disconnect the interconnecting cables to
other devices.
16. Do not drive the inputs with a signal level greater than that required to drive equipment to full output.
17. The equipment power cord should be unplugged from the outlet when left unused for a long period of time.
18. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit,
use only the original factory packing.
19. Service Information Equipment should be serviced by qualied service personnel when:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the equipment.
C. The equipment has been exposed to rain.
D. The equipment does not appear to operate normally, or exhibits a marked change in performance.
E. The equipment has been dropped, or the enclosure damaged.
THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL.
CONTENTS
INTRODUCTION .............................................................. 1
FEATURES & CONTENTS............................................... 2
SPECIFICATIONS ............................................................3
FRONT PANEL ................................................................4
BACK PANEL ..................................................................7
REMOTE CONTROL ......................................................8
RS-232 / ETHERNET SERIAL INTERFACE ..................10
EDID FUNCTIONS .........................................................11
IR EXTENDER ...............................................................15
TYPICAL APPLICATION ...............................................16
INTRODUCTION
The SB-5684K is a professional 8x4 matrix routing switch.
Supporting (8) HDMI Inputs and (4) HDMI outputs with (1)
Preview output. The SB-5684K is based on HDMI standards and
supports full resolution HDMI video with (7) embedded EDID
so there is no signal degradation. High Denition digital signals
can be selected and distributed from any of the (8) Inputs to the
(4) Outputs +(1) Preview Output. The switcher is fully CEC and
HDCP 1.3 certied with HDMI 1.4a, 4K2K@30Hz, DVI 1.0, 3D
formats. Wide frequency range of 25MHz~340 MHz for full HD
and supports UXGA/WUXGA/DVI 1920x1200 resolutions to any
HD display. The SB-5684K has (1) HDMI connector per Input,
effectively making this an (8) In by (4+1) Out switcher. The EDID
management can be selected between (7) different modes.
Control is provided via front panel push buttons, IR remote, RS-
232 or TCP/IP (not a web-browser). A RS-232 Windows GUI
interface is provided for matrix routing control (Windows only).
1
4K2K HDMI MATRIX SWITCHER SERIES
Thank you for purchasing the SB-5684K 4K2K HDMI Matrix Routing Switch. You will nd this unit easy to install and highly
reliable but it is essential that you read this manual thoroughly before attempting to use the 8x4 4K2K HDMI matrix switcher.
TABLE OF CONTENTS
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the
PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. We assume no responsibility for any
infringements of patents or other rights of third parties which may
result from its use.
We assume no responsibility for any inaccuracies that may be
contained in this document. We make no commitment to update
or to keep current the information contained in this document.
We reserve the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means
— electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise — without express written permission and consent.
© Copyright 2017. All Rights Reserved.
Version 1.3 SEPT 2017
5684K-20150822-002
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may
be trademarks of the companies with which they are associated.
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the
provided HDMI Locking Post replacement screws to keep
the internal HDMI jack secure. Removing the HDMI screws
without installing the HDMI Locking Post replacement
screws will void your warranty.
LOOK A PUPPY!! NOW READ THIS!!
