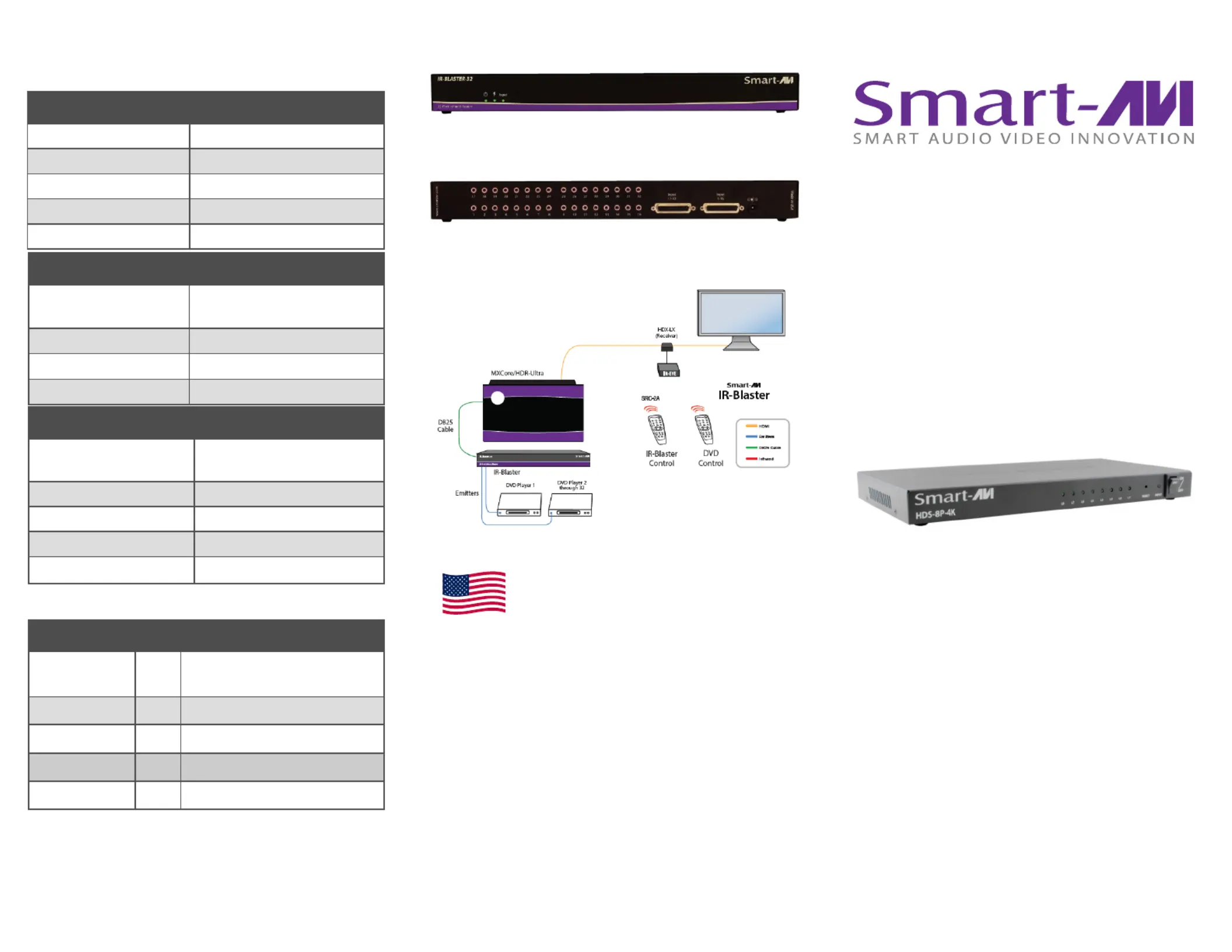

Sida 1/2
IR EYE INPUT
IR Frequency Range 30KHz to 80KHz
Capture Distance Up to 30’
Cable Connector 3.5mm mono jack
IR Signal Indicator Green LED
Signal Type TTI
TECHNICAL SPECIFICATIONS
IR EMITTER OUTPUT
IR Frequency Range 30KHz to 80KHz
Emitter Distance Up to 25’
Cable Connector 3.5mm stereo jack
IR Signal Indicator Green LED
800.AVI.2131
Tel: (818) 503- 6200
Fax: (818) 503- 6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
Designed and Manufactured in the USA
OTHER
Power 12VDC2A
Cable Link Db25 to matrixes
Dimensions 17” W x 3.75” H x 1.75” D
Approvals UL, CE, ROHS Compliant
Weight 5lbs
PART NO. QTY DESCRIPTION
IRB- -32PS 1 IR Blaster, 32-Port IR Router MXU
SM-MXU-EYE 1 External Infrared Receiver
SRC- 1 IR Remote Control 2A
PS5VDC4A 1 Power Supply
User Manual 1
WHAT’S IN THE BOX 32-Port IR Matrix Router
IR-Blaster
User Manual
IR-BLASTER FRONT
IR-BLASTER REAR
IR-BLASTER DIAGRAM
CONNECTING THE IR-BLASTER
1. Connect IR-Blaster to a SmartAVI video matrix via one DB25 cable
2. Connect IR-Blaster to power source
3. Press the On/Off switch to activate the IR-Blaster
4. Turn on your connected signal sources
5. When the IR- Blaster’s status LED turns green, you may commence IR signal operation.
CONTROLLING THE IR-BLASTER
IR-EYE External Receiver
The IR-EYE external receiver offers infrared remote
control functionality at distances up to 30 feet.
Switch between signals without ever having to
touch the matrix itself.
IR-Remote Control
Paired with the IR-EYE receiver, the SmartAVI IR-
Remote Control offers matrix command capabilities,
as well as fully-functional HDTV and connected de-
vice control.
LED Status Indicator
Green
Green
Green
GreenGreen: Signal Active
Red
Red
Red
RedRed: Signal Interrupted/Disconnected
Orange
Orange
Orange
OrangeOrange: Damaged Signal
Flashing
Flashing
Flashing
FlashingFlashing: Acquiring signal/standby
INSTALLATION DIAGRAM
IR-BLASTER FRONT
IR-BLASTER REAR
