The USB-100 extends USB up to 275ft from the
computer using a single un-shielded CAT5 cable.
USB100
www.smartavi.com
User Manual
2840 N. Naomi Ave.
Burbank, California 91504
Phone: (818) 565-0011
Facsimile: (818) 565-0020
Technical Specifications
USB-100 Specifications
CAT5 (UTP) Maximum range 275ft (85m)
USB Data Data Rate of 12Mbps
Compatible with USB version 1.1
USB Connectors USB-TX100 Type A
USB-TX100 Type B
Power 5V DC@1A Internal
Dimensions (inches) 3.375” x 2.375” x 1”
Weight 0.14 lbs
S M A R T A U D I O V I D E O I N N O V A T I O N
Qty Description Part Number
1 USB-100 Transmitter USB-TX100
1 USB-100 Receiver USB-RX100
1 6’ USB A-B Cable CCUSBAB06
The USB-100 extends USB up to 275ft using a single
unshielded CAT5 cable with data rates up to 12Mbps.
Introduction
Extends USB port up to 275 feet from the •
computer.
Uses easy to install, inexpensive CAT5.•
Fully compliant with USB 1.1 specifications.•
Supports 1.5 and 12 Mbps data rate.•
Uses a single CAT5 UTP cable between transmitter •
and receiver.
Bus powered transmitter unit•
Fully transparent (does not use any emulation).•
Compact size.•
Supports MAC, PC and SUN.•
Plug and play.•
Features
What’s in the box?
USB-100
Please check the contents of the package before
beginning installation.
Installation and Operation

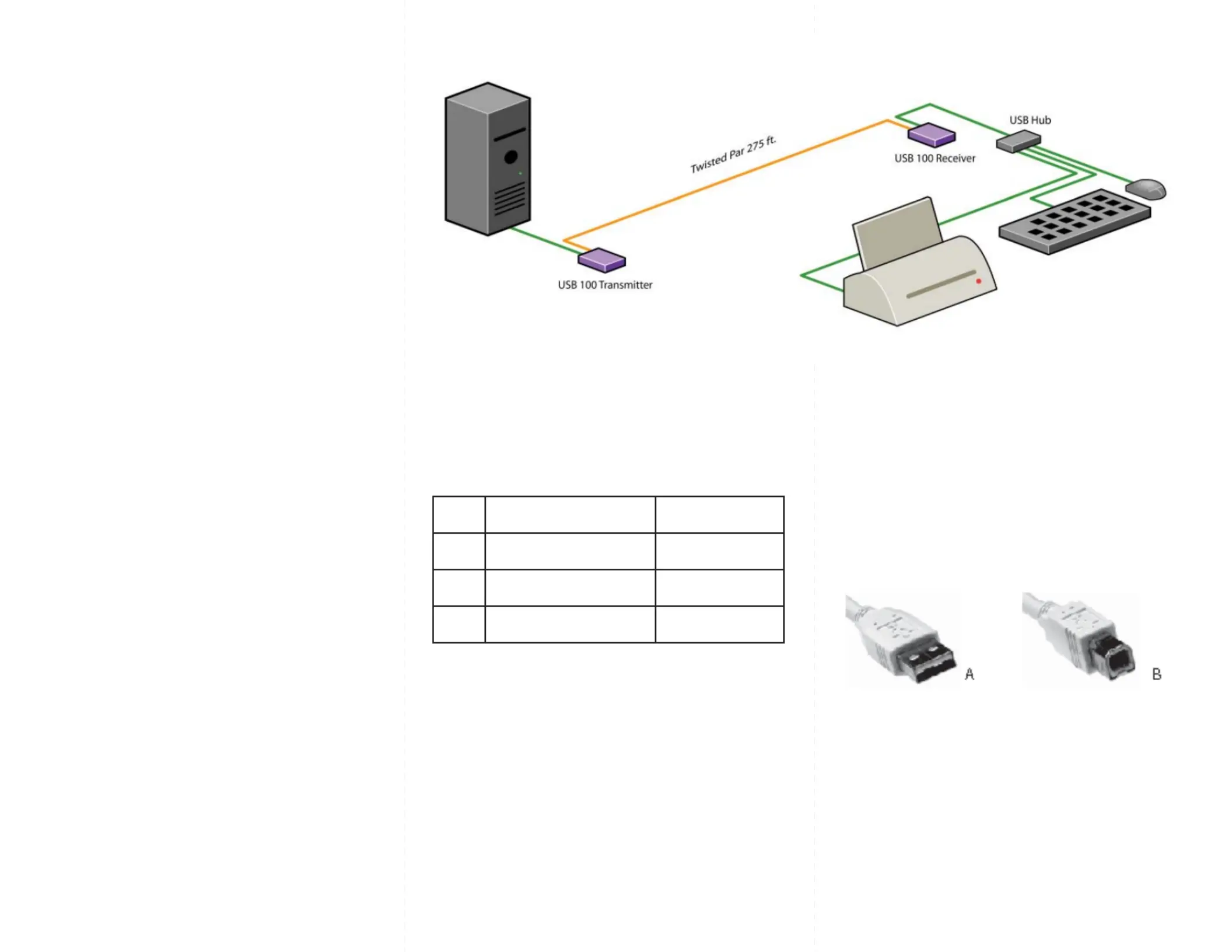

Connecting the Transmitter
1. Connect the transmitter to the host using the A-B
USB cable (included with the unit).
2. The A side of the connector would go to the com-
puter host and the B side would be connected to
the transmitter.
Note: You must connect the included USB-Hub to the
receiver unit for the system to work properly.
3. Connect the receiver to the peripheral device using
the included USB-Hub.
4. Join the USB-100 units using standard CAT5 UTP
cable.
Note:
The receiver provides remote power up to 500
mA to the connected peripherals. This power comes
from the host computer and is passed by the transmitter
to the receiver. In some applications, and external power
supply is required. SmartAVI can provide a power supply
for such cases with the receiver and transmitter units.
(optional)
