LED Product Information and Warnings
Important
• Always disconnect the power before installing or replacing bulbs and before cleaning or other maintenance.
• Consult a qualied, licensed electrician to ensure correct branch circuit conductor.
• Please read all included assembly instructions and warnings carefully before installation. Contact
Customer Service if you have any questions or concerns. Before installation, please conrm that the xture
is compatible with your supply voltage and dimming system, if present.
• LEDs are highly sensitive electronic devices, and must be treated with care. Do not open any factory
sealed compartments, and avoid touching the LEDs with your hands or any object.
• Although all our xtures are equipped with protective devices, LED xtures are vulnerable to power surges
and supply variations. Do not install LED xtures on the same circuit as any motors, appliances, or HVAC
systems.
• Do not remove or bypass any LED Driver or Transformer that is provided with the xture, and do not
replace or substitute with another power supply.
• Remote LED Driver or Transformer installation must be done by a licensed electrician and in accordance
with local codes. Remote installations should be in an accessible location, as close to the xture as possible.
• Fixtures must be wired in parallel on independent leads; do not "daisy chain" multiple xtures together or
wire them in series.
• All factory-made splices and connections must remain intact. LED circuits are carefully designed and built,
and improper connections may damage the xture.
• The ends of coaxial pendant cords have been precisely stripped and split at the factory and must not be
eld cut. Excess cord or cable should be neatly coiled and reserved in the xture canopy.
• Any mounting hardware is provided for your convenience and should be used with discretion. Always use
the appropriate hardware for the mounting surface.
March 7, 2016
©2016 SONNEMAN - A WAY OF LIGHT 2 of 2
Assembly Instructions
INSTRUCTIONS D’INSTALLATION
Stix Plus Series - 4ft. LED Wall Bar, 5ft. LED Wall Bar, 6ft. LED Wall Bar, 8ft. LED Wall Bar
Important
• Always disconnect the power before installing or replacing bulbs and before cleaning or other maintenance.
• Consult a qualied, licensed electrician to ensure correct branch circuit conductor.
Consulter un électricien qualié pour vous assurer que les conducteurs de la dérivation sont adéquats.
1. Shut o power to the branch circuit conductor.
2. The LED transformer (A) must be installed in a remote and accessible location near the xture in accordance with local
electrical code (Fig. 1). You must use the appropriate wire gauge from the transformer to the xture to limit the voltage drop
to less than 5%. Make appropriate electrical connections using wire nuts:
a. Connect the LED transformer’s live wire (black) to the live supply wire.
b. Connect the LED transformer’s neutral wire (white) to the neutral supply wire.
3. Drill a small hole (B) in the wall behind the xture (C) and pull the low voltage transformer output wires through the wall.
4. Make appropriate electrical connections using wire nuts: Connect one of the xture wires to one of the transformer output
wires. Connect the other xture wire to the second transformer output wire. Carefully push connections and extra wires
back through the hole (B) in the wall.
5. Remove diuser (D) from xture (C). Attach the xture to the wall with anchors (E) and screws (F) through the holes in the
xture. Snap the diuser back into the xture.
6. Restore power to the branch circuit conductor.
Note
• This xture is dimmable with Electronic Low Voltage (Trailing-Edge) type dimmers only.
Care Instructions
• Dusting: Use a clean, dry cloth.
• Cleaning: To protect the nish, avoid any harsh abrasives or chemicals.
2790, 2791, 2792, 2794
E
F
D
C
B
A

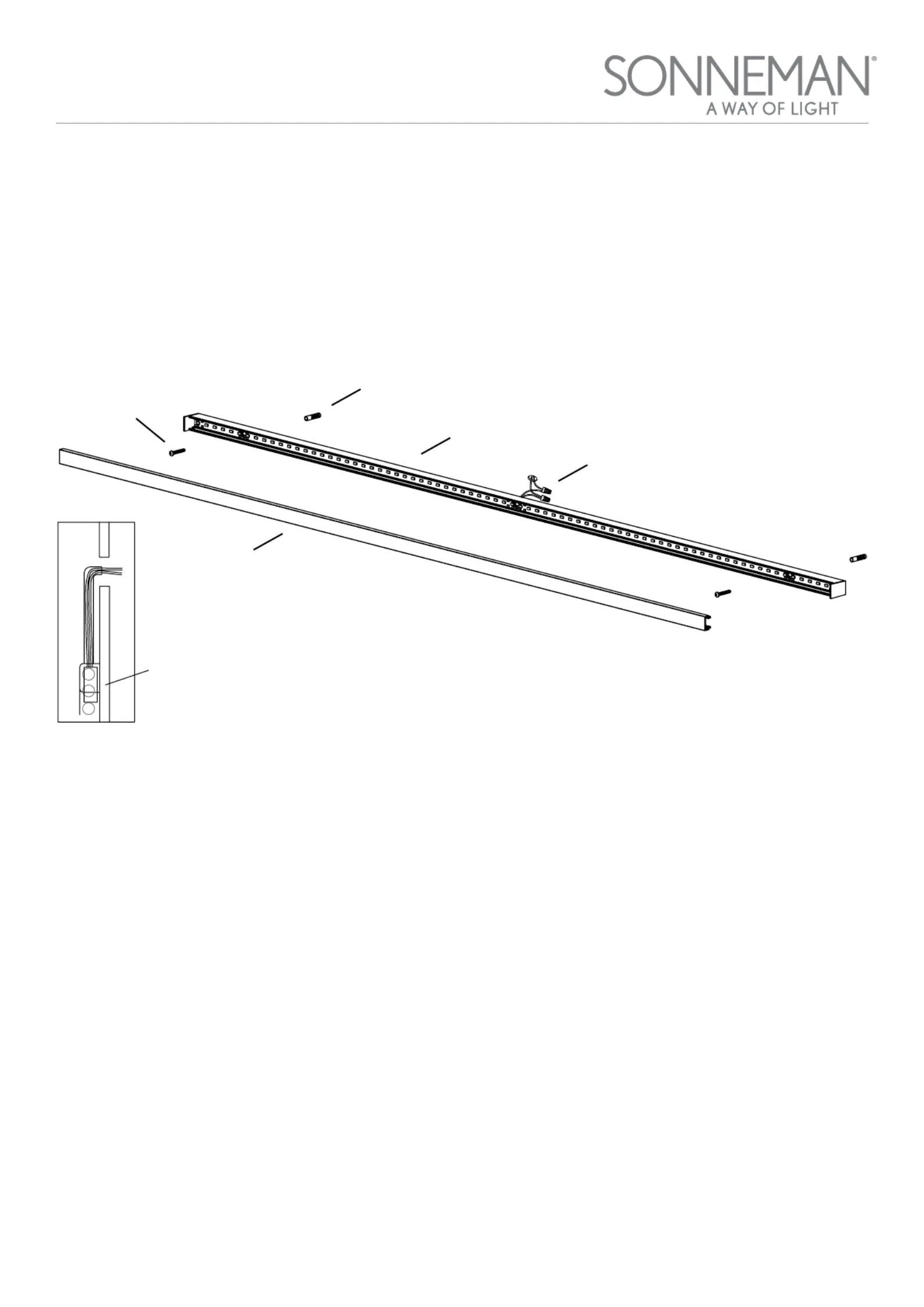

Fig. 1
