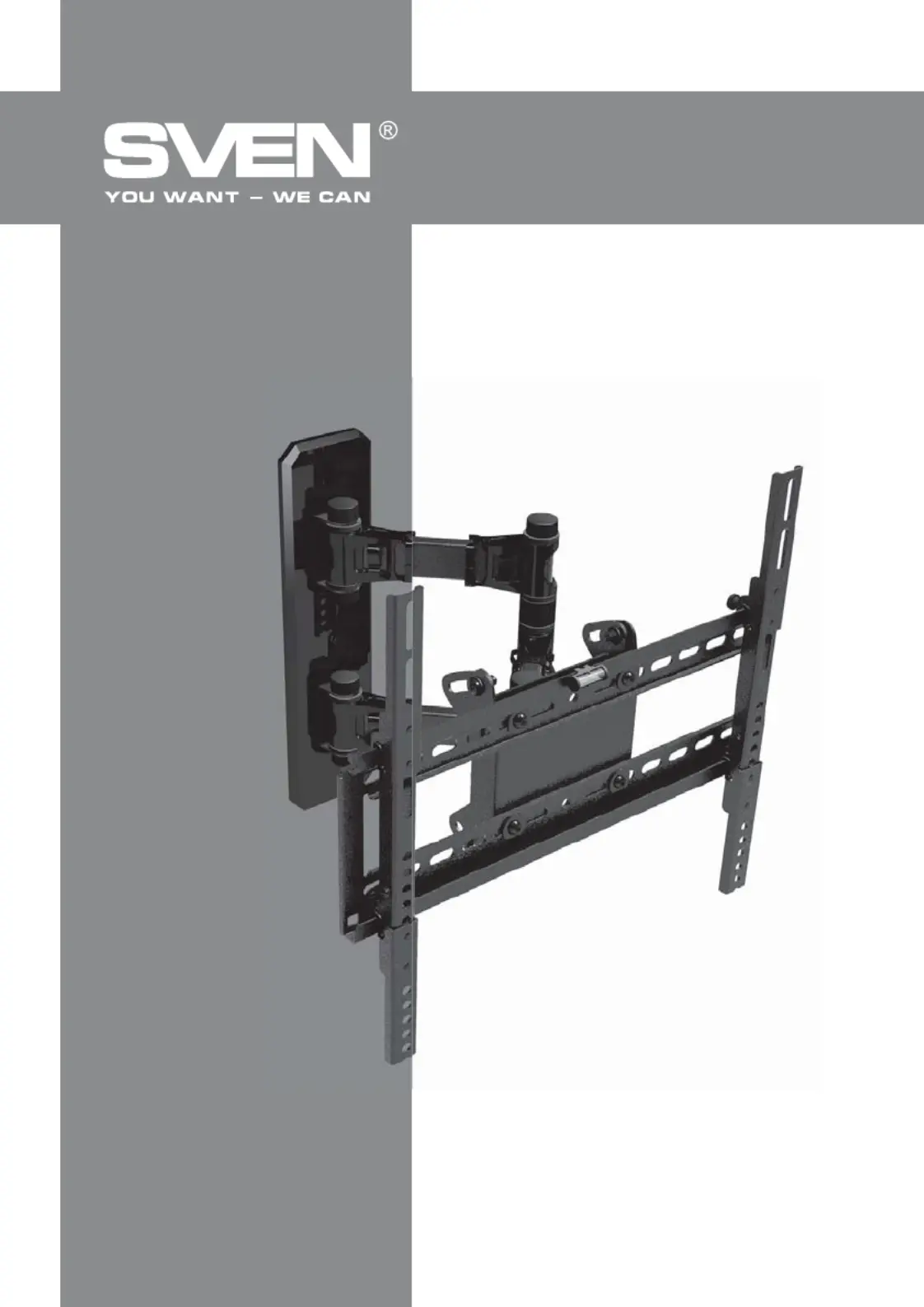

USER’S MANUAL
www.sven.fi
C81-44
Wall Mount for LED/LCD/Plasma
TVs and Monitors
1
ENG
CONTENTS
1. BUYER RECOMMENDATIONS . . .................... .................... .. .. .... ..
. . ...... ...
2. APPLICATION . . . ............ .. ....... . ... .. ...................................... .. .. .... .. ..
3. SAFETY PRECAUTIONS ... .. .. ..... . .................... .... .. ... ...... ........ ....
..........
4. SPECIAL FEATURES ..... . . . . . . ...... ............................ .. .. .. .... .... .. .........
........
5. P AG CONTENTS ..................................................................ACK E
...... ......
6. MOUNTING AND INSTALLATION... . . . . . ................................ .. .. .. .... ..
.. ......
7. TECHNICAL SPECIFICATIONS ... .. .... ..... . . . ...... .. ... ... .. ........ .......
..... . .... ...
1
2
2
2
2
3
5
Congratulations on your purchase of the Sven wall mount!
COPYRIGHT
© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted e orts to make this Manual more exact, some discrepancies may occur. The ff
information in this Manual is given on «as is» terms. The author and the publisher do not bear any
liability to a person or an organization for loss or damage which has arisen from the information
contained in this Manual.
1. BUYER RECOMMENDATIONS
• Unpack the device carefully. Make sure there are no accessories left in the box. Check up the
device for damage; if the product was damaged during transportation, address the which firm
carried out the delivery; if the product functions incorrectly, address the dealer at once.
• Check up the package contents and availability of the warranty card. Make sure the warranty card
has a shop stamp, a legible signature or the seller’s stamp and purchase date, and the number of
the wall mount corresponds to that in the warranty card. Remember: in case of warranty card loss
or discrepancy of numbers you forfeit the right for warranty repairs.
• Before installing and using the wall mount, read this Manual carefully.
Technical support is on www .sven.fi
Wall Mount for LED/LCD/Plasma
TVs and Monitors
2
ENG
C81-44
User’s Manual
2. APPLICATION
С81-44 is designed for wall-mounting LED/LCD/Plasma TV sets and monitors.
3. SAFETY PRECAUTIONS
• Do not exceed the maximum load speci ed in the Manual to avoid accidents or damage.fi
• Before installing the wall mount, read this Manual carefully and follow all the instructions when
installing. To ensure safe and reliable mounting, it’s recommended that installation be done by
quali ed specialists.fi
• Position your mount away from internal electric wires, water and gas pipes and other dangerous
objects.
• Install the mount on walls of solid brick, concrete, wood or other material providing equivalent
support.
• When installing the mount on a wooden wall, drill the holes as close as possible to the center of
the board to provide secure support.
• Fasten the screws until they are xed. Do not use electric tools for this purpose.fi
• For safety reasons, do not install the wall mount alone.
4. SPECIAL FEATURES
• VESA: 100 × 100/200 × 200/300 × 300/
400 × 400 mm
• Diagonal compatibility: 26" – 55"/
66 – 140 cm
• Level included
• -5° to +15° adjustable tilt angle
• Horizontal adjustment -3° to +3°
• Swivel angle: ~ ±90°
• Easy installation and mounting
• High-strength polymer coating
• Security locks
• Guides for cable mounting
5. PACKAGE CONTENTS
• Mount — 1 pc
• Mounting accessory kit — 1 pack
• User’s manual — 1 pc
• Warranty card — 1 pc
120 ~ 460 mm100 × 100 mm
200 × 200 mm
300 × 300 mm
400 × 400 mm
26" – 55"
66 – 140 cm
M4×12 M5×12 M6×12 M8×12
M4×25 M5×25 M6×25 M8×25
4 pcs 4 pcs 4 pcs 4 pcs
4 pcs 4 pcs 4 pcs 4 pcs
Ø Ø Ø Ø Ø24 × 9 5 × 6 × 8 ST8X50
4 pcs 4 pcs 4 pcs 4 pcs 4 pcs 4 pcs
Components and Accessory Kit
O
1 pc
